99.5-63-M8

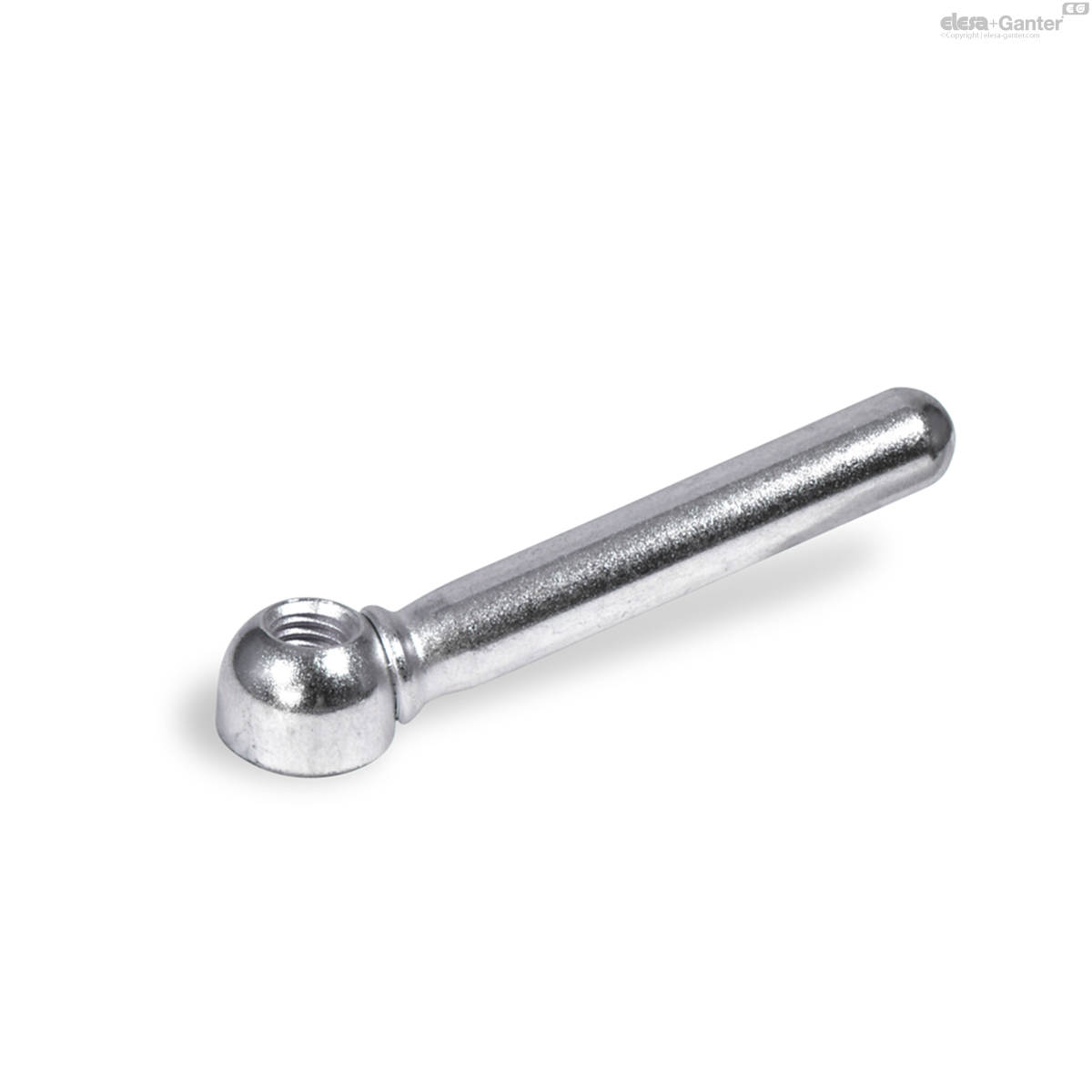

GN 99.5 Clamp Nuts
Eta: 1-2 weeks All sizes and variants of GN 99.5
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet

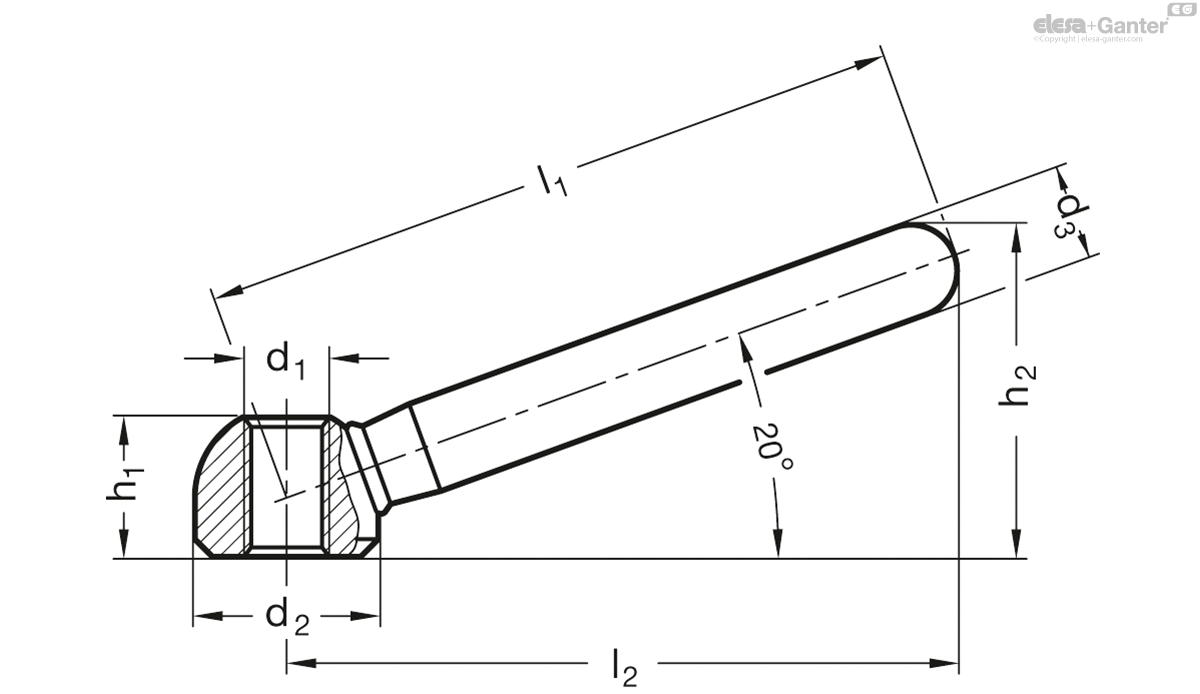

Technical data
- Catalogue
- GN 99.5-63-M8
- l1
- 63
- d1
- M 8
- d2
- 16
- d3
- 10
- h1
- 12.5
- h2 ≈
- 30.5
- l2 ≈
- 60
- 39
Steel
zinc plated, blue passivated
Shaft butt-welded to nut
