992-D45-M16 GN 992 Insert bushings

992-D45-M16

GN 992 Insert bushings

Aluminium / for round tube and square tube
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 992

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 992-D45-M16
d1
D 45
d2
M 16
l1
45.5
l2
2.5
l3 +0.5
30
w
3
For tube
GN 990
D 45
110

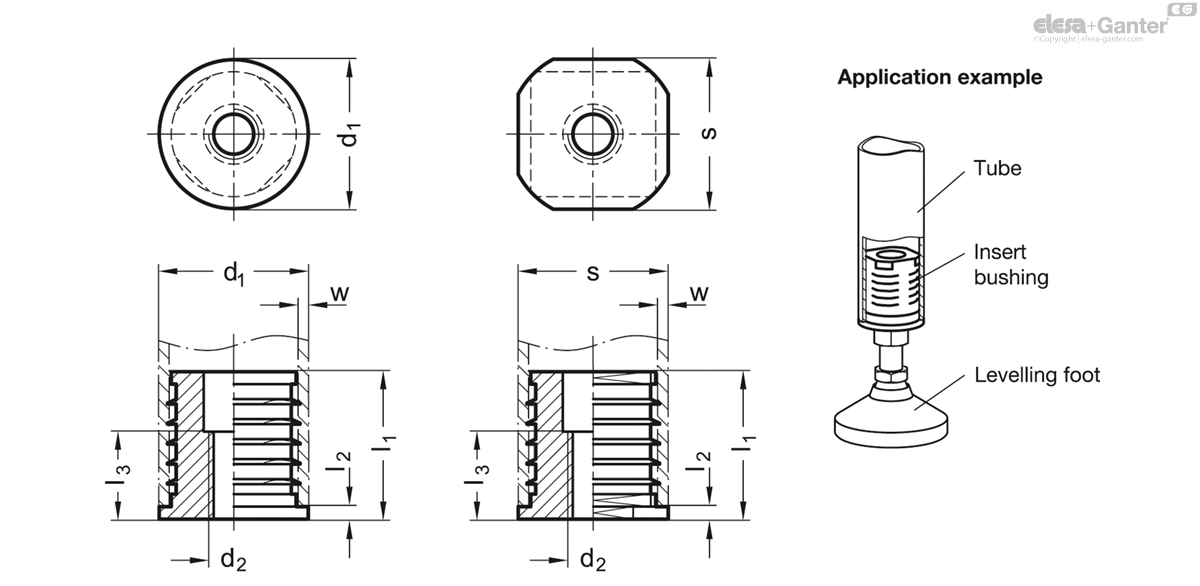

992-D45-M16 drawing

Aluminium

blank

Drive the insert bushings GN 992 in by using a soft-head mallet. Their lamellas bridge a production tolerance of the internal diameter or of the internal square of ±0.5 mm, allowing screws to be mounted in tubes.

The dimensions match those of the construction tubes GN 990 , but checking the tolerance position of the tube is recommended.
