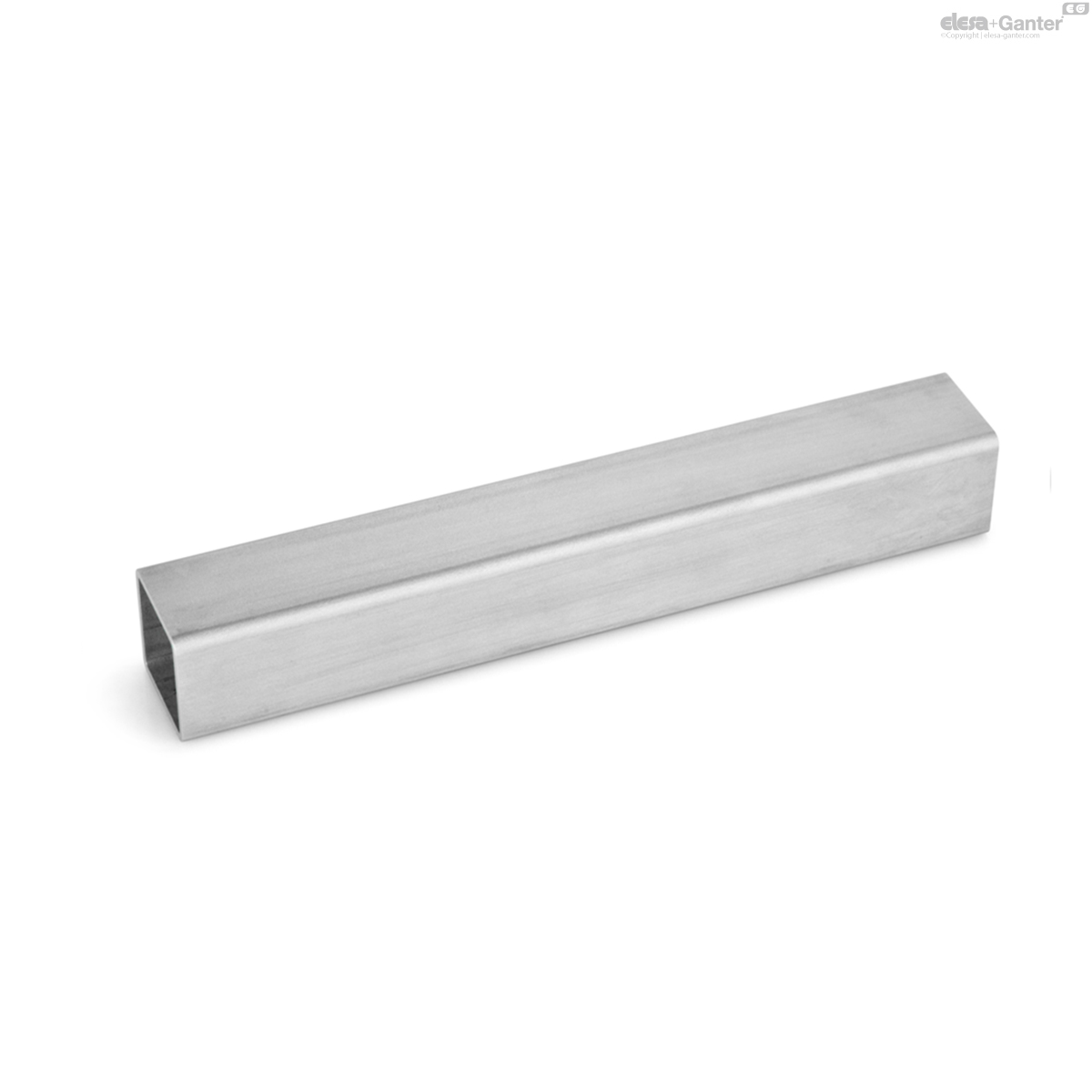

990-NI-V40-2000-BL
GN 990-NI Stainless Steel
Aluminum / Stainless Steel, for Tube Clamp Connectors
Eta: 1-2 weeks All sizes and variants of GN 990
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account

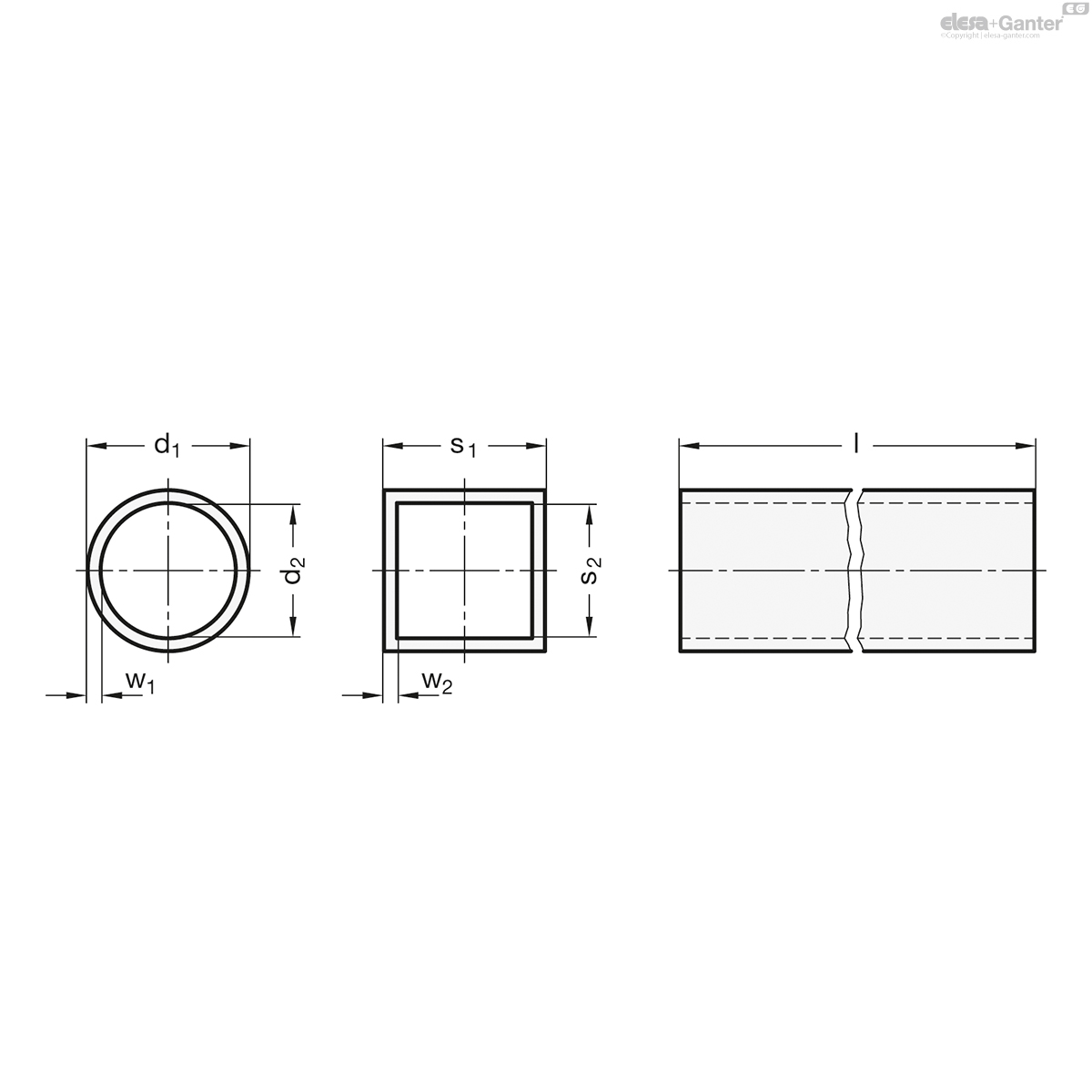

Technical datasheet
Technical data
- Catalogue
- GN 990-NI-V40-2000-BL
- s1 Square
- V 40
- Length l ±0.5
- 2000
- s2
- 34
- w2
- 3
- 6700
* only available for diameter D40
Version in Aluminum
Aluminum AL
Anodized, natural color EL
Version in Stainless Steel
Stainless steel AISI 304 NI
Plain finish BL
Untreated
Sawed cross sections deburred blank, i.e. not surface treated.
Construction tubes GN 990 can be supplied in these standard lengths.
The tolerances specified for the outside diameter of the round construction tubes comply with the requirements for split mono-block connector clamps. Two-piece connector clamps allow obviously larger tolerances on construction tubes.
- Further lengths
