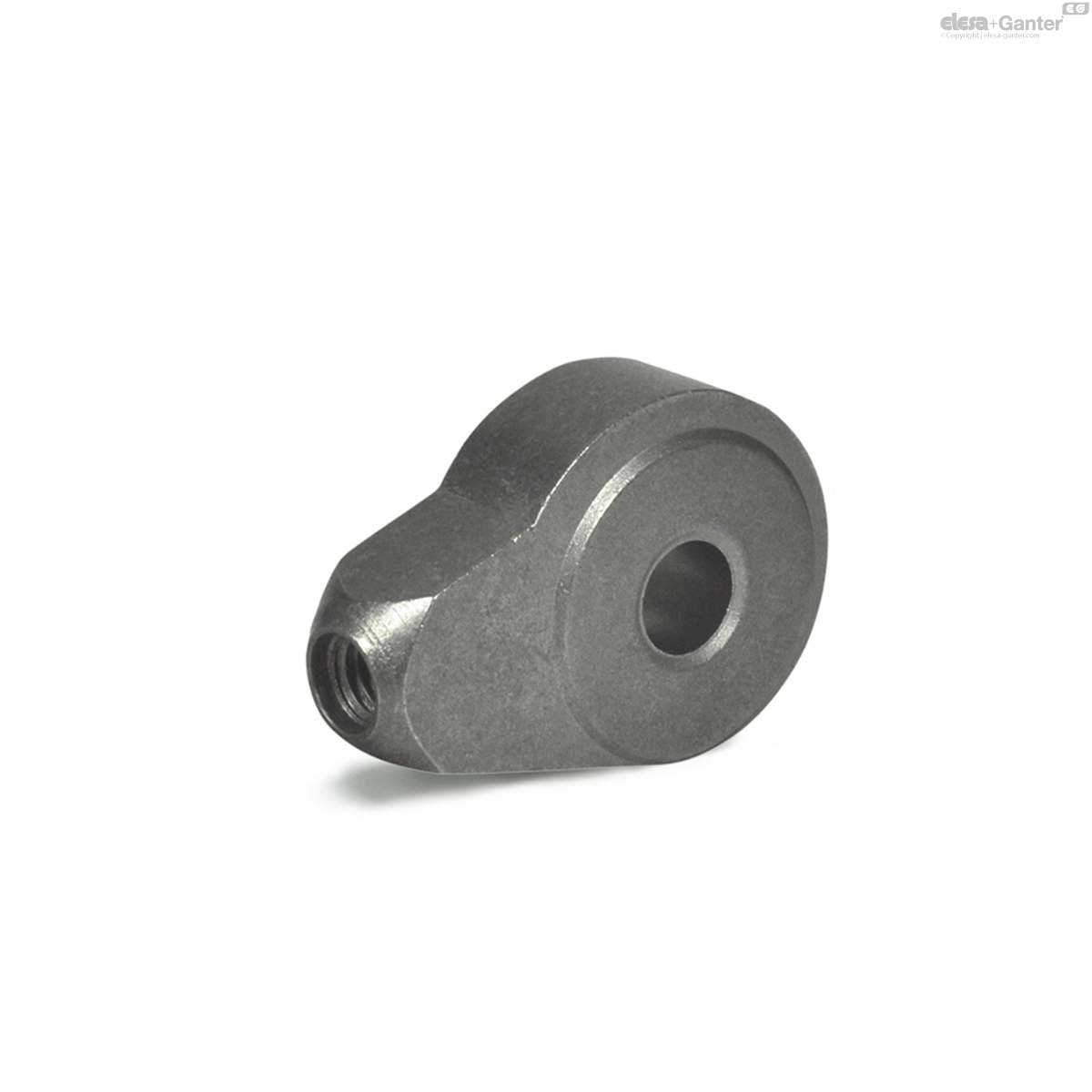

919-30-B10 GN 919 Hubs with Eccentrical Cam

919-30-B10

GN 919 Hubs with Eccentrical Cam

Steel
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 919

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 919-30-B10
d1
30
d2 H9
B 10
b1 -0.05/-0.15
15
b2
13
d3
M 8
d4
10
l
32
r1
15
r2
16.65
r3
18.3
r4
19.12
s
4.1
t min.
12
100

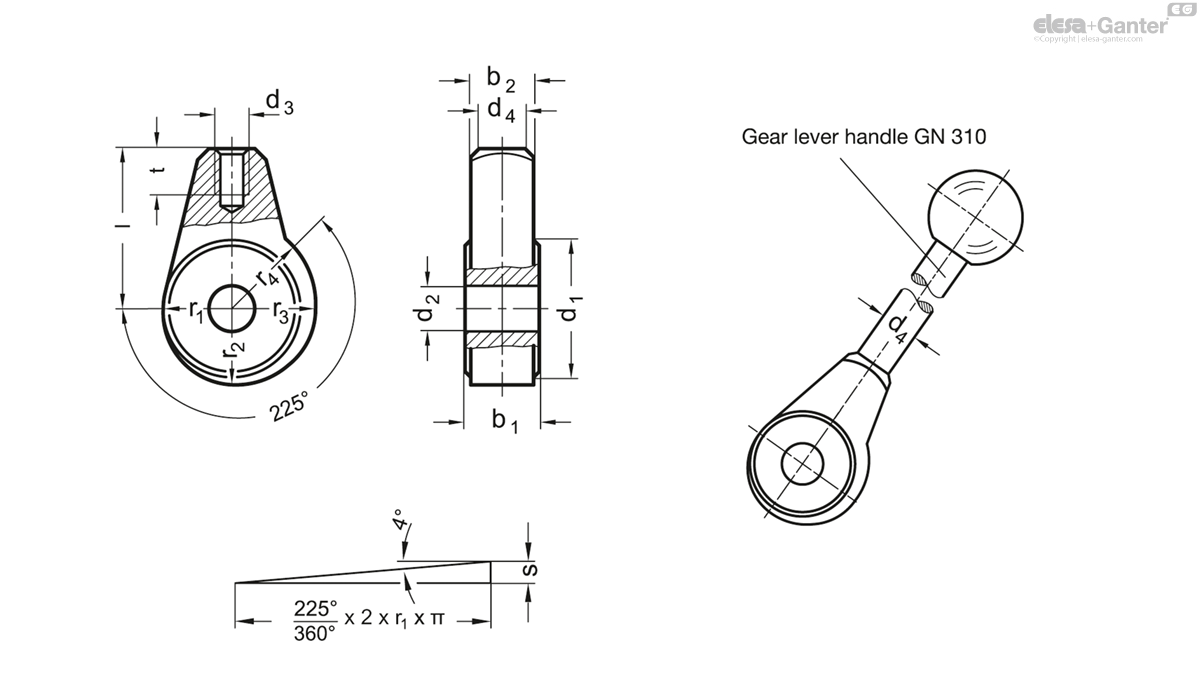

919-30-B10 drawing

Steel

  • Sintered
  • Case-hardened
  • EHT 0.2 to 0.4 mm
  • Plain

Hubs with eccentrical cam GN 919 are used for adjusting and clamping operations. As a rule these are fitted with a gear lever handle GN 310.

The cam offers the advantage that the clamping force remains constant in every position of its travel. In addition the cam is self locking.

Cylinder head shoulder bolts GN 732.1 can be used as bearing pins.

  • GN 310 Gear Lever Handles (Steel / Stainless Steel)
  • GN 732.1 Cylinder Head Shoulder Bolts
