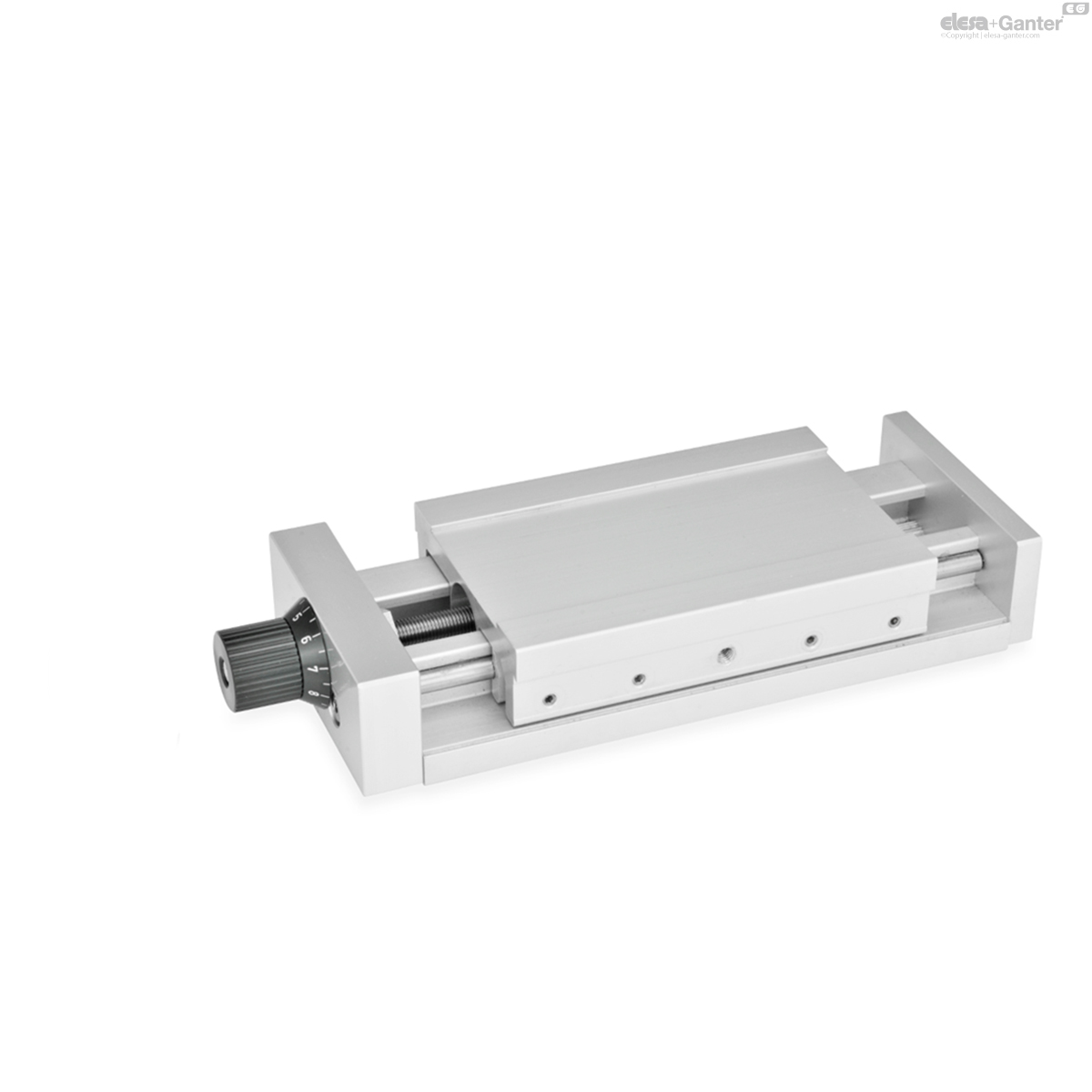

900-80-195-75-D-1 GN 900-D with Control knob

900-80-195-75-D-1

GN 900-D with Control knob

  • RoHS

Eta: 1-2 weeks All sizes and variants of GN 900

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 900-80-195-75-D-1
b
80
l1 - l2
195-75
d1
M8 x 1
d2
M 5
d3
22
d4
80
d5
22
h1
20.5
h2
35.5
h3
36
h4
10
h5
10
h6
51
h7
37
h8
10
l3
120
l4
8
l5
16
l6
24
l7
31
l8
55
l9
27
l10
33
l11
66
l12
25
l13
30
s
50
t
2
1220
900-80-195-75-D-1 drawing

Types

  • Type D: with control knob
  • Type H: with handwheel (from size 50 upwards)
  • Type DN: with control knob and digital position indicator  DD51 (from size 50 upwards)
  • Type DR: with control knob and digital position indicator DD51 (from size 50 upwards)
  • Type HN: with handwheel and digital position indicator DD51 (from size 50 upwards)
  • Type HR: with handwheel and digital position indicator DD51 (from size 50 upwards)
  • Type S: without adjustable spindle and operating element (i. e. for mounting a pneumatic cylinder)

Identification No.

  • No. 1: Without adjustable hand lever
  • No. 2: With adjustable hand lever

Slides / End plates

Aluminum press formed

Anodized extrusion, natural color

Guide shafts

Stainless steel

Drive

  • Lead spindel / Ball bearing
  • Stainless steel
  • Lead nut
  • Plastic

Fixing screws

Stainless steel

Control knob / Scale ring

Aluminum, black anodized

Adjustable slide units GN 900 can be combined with a range of adaptors to give various axis configurations.

These fastening units and connecting sets (GN 900.1, GN 900.2, GN 900.3) can be clamped to the adjustable slide units in a rapid and simple way.

For fine adjustment there is a scale ring graduated in increments of 0.05 mm, with digital position indicator 0.02 mm.

Furthermore this adustable slide units (Type D, with control knob) is rust proof.
