900.3-80-80-P GN 900.3 Connecting sets X-Z

900.3-80-80-P

GN 900.3 Connecting sets X-Z

for adjustable slide units GN 900
  • RoHS

Eta: 1-2 weeks All sizes and variants of GN 900.3

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 900.3-80-80-P
b Size of
the slide
80
l1
80
d1
M 6
d2
M 4
l2
105
l3
52
l4
13
s
12
680

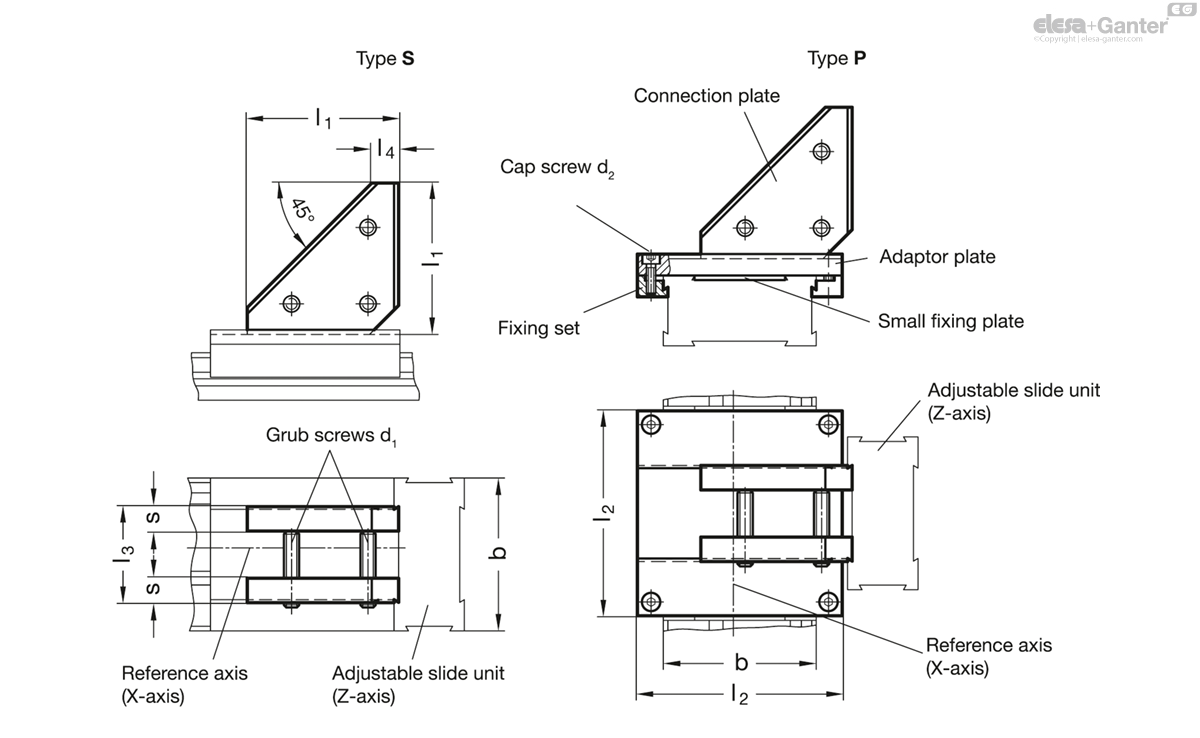

900.3-80-80-P drawing

Types

  • Type P: Mounting the Z-axis via connecting plate and additional plate
  • Type S: Direct mounting of the Z-axis via connecting plate

Aluminium

anodized, natural colour

Grub screw DIN 913

Steel, zinc plated

Socket head cap screws DIN 912

Stainless Steel

With connecting sets GN 900.3 two adjustable slide units  GN 900 can be combined to produce an X-Z axis configuration.

The combination is created by using two connection plates which eliminate any type of fixing holes in the slides. At the same time the adjustable slide unit with the Z-axis can, to a limited extent (vertically to the Z-axis), still be adjusted.

In the case of a slide configuration of the Z-axis parallel to the reference axis (type P) an adaptor plate (complete with a fastening set, small fixing plates and socket head cap screws) is required which is included in the set.

The small fixing plates serves for the 90° alignment of the Z-axis and fine adjustment of the adaptor plate (Type P).

All parts required to make up a set are included.
