900.1-50-67-B
GN 900.1 Fastening units
for adjustable slide units GN 900
Eta: 1-2 weeks All sizes and variants of GN 900.1
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account

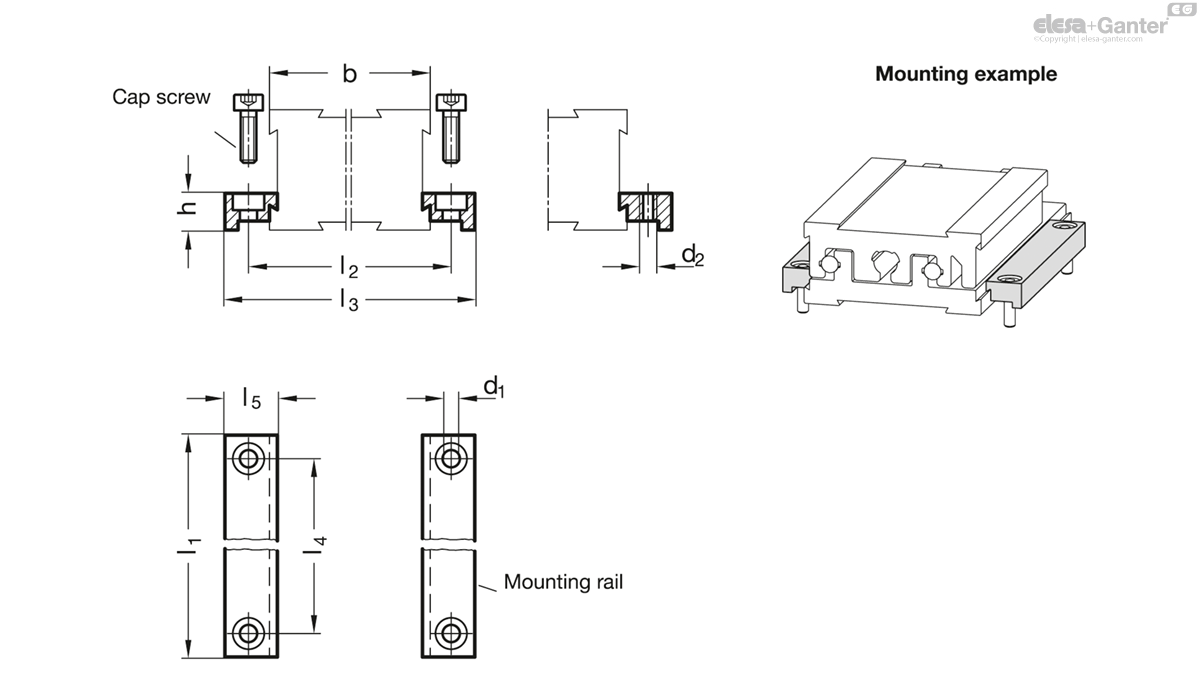

Technical datasheet
Technical data
- Catalogue
- GN 900.1-50-67-B
- b Size of
the slide - 50
- l1
- 67
- d1
- 3.3
- d2
- M 3
- h
- 7
- l2
- 58
- l3
- 67
- l4
- 58
- l5
- 10
- 24
Types
- Type A: with bore for cap screw
- Type B: with threaded bore d2
Aluminium
anodized, natural colour
Socket head cap screw DIN 912
Stainless Steel

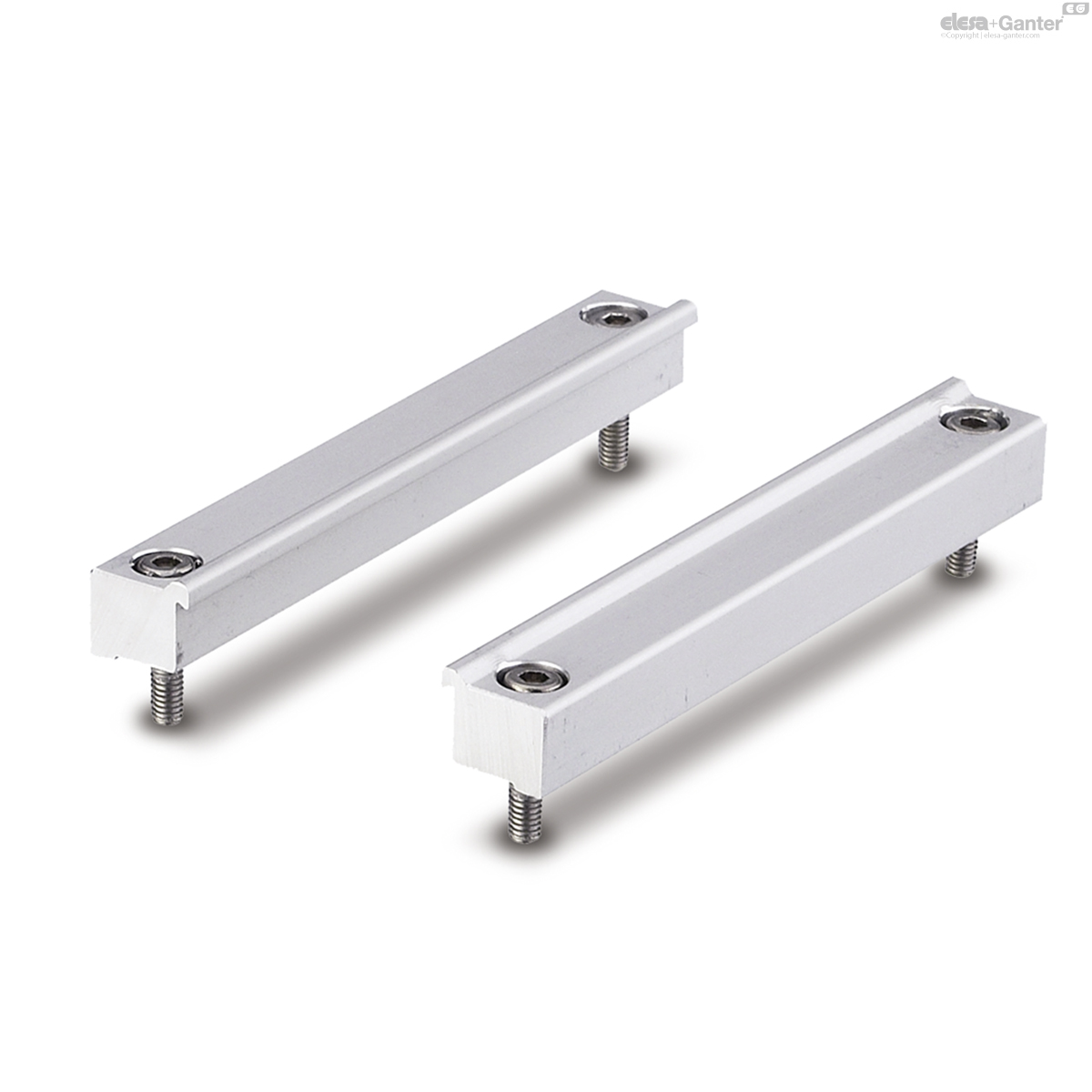

Fastening units GN 900.1 are fitted to the base of the adjustable slide units GN 900 from the operator’s side.
The mounting is made on the outside ledge of the slide so that the inner slide can still be moved.
A fastening unit GN 900.1 consists of two mounting rails. Four Stainless Steel-cap screws are inclueded.
