840-50-ASD
GN 840 Push-pull type toggle clamps
for push-pull clamping
In stock All sizes and variants of GN 840
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account

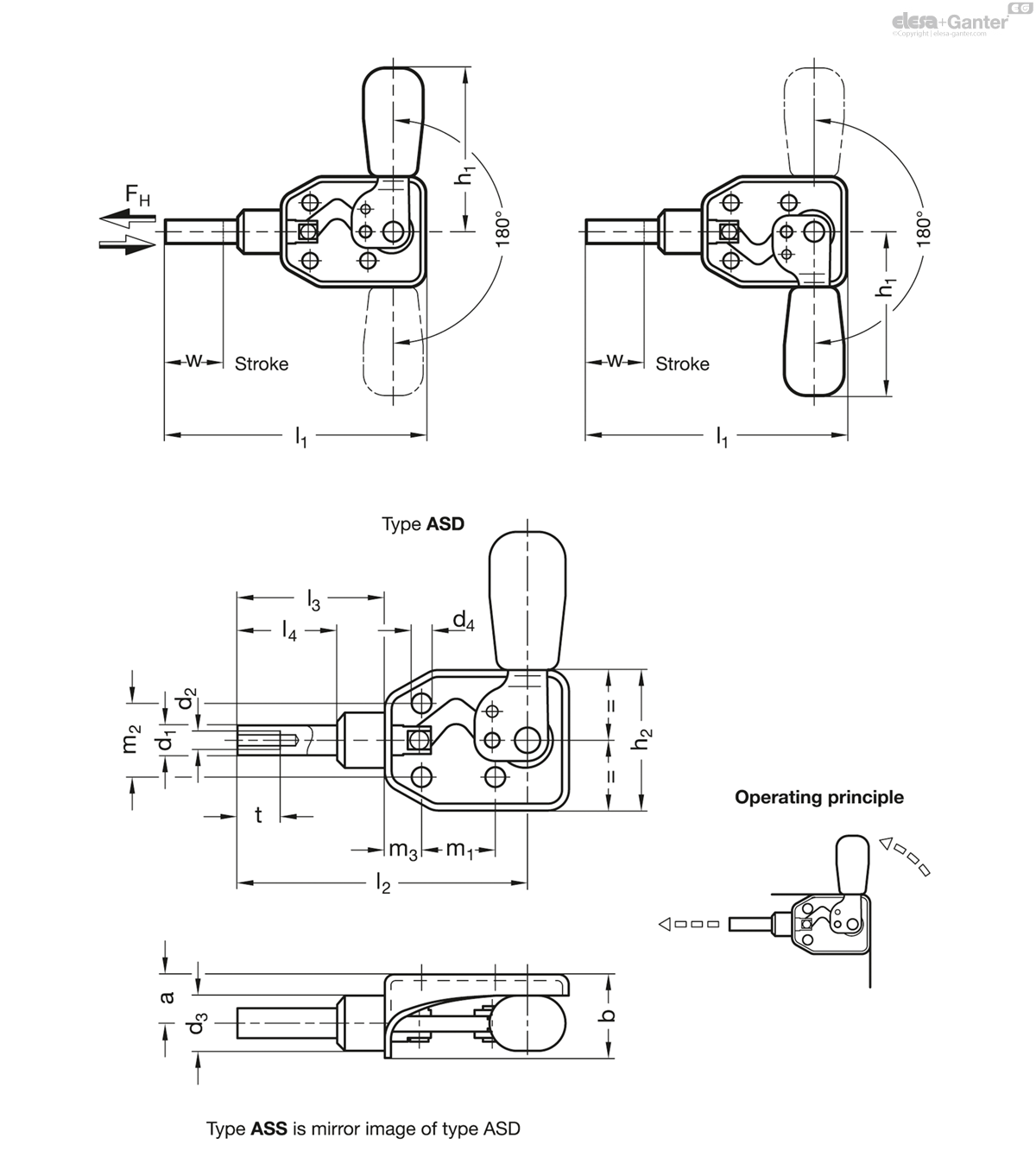

Technical datasheet
Technical data
- Catalogue
- GN 840-50-ASD
- Size
- 50
- FH in N
- 800
- a
- 10
- b
- 17.5
- d1
- 6.5
- d2
- M 4
- d3
- 12
- d4
- 4.3
- h1 ≈
- 45.2
- h2
- 30.5
- l1 ≈
- 73
- l2 ≈
- 64.5
- l3 ≈
- 33
- l4 ≈
- 21
- m1
- 16
- m2
- 16
- m3
- 8
- t min.
- 9
- w
- 16
- 56
Types
- Type ASD: Clamping by turning handle counter-clockwise
- Type ASS: Clamping by turning handle clockwise
Parts in sheet metal
Case-hardened Steel C10
zinc plated, blue passivated
Plunger
Steel St 37
zinc plated, blue passivated
Plunger guide bushing
Steel St 37
zinc plated, blue passivated
All moving parts
lubricated with special grease
Hand grip
High quality, oil resistant red plastic
GN 840 push-pull type toggle clamps are known for their extremely low height regardless of the position of the operating handle.
