GN 813 Heavy duty vertical acting toggle clamps
Eta: 1-2 weeks All sizes and variants of GN 813
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account

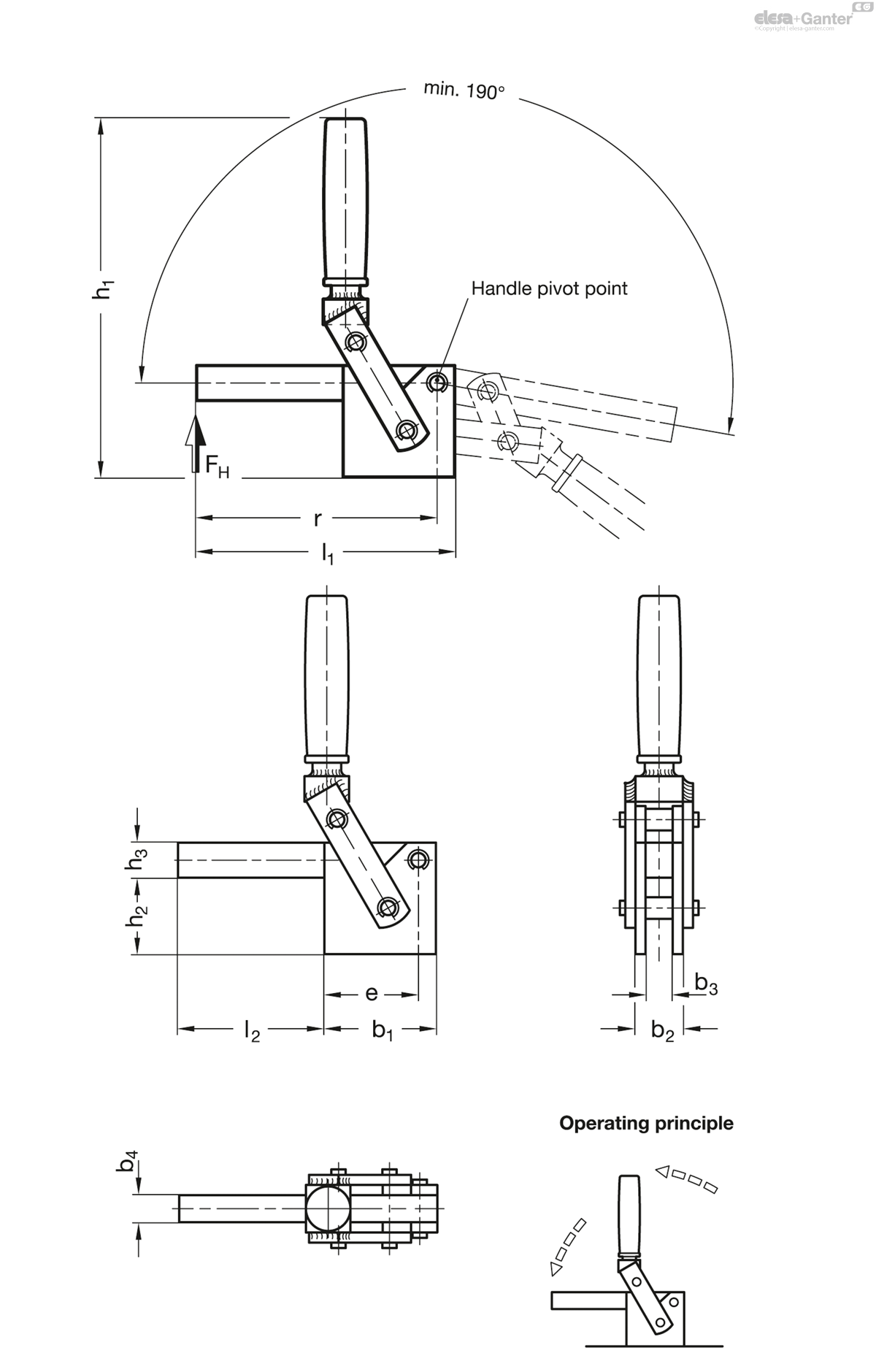

Technical datasheet
Technical data
- Catalogue
- GN 813-3000-F
- Size
- 3000
- FH in N
- 30000
- b1
- 110
- b2
- 45
- b3
- 25
- b4
- 25
- e
- 90
- h1
- 320
- h2
- 80
- h3
- 40
- l1
- 250
- l2
- 140
- r
- 230
- 5500
Type
- Type F: Solid bar version
Bearing pins and clamping lever
Steel St 60
blackened
Other parts
Steel St 37
- weldable
- blackened
Bearing pins and rivets
case-hardened
All moving parts
lubricated with special grease
Hand grip
High quality, oil resistant red plastic
GN 813 vertical acting toggle clamps are used for applications where a very high holding force is required such as closing of foam molds.
These clamps have been designed for easy dismantling: i.e. the bearing pins are locked with circlips.
After dismantling the individual parts, they can be modified to suit individual applications.
