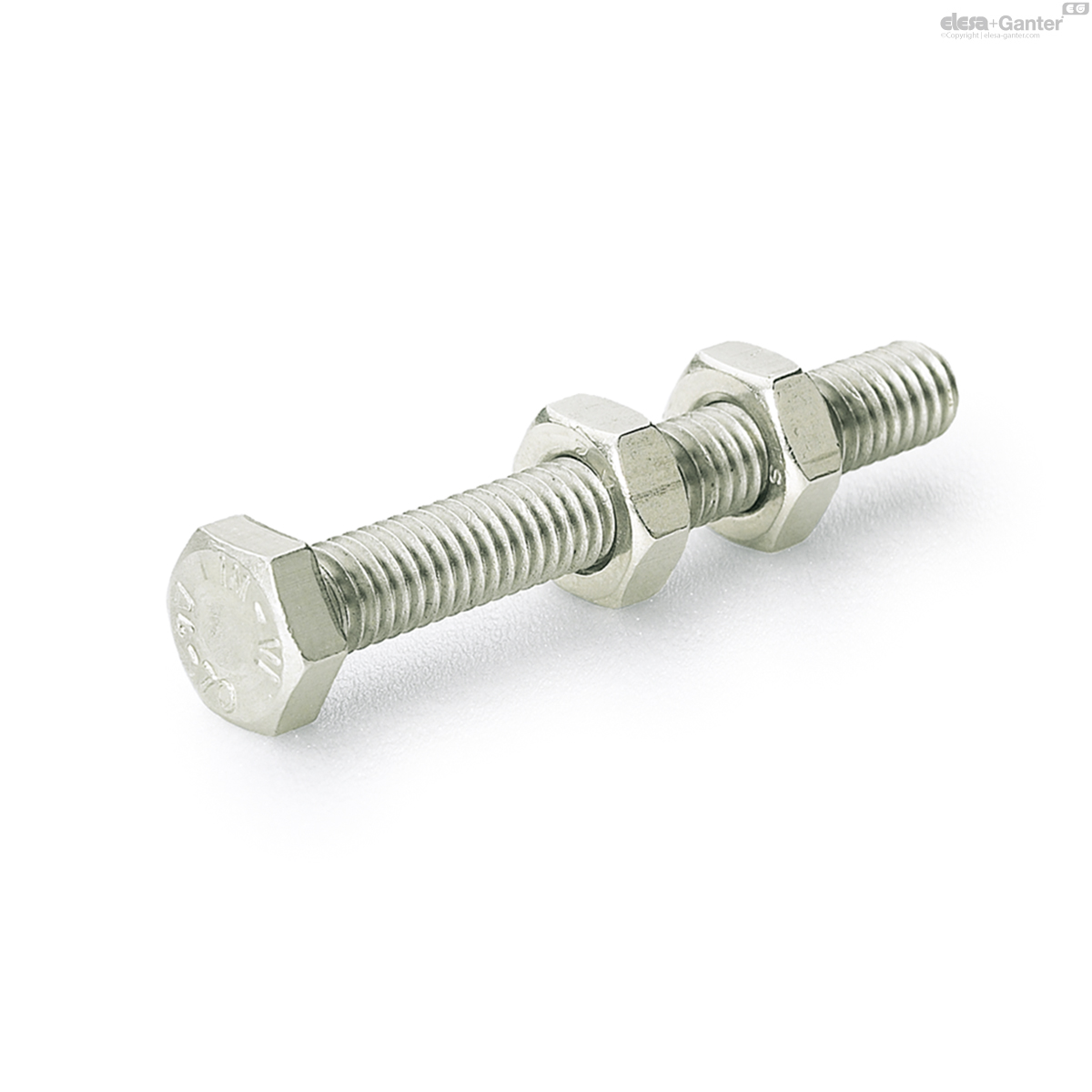

807-M5-38-A-NI GN 807-NI Stainless Steel

807-M5-38-A-NI

GN 807-NI Stainless Steel

Steel / Stainless Steel, with / without Protective Cap
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 807

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 807-M5-38-A-NI
d1
M 5
l1
38
d2
12.5
h1
3.5
h2
8
l2
2.5
m
4.7
A/F
8
8
807-M5-38-A-NI drawing

Types

  • Type A: Without protective cap
  • Type B: With protective cap

Version in Steel

  • Hex head screw ISO 4017 / DIN 933

Property class 8.8

  • Zinc plated, blue passivated

Version in Stainless Steel

Stainless steel AISI 304 NI

  • Hex head screw ISO 4017 / DIN 933
  • Hex nuts ISO 4032

The two hex nuts are included parts of the order.
