806-24-B GN 806 Protective caps

806-24-B

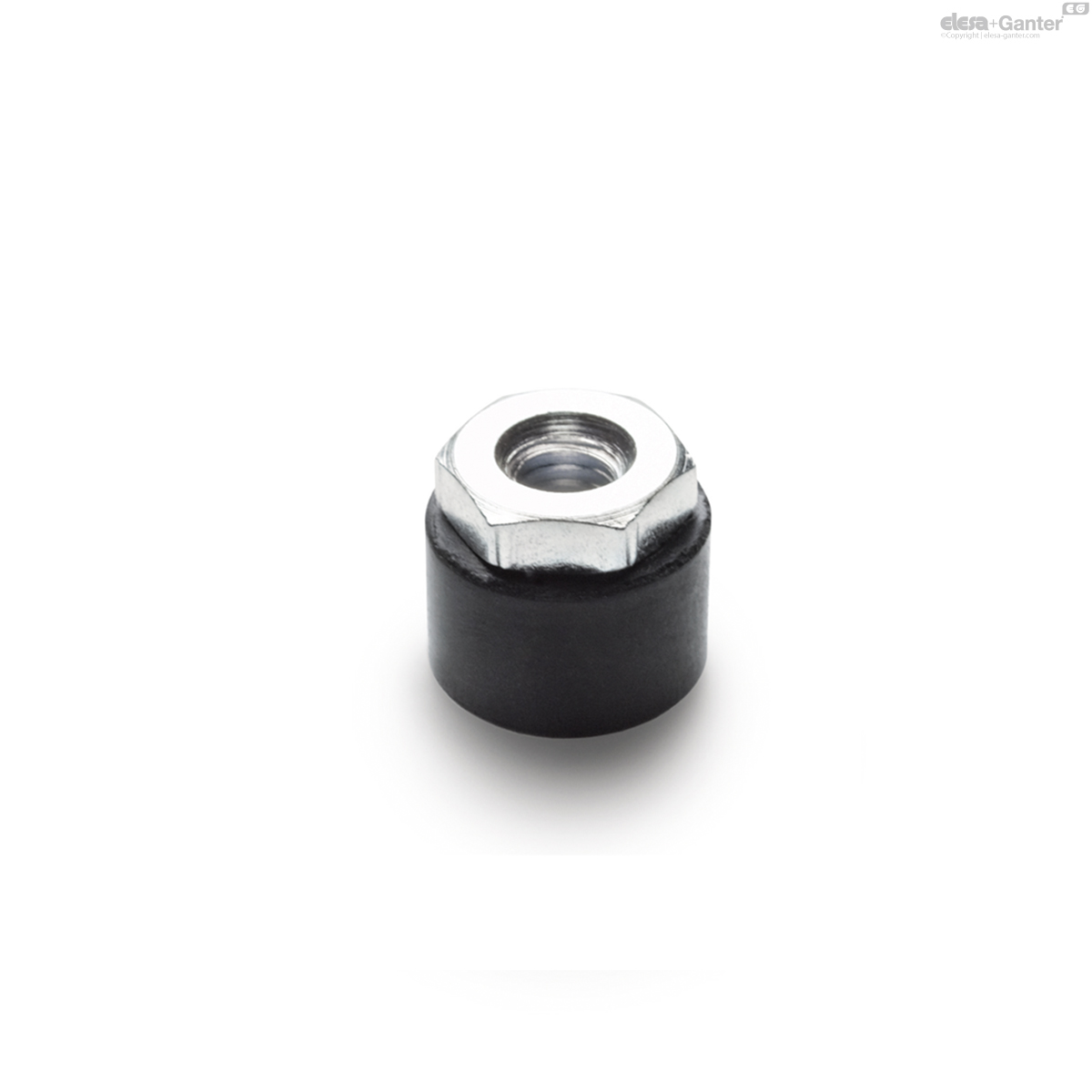

GN 806 Protective caps

  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 806

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 806-24-B
d1
24
d2
M 10
d3
13
d4
20
h1
16
h2
23.5
A/F
21
t1
2.2
t2
9.2
t3 min.
10
37
806-24-B drawing
* Protective caps d1 = 11 are not available in Type B (with a threaded bush)

Types

  • Type A: Protective cap without screw / threaded bushing
  • Type B: Protective cap with threaded bushing

Protective cap

Rubber (CR)

  • Hardness 85±5 Shore A
  • black

Threaded bushing

Steel

zinc plated, blue passivated

Protective caps GN 806 can be used with hexagon screws ISO 4017 or together with threaded pins type B as thrust pins with soft clamping head surface, or as soft end stop bolts.

A typical application is in conjunction with toggle clamps.
