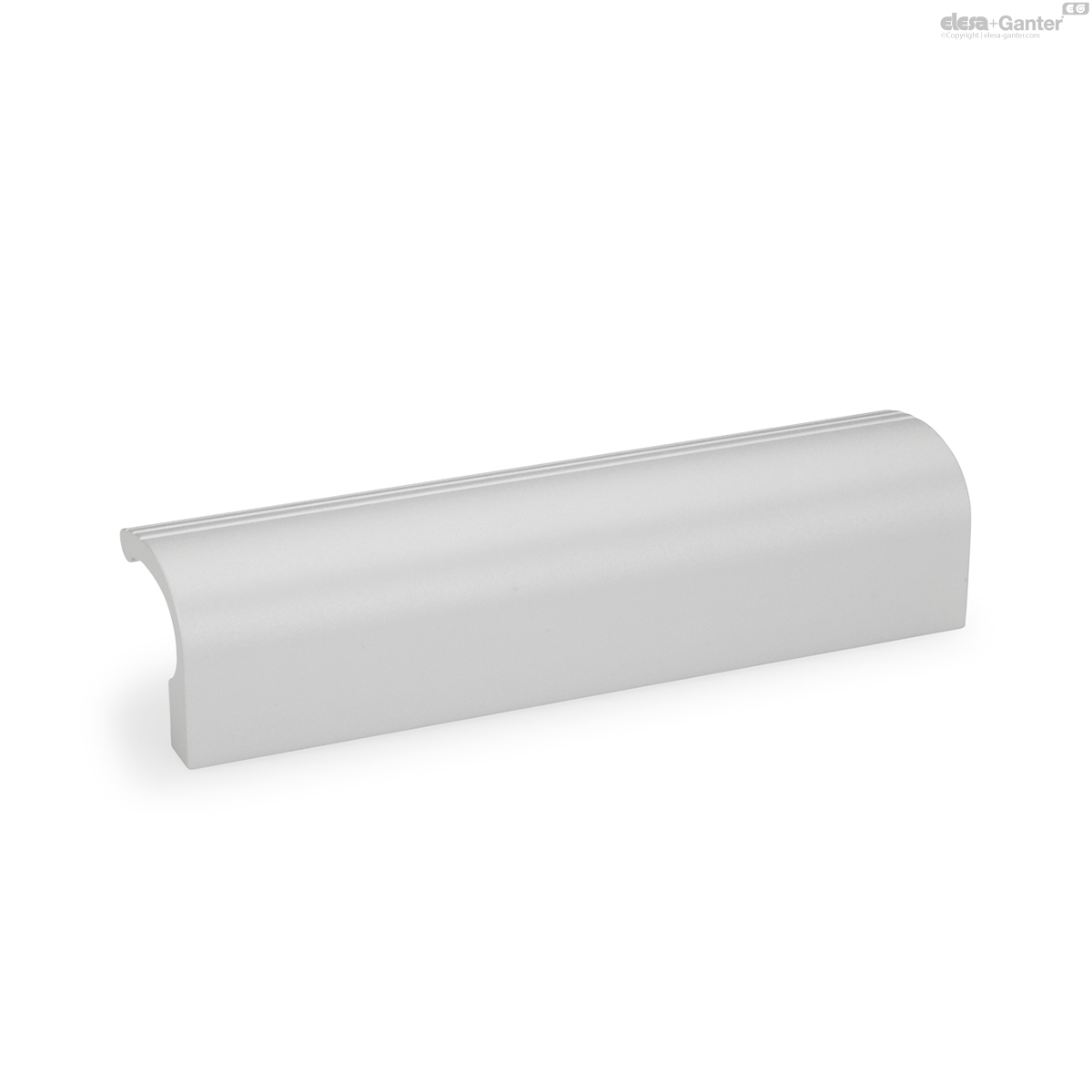

730-140-EL GN 730 Ledge Handles

730-140-EL

GN 730 Ledge Handles

Aluminum
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 730

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 730-140-EL
l1 ±0.25
140
d
M 6
a
10
b1
9.5
b2
33
h1
32
h2
24
l2 ±0.2
120
t min.
9
125

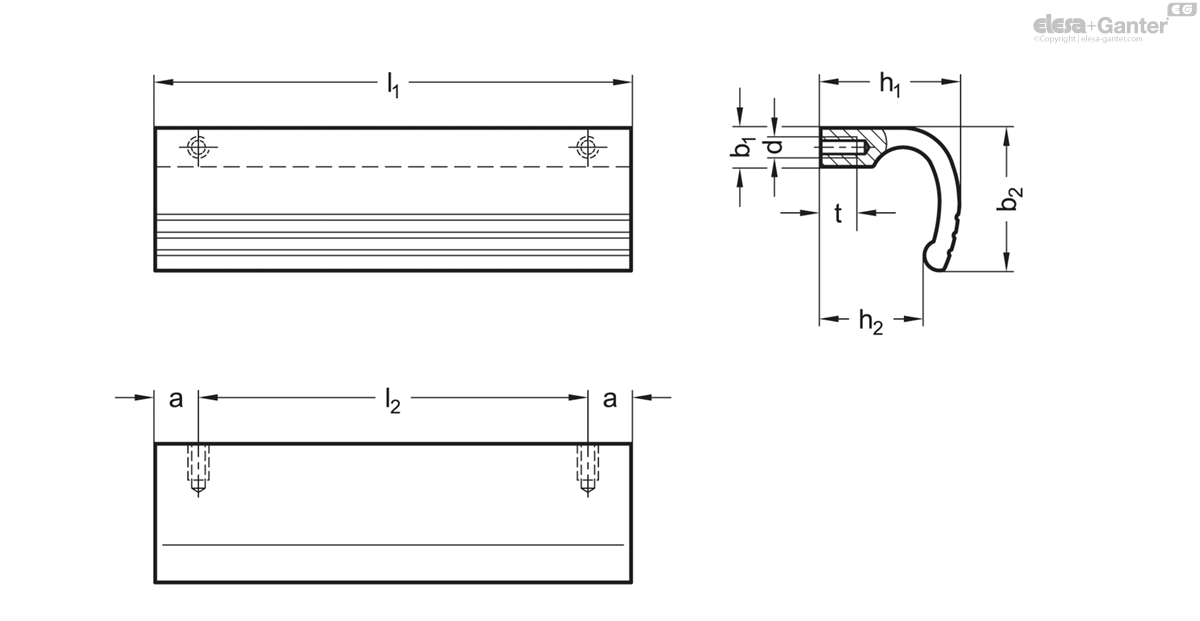

730-140-EL drawing

Aluminum

  • Powder coated
  • Black, RAL 9005, textured finish SW
  • Silver, RAL 9006, textured finish SR
  • Anodized, natural color EL
  • Plain finish, tumbled BL

A typical field of application for ledge handles GN 730 is on hinged protective doors on machinery and installations.
