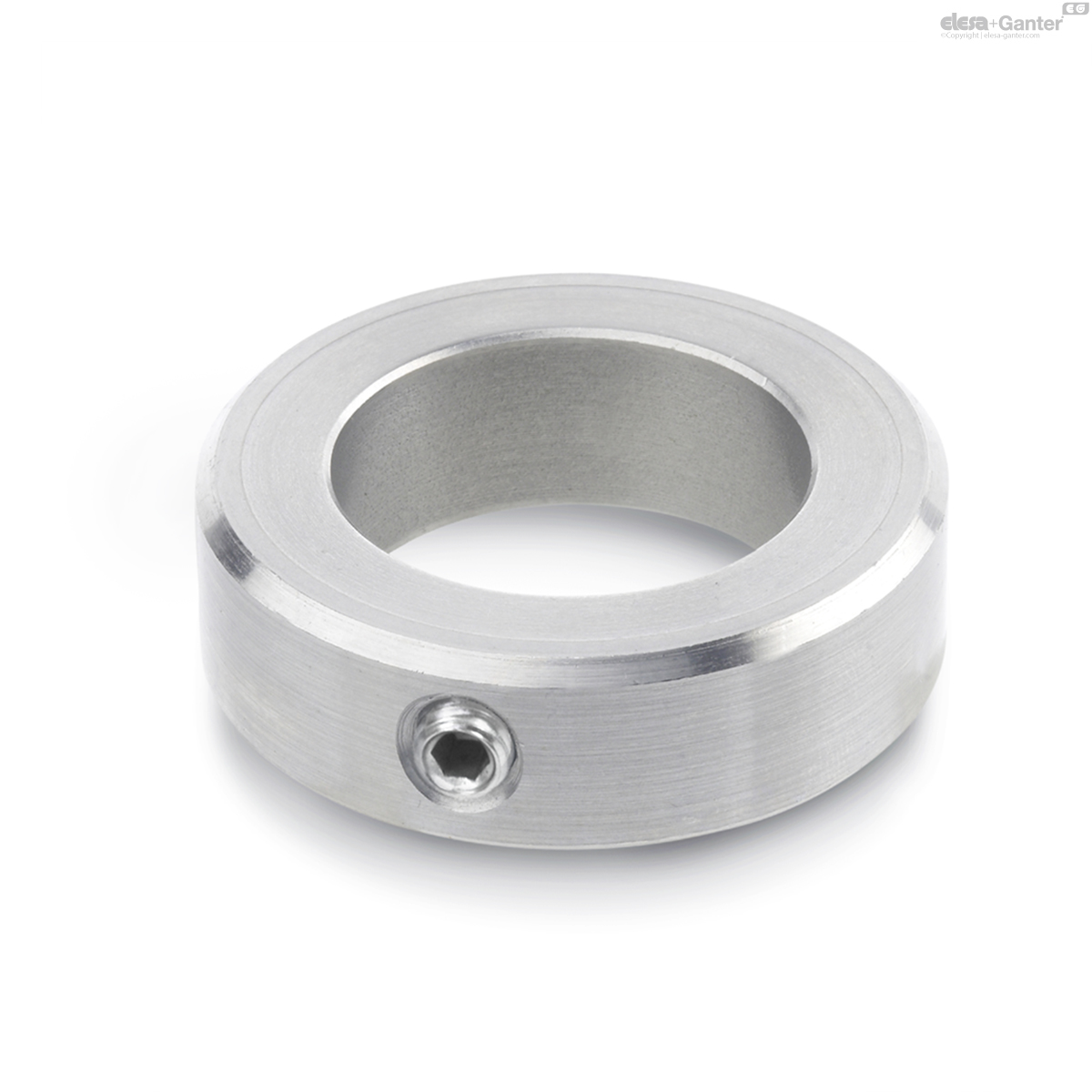

705-15-E-NI GN 705-NI Stainless Steel

705-15-E-NI

GN 705-NI Stainless Steel

Steel / Zinc Plated / Stainless Steel
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

In stock All sizes and variants of GN 705

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 705-15-E-NI
d1 H8
15
d2
25
d3
M6x8
b js14
12
29
705-15-E-NI drawing
* The tolerances given in accordance with DIN 705 apply to blank set collars. As a rule, the surface treatment has no detrimental effect on the proper function.

Types

  • Type A: Grub screw with slot ISO 7434 (DIN 553)
  • Type E: Grub screw with internal hexagon DIN 914

Version in Steel

blackened (Standard)

Version in zinc plated

Steel

zinc plated, blue passivated ZB

Version in Stainless Steel

Stainless steel AISI 303 NI

Shaft collars GN 705 essentially comply with the designs of DIN 705 which has been re-issued in April 2007.

The official standard sheet also lists the sizes d1 = 2 / 2.5 / 3 / 3.5 / 4 / 4.5 / 85 / 90 / 100 / 110 / 120 / 125 / 125 / 140 / 150 / 160 / 180 and 200, although it does not show a whole series of the intermediate sizes listed in the above table.

Also, the official standard sheet still lists the Types B and C for fixing the shaft collars with transverse pin, but not Type E.
