653-M6-25 DIN 653 Steel

653-M6-25

DIN 653 Steel

Steel / Stainless Steel, Flat Type
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

In stock All sizes and variants of DIN 653

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
DIN 653-M6-25
d1
M 6
l
25
d2
24
k
5
20

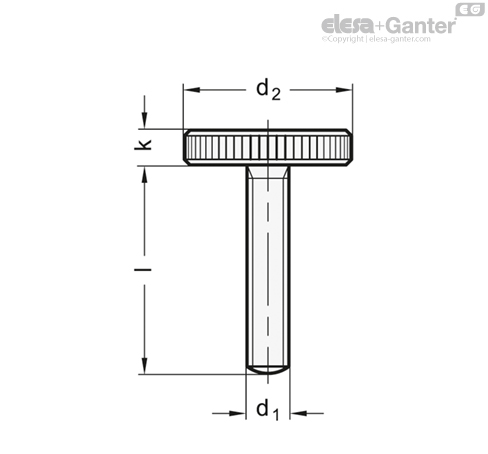

653-M6-25 drawing

Version in Steel

  • Property class 5
  • Visible face fine turned
  • Blackened
  • Zinc plated, blue passivated ZB

Version in Stainless Steel

  • Stainless steel AISI 303 NI
  • Matte shot-blasted

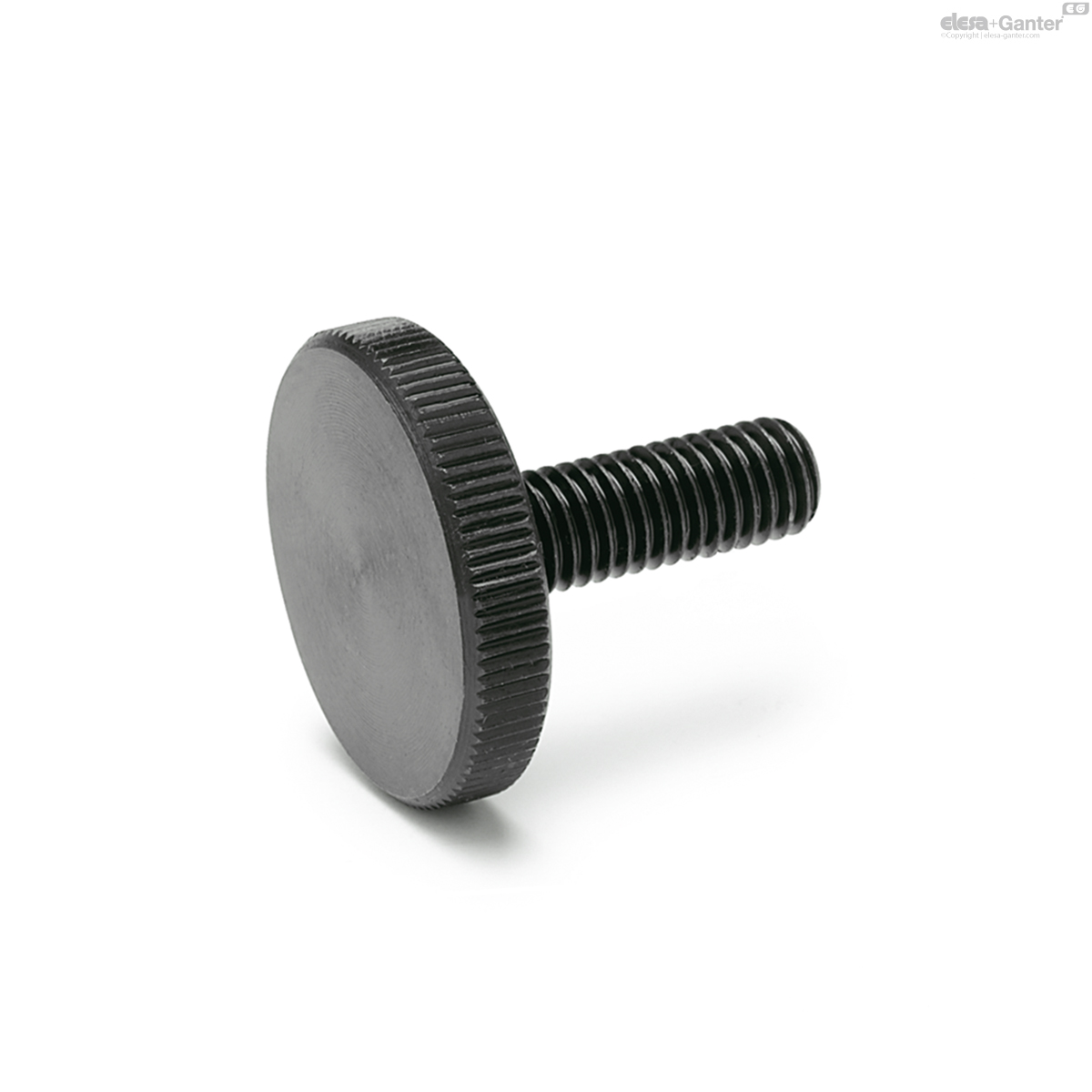

Knurled screws DIN 653 are turned entirely from a single piece. The thread of the screw generally extends up to the head and ends in a runout without recess as per the DIN designation A.

They are suitable for universal use and can be quickly tightened and loosened without tools.

  • Version in stainless steel (A4 quality)
