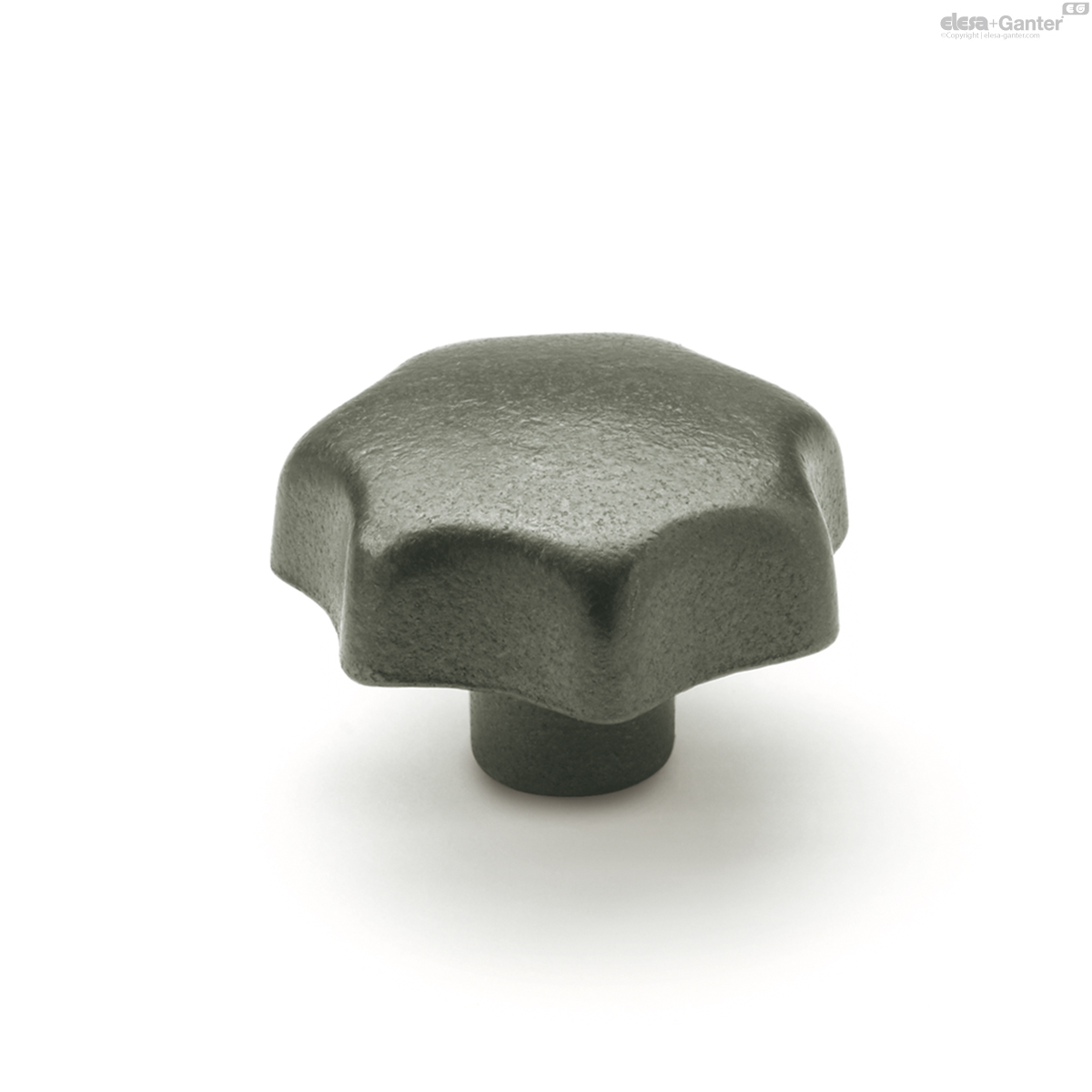

6336-GG-50-M10-E DIN 6336-GG Cast iron

6336-GG-50-M10-E

DIN 6336-GG Cast iron

Cast iron / Stainless Steel / Aluminium
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of DIN 6336

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
DIN 6336-GG-50-M10-E
d1
50
d2
M 10
d4
18
h1
32
h2 min.
15
t1
18
144

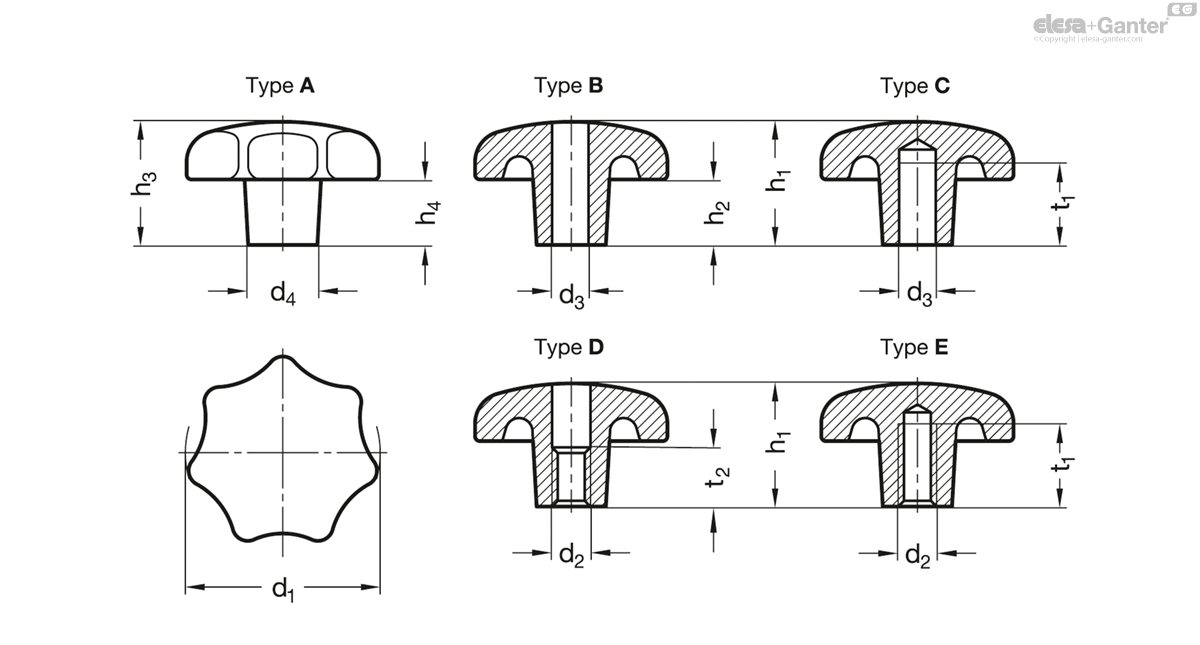

6336-GG-50-M10-E drawing

Types

  • Type A: without bore (unmachined)
  • Type B: with plain through bore H7
  • Type C: with plain blind bore H7
  • Type D: with threaded through bore
  • Type E: with threaded blind bore

Cast iron GG

fettled and tumbled

zinc plated, blue passivated ZB

Thread: screw mobility

only types D and E

Stainless Steel precision casting NI

only types A, D, E

  • AISI CF-8
  • matt shot-blasted

Aluminium AL

only types A, C, D, E

  • matt finish (ground), flash mark not visible MT
  • polished PL
  • plastic coated
