6335.9-50-M8

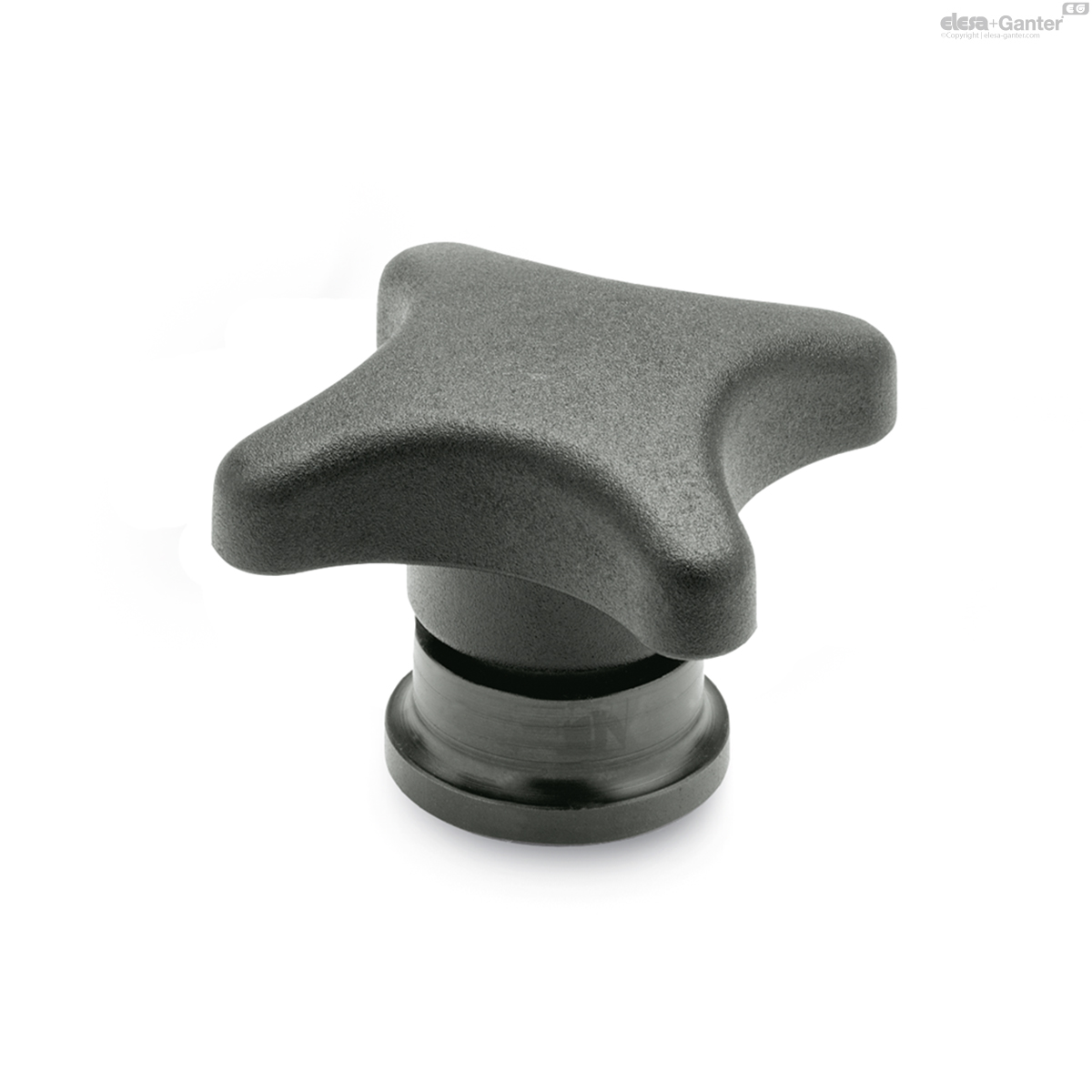

GN 6335.9 Hand Knobs
with increased clamping force
Eta: 1-2 weeks All sizes and variants of GN 6335.9
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet

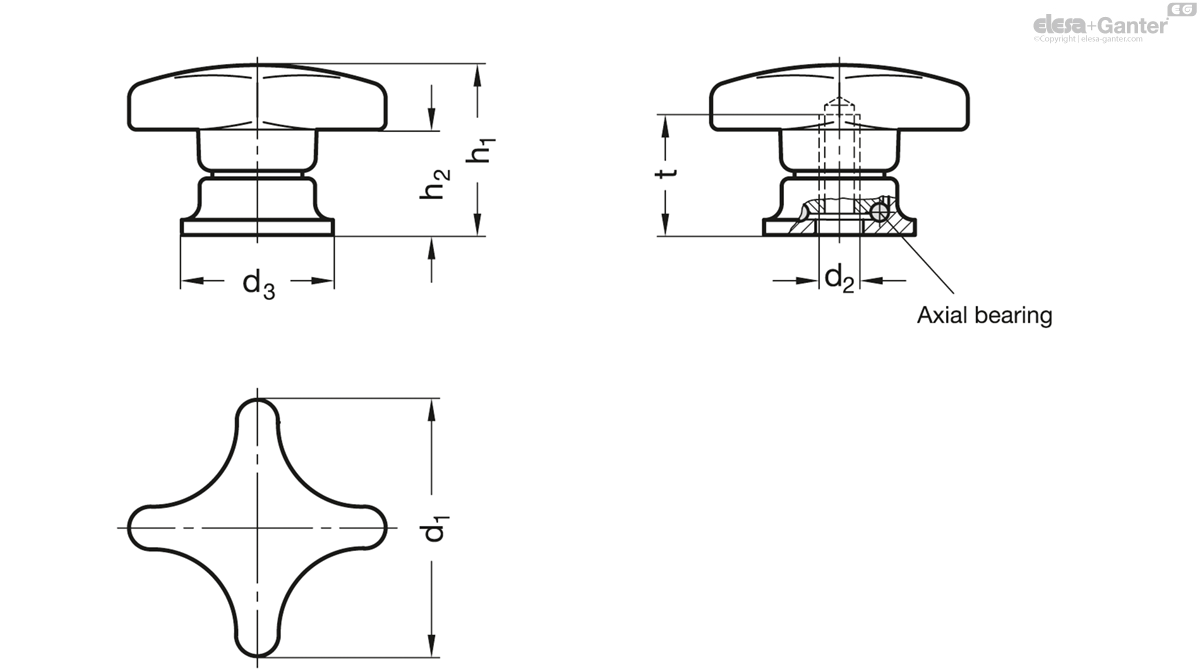

Technical data
- Catalogue
- GN 6335.9-50-M8
- d1
- 50
- d2
- M 8
- d3
- 25
- h1
- 34
- h2
- 22.5
- t min.
- 15
- 66
Plastic
Technopolymer (Polyamide PA)
- shock-resistant
- black, matt finish
Bushes
high quality steel
nitrided, blackened
Hand knobs GN 6335.9 have a clamping contact area which is connected to the knob via an axial ball bearing. This has led to the following advantages:
Doubled clamping force through vastly reduced friction. There is no movement on the contact area between star knob and component which greatly reduces any marking on the clamping area. In addition a reduced creep factor has been achieved by the indreased preload.
- with threaded bolt
