6335.4-SG-40-M8-15

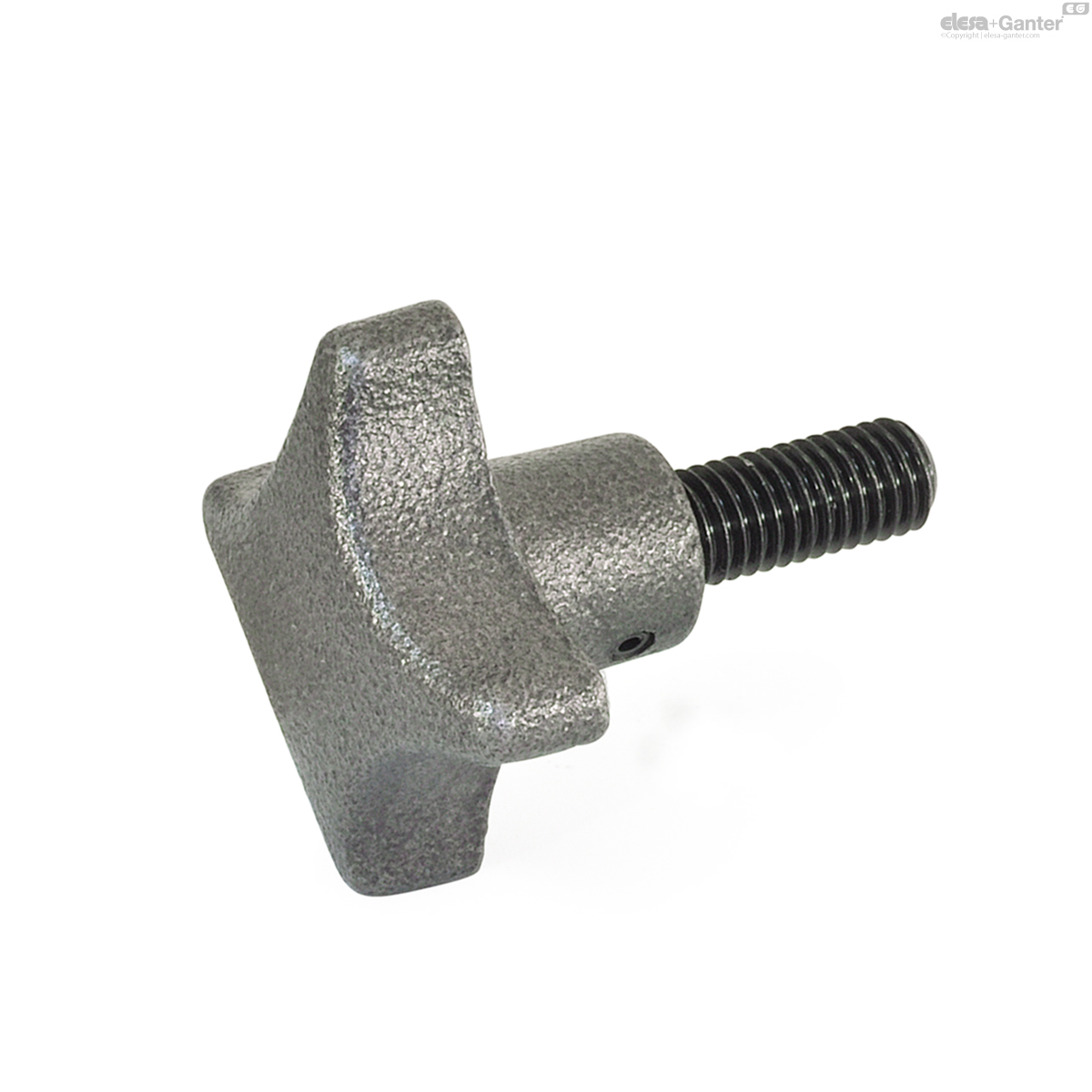

GN 6335.4 Hand Knobs
Cast iron / Threaded bolt, Steel
Eta: 1-2 weeks All sizes and variants of GN 6335.4
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 6335.4-SG-40-M8-15
- d1
- 40
- d2
- M 8
- l ≈
- 15
- d4
- 14
- h1
- 25
- h2
- 13
- 58
Type
Type SG: Star knob DIN 6335 cast iron (GG)
The threaded bolt is screwed in and secured by a cross-dowel.
Should clamping with the bush face be necessary, then it is recommendable to use this hand knobs.
