6331-M36 DIN 6331 Hex Nuts

6331-M36

DIN 6331 Hex Nuts

with collar
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of DIN 6331

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
DIN 6331-M36
d1
M 36
d2
68
a
10
e min.
61.3
m
54
A/F
55
780

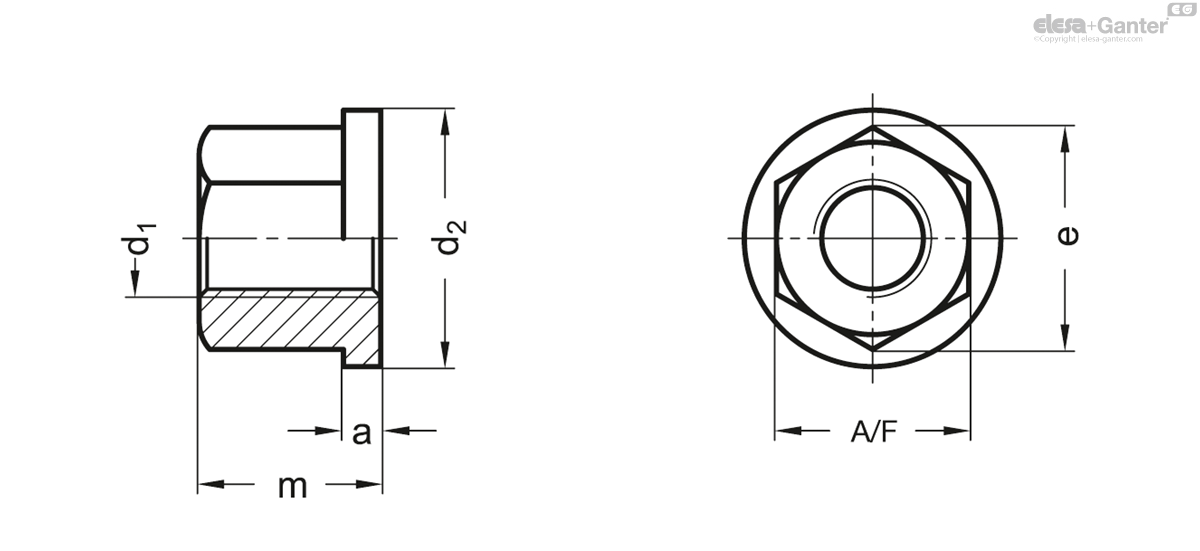

6331-M36 drawing

Steel

  • Tensile strength class 10
  • blackened

Hexagon nuts DIN 6331 are used on clamping applications which require frequent clamping and unclamping (m = 1.5 x d1).

The collar of the nut eliminates the need for washers.

The official standard sheet specifies the additional sizes M 27, M 42 and M 48. But M 14 is not forseen on the official standard sheet.

Size M10 with A/F = 17
