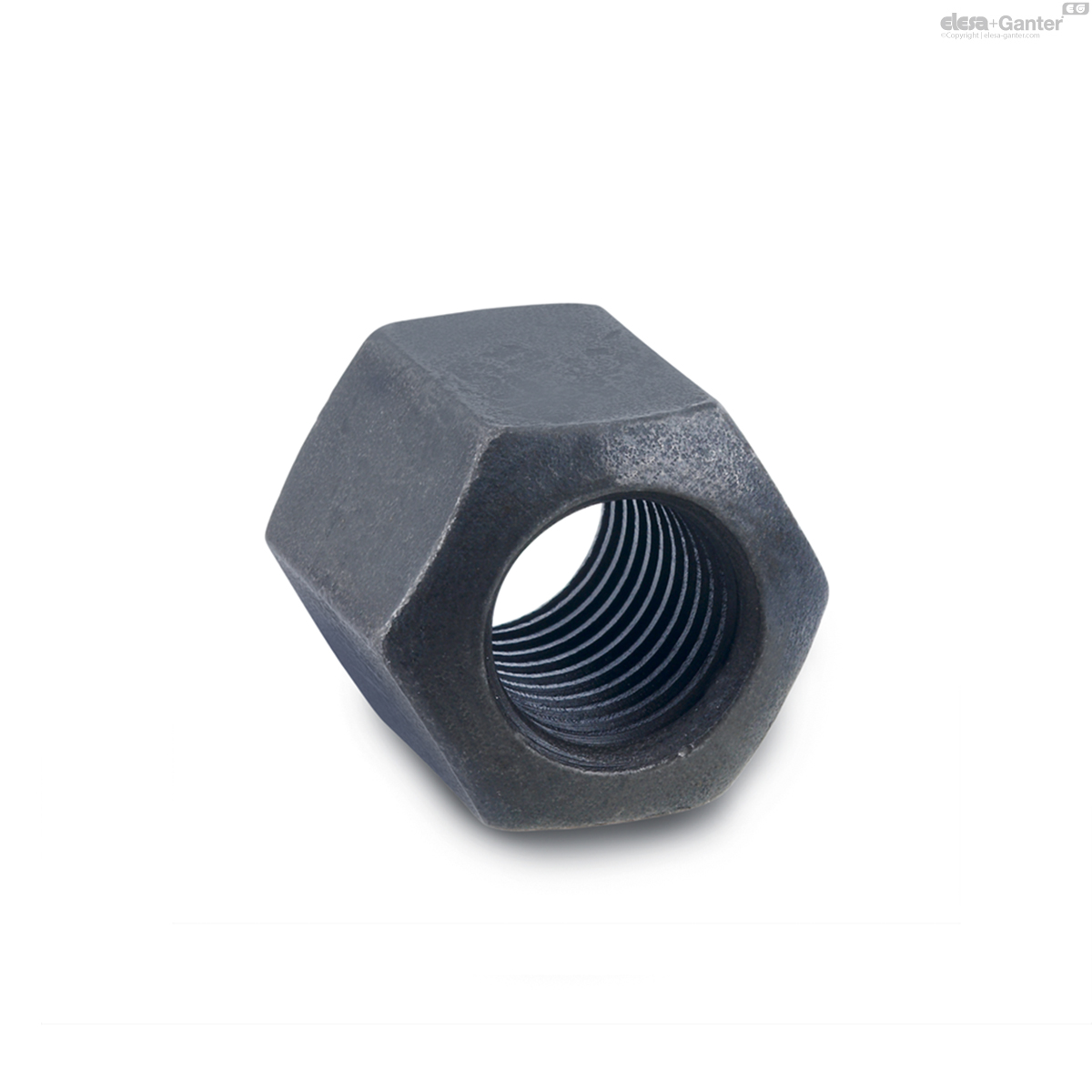

6330-M10-B DIN 6330 Steel

6330-M10-B

DIN 6330 Steel

Steel / Stainless Steel, with spherical seating
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

In stock All sizes and variants of DIN 6330

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
DIN 6330-M10-B
d1
M 10
d2 H14
11.5
e min.
17.8
m
15
A/F
16
r
15
20

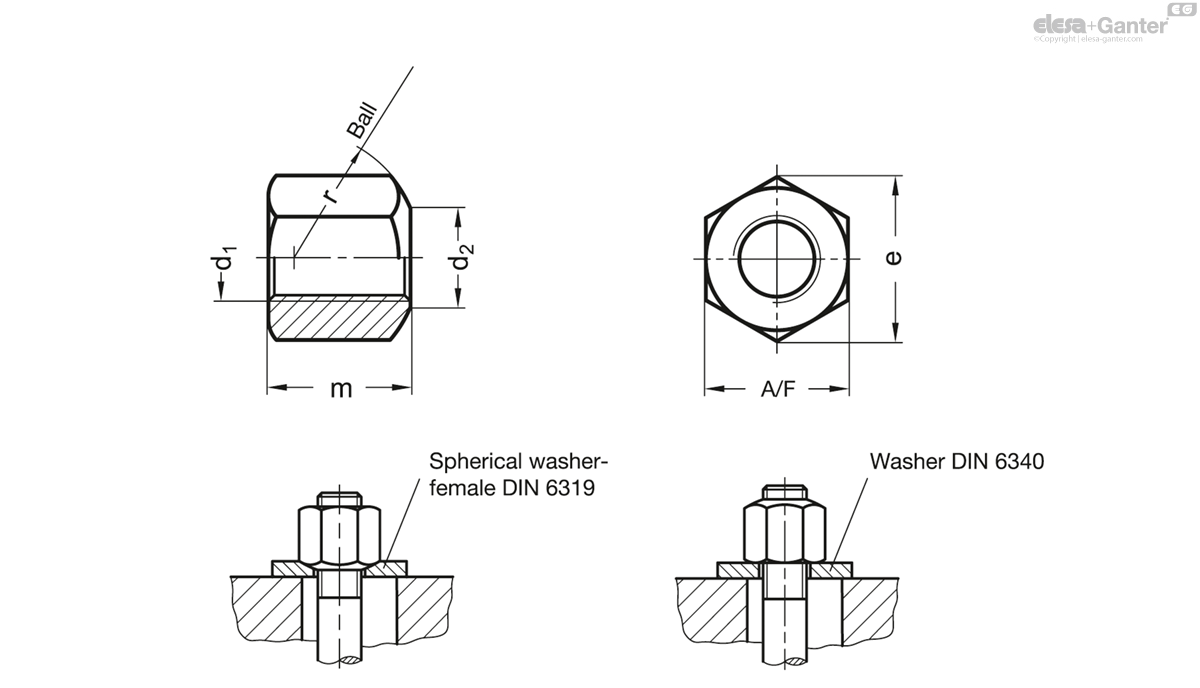

6330-M10-B drawing

Type

  • Type B: with one-sided spherical seating

Version in Steel

Steel

  • Tensile strength class 10
  • blackened

Version in Stainless Steel

Stainless Steel AISI 303 NI

Hexagon nuts DIN 6330 are used on clamping, applications which require frequent clamping and unclamping (m = 1.5 x d1).

The spherical seating together with female washers DIN 6319 allows excessive positional inaccuracies to be equalized.
