632.5-M6-30 GN 632.5 Stainless Steel-Grub screws

632.5-M6-30

GN 632.5 Stainless Steel-Grub screws

with ball point for Thrust pads GN 631 / GN 631.5
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 632.5

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 632.5-M6-30
d1
M 6
l
30
d2 +0,05
4.5
A/F
3
Thrust pad GN 631 / GN 631.5
d1 - e
15 - 3.6 18 - 5.2 21 - 6 25 - 6.5 32 - 7
5

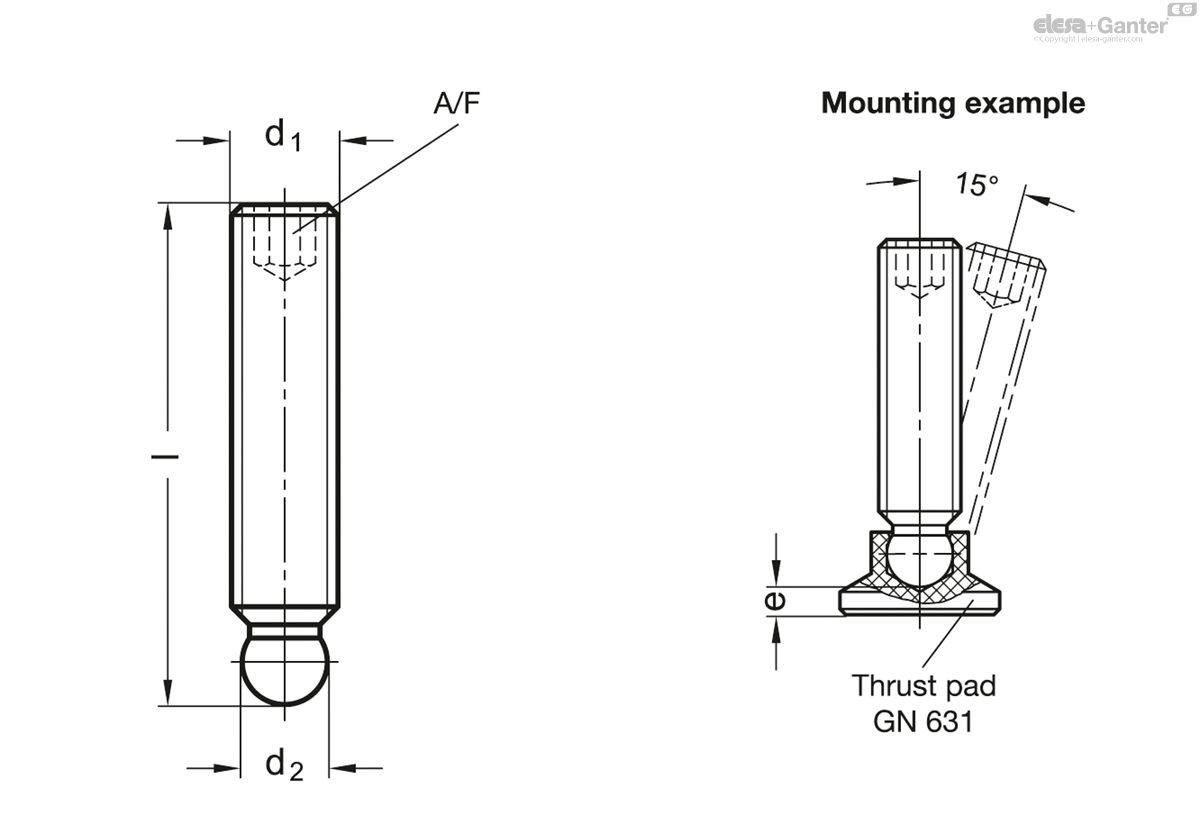

632.5-M6-30 drawing

Stainless Steel AISI 303

Grub screws GN 632.5 with ball point are as a rule used with thrust pads GN 631  / GN 631.5 .

The ball-Ø d2 is smaller than the thread core-Ø, which allows fitting over the ball end.

The combination of grub screws GN 632.5 and thrust pads GN 631  / GN 631.5  with gripping elements easily makes clamping screws of many different types.
