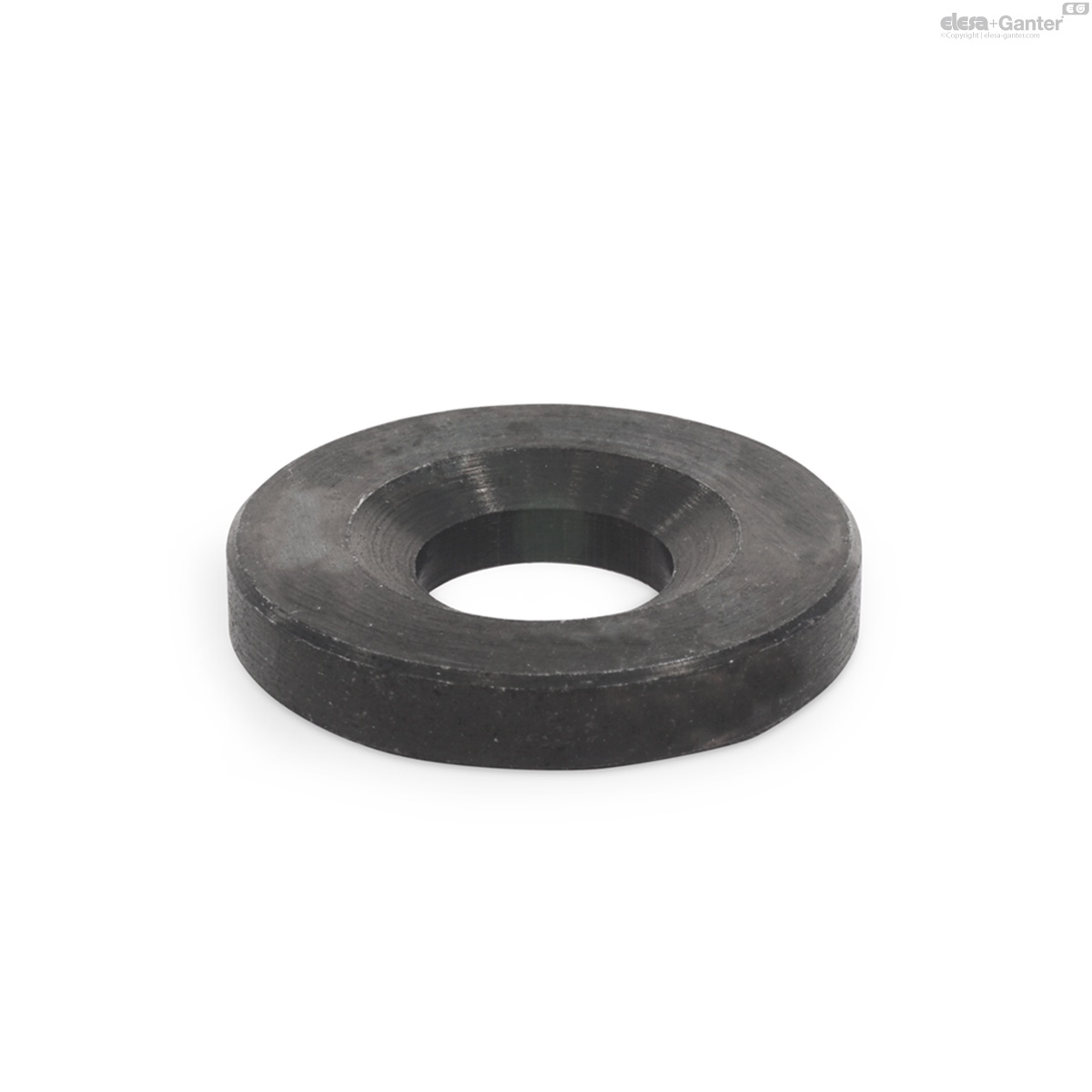

DIN 6319 Steel
In stock All sizes and variants of DIN 6319
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- DIN 6319-23,2-G
- d1 H13
- 23.2
- d4
- 50
- d5
- 31
- d6 Screw
- M 20
- h4
- 8
- h6 ≈
- 12.2
- Transferable static
bolt force in kN
max. - 117
- 90
Version in Steel
Types
- Type C: Spherical seat washer
- Type D: Dished washer with d3 = d2
- Type G: Dished washer with d4 > d 2 (enlarged outer diameter)
Type C / D
Case-hardening steel
Case-hardened
All round depth 0.2 to 0.4 mm
Hardness (550+ 100) HV 10
Type G
Heat-treated steel, tempered
Hardness (350 + 80) HV 30
Version in Stainless Steel
Types
Stainless steel AISI 303 NI
Type C / D / G
Not hardened
Stainless steel AISI 316 A4
Type C / D
Not hardened
Spherical washers and dished washers DIN 6319 are used for clamping on non-parallel surfaces.
Thanks to the material used, the spherical washers and dished washers are generally suited for aggressive environmental conditions.
The dished washers type G with enlarged outside diameter are mainly used on elongated holes.
When utilizing hexagon nuts with spherical seating DIN 6330 type B the spherical washer is redundant.
Version in Steel
- Not hardened spherical washers
- Not hardened dished washers
Version in Stainless Steel
- Hardened spherical washers in stainless steel
- Hardened dished washers in stainless steel
- Stainless steel spherical washers, type G with d4 > d2
(enlarged outer diameter)
