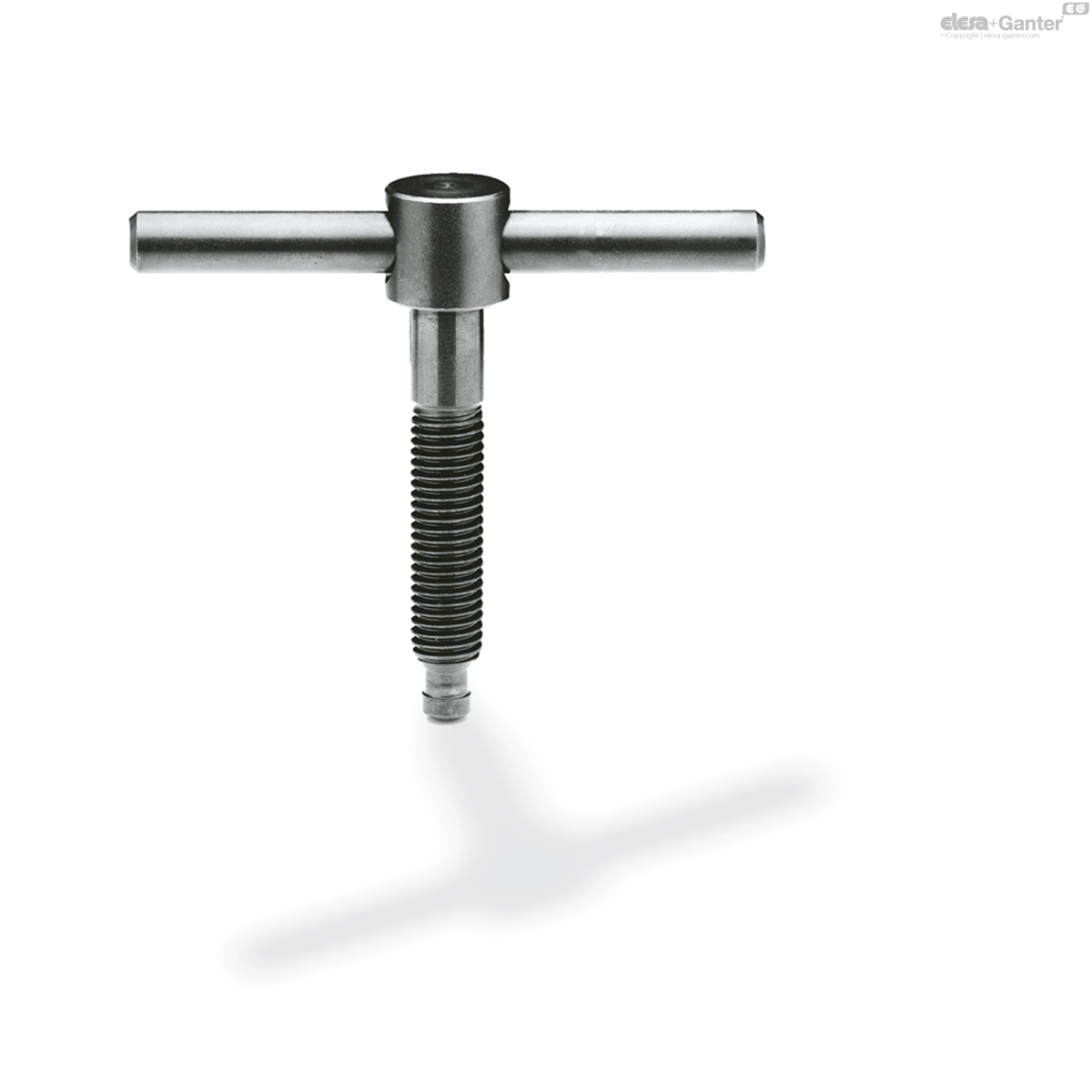

6304-M6-50-F
DIN 6304 Tommy Screws
Eta: 1-2 weeks All sizes and variants of DIN 6304
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account

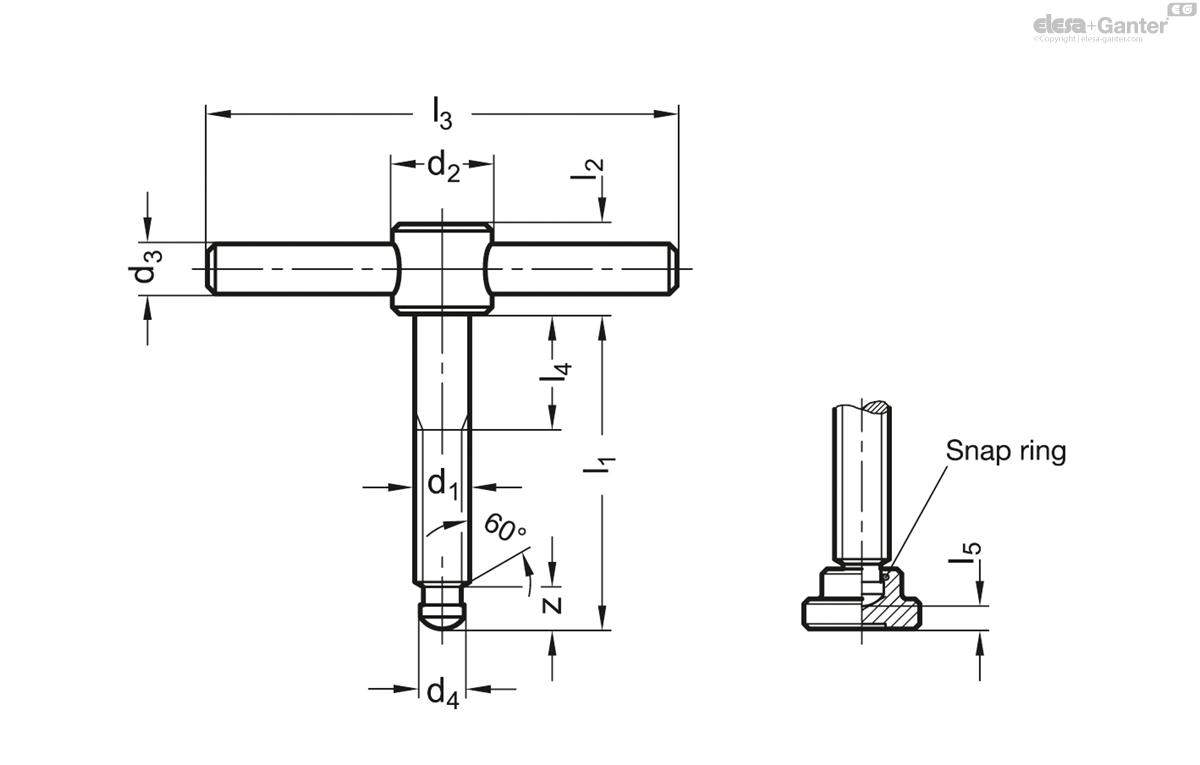

Technical datasheet
Technical data
- Catalogue
- DIN 6304-M6-50-F
- d1
- M 6
- l1
- 50
- d2
- 12
- d3
- 5
- d4 h11
- 4.5
- l2
- 10
- l3
- 50
- l4
- 10
- l5 ≈
- 2.2
- z ≈
- 5.4
- 27
Types
- Type E: without thrust pad
- Type F: with thrust pad DIN 6311
Steel
Tensile strength class 5.8
- Blackened
- Thrust point hardened
The thrust point of these screws DIN 6304 is designed to be used with or without a thrust pad for clamping.
The snap ring is a simple and quick method to connect the thrust pad to the tommy screw.
Instead of DIN 6311 a thrust pad GN 6311.1 can be used. In that case the tommy screw and the thrust pad have to be ordered separately.
The thrust pad has to be held at an angle allowing the circlip to drop to the bottom of its groove with the split end downwards. The thrust point is then offered up tp the spit end of the circlip at the lowest possible angle and pressed home.
