6303.1-M6 GN 6303.1 Steel

6303.1-M6

GN 6303.1 Steel

  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

In stock All sizes and variants of GN 6303.1

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 6303.1-M6
d1
M 6
d2
24
d3
16
d4
6.7
h
14
k
10
37

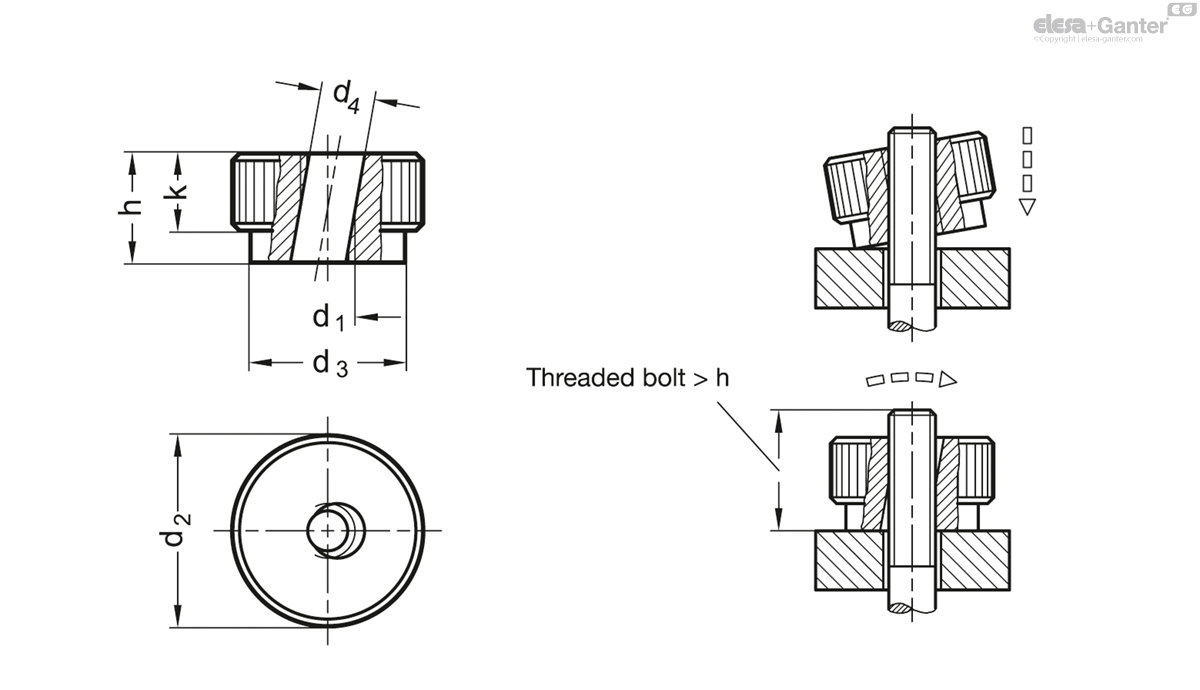

6303.1-M6 drawing

Version in Steel

  • Tensile strength class 5
  • blackened

Version in Stainless Steel AISI 303 NI

  • matte shot-blasted

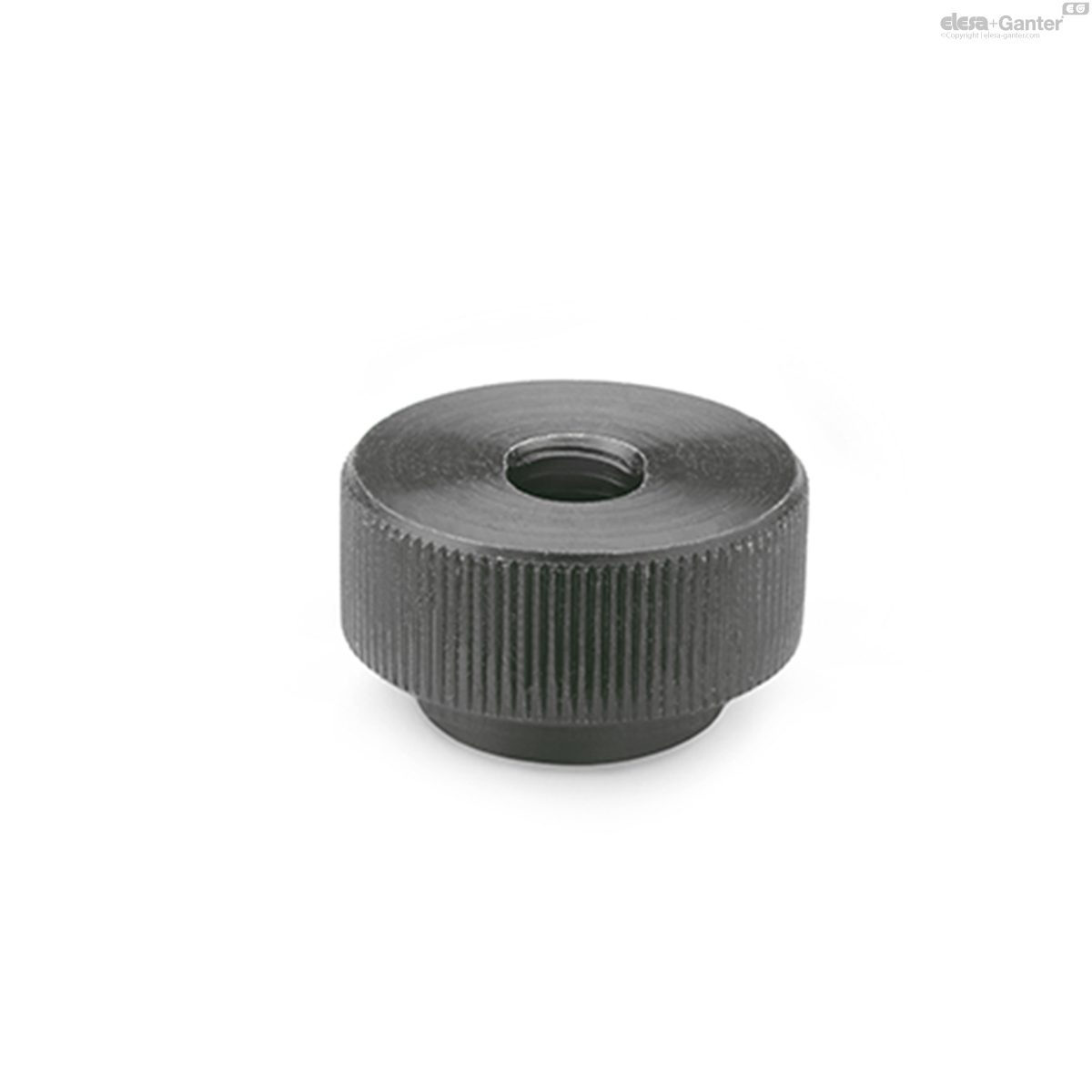

Quick release knurled nuts GN 6303.1 are used in such applications where the nut has to be completely removed after the releasing operation and re-fitted rapidly for re-clamping.

The nut is tilted over the threaded spindle. When in position, the nut is brought into a straight position for meshing of the two threads on nut and spindle. The nut will then have to be turned only by a fraction of a rotation to achieve clamping.

Functional safety exists only if the clamping surface lies at a right angle to the threaded bolt.
