618-6-A GN 618 Indexing plungers

618-6-A GN 618 Indexing plungers

without thread, without rest position
All sizes and variants
  • RoHS

Available immediately (1-2 working days)

Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 618-6-A
d1 Pin -0.02/-0.05 Bore G7
6
d2 h9
14
d3
25
l1 ≈
54.5
l2
6
l3
26
Spring load in N ≈
initial
9
Spring load in N ≈
end
24
weight
40

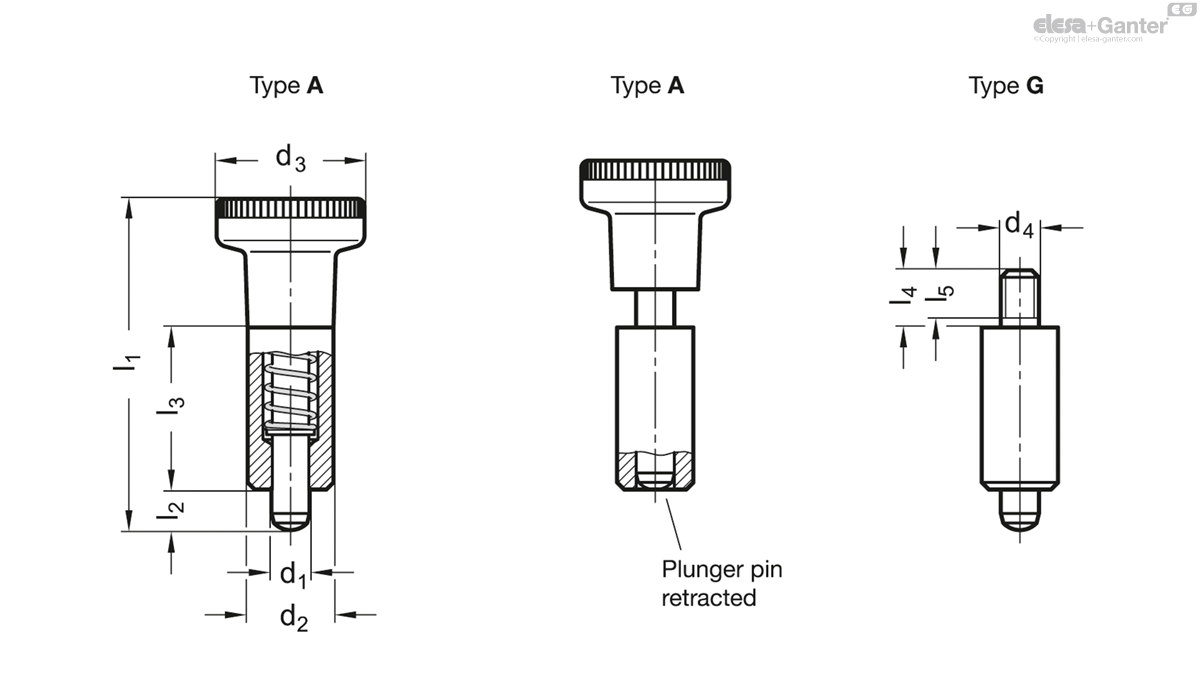

618-6-A drawing

Types

  • Type A: with knob
  • Type G: with threaded rod

Steel

  • weldable
  • blackened
  • Pin hardened

Knob Plastic (Polyamide PA)

  • black, matt
  • not removable

Indexing plungers GN 618 without thread are for applications where welding, resin bonding (Loctite) or clamping is favoured.

Type G has been designed for applications where the indexing plunger is not operated with the standard knob.

The indexing plungers are designed such that the plunger set in the end position (spring is 'on block') can also absorb axial forces. For applications in which these forces are substantially above the tensile force applied by the operator (Type G), additional information can be submitted on request.
