614-8-MS GN 614-MS Housing brass, ball stainless steel, standard spring load

614-8-MS

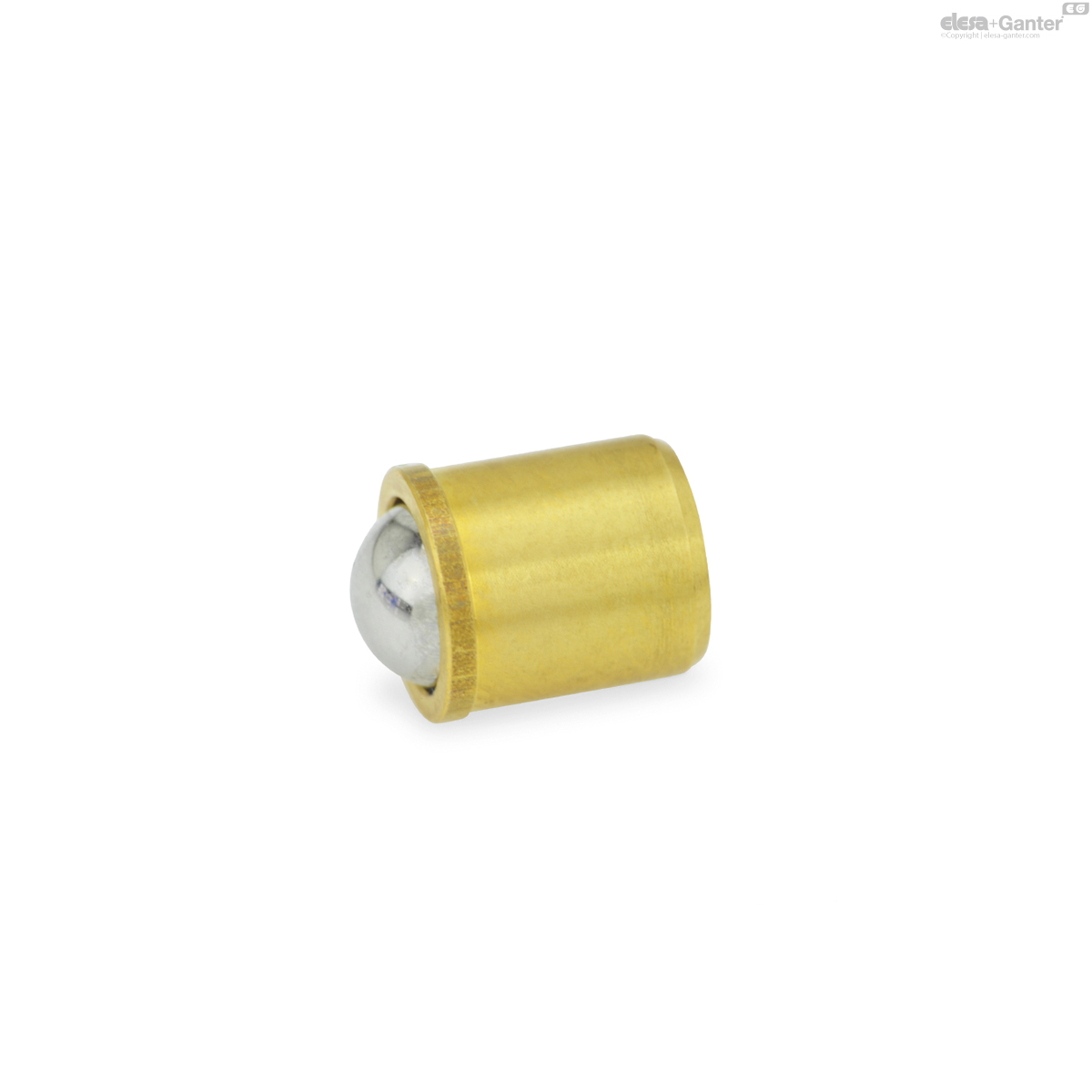

GN 614-MS Housing brass, ball stainless steel, standard spring load

Housing Stainless Steel / Brass / Plastic, Ball Stainless Steel / Plastic, Press-On Type
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

In stock All sizes and variants of GN 614

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 614-8-MS
d1 +0.1
8
d2
6.5
d3
8.5
l1 ≈
9
l2 ±0.1
1
w
1.9
Spring load
in N≈ initial
7
Spring load
in N≈ end
12.5
5
614-8-MS drawing
Types
  • Type NI: Stainless steel, standard spring load
  • Type NIL: Stainless steel, light spring load
  • Type NIS: Stainless steel, high spring load
  • Type MS: Housing brass, ball stainless steel, standard spring load
  • Type KU: Housing plastic, ball stainless steel, standard spring load
  • Type KD: Housing plastic, ball plastic, standard spring load

Types NI / NIL / NIS

  • Housing
  • Stainless steel AISI 305
  • Sheet-metal
  • Ball
  • Stainless steel AISI 420C
  • Hardened

Identification

  • Type NIL: Housing with 1 longitudinal marking
  • Type NIS: Housing with 2 longitudinal markings

Type MS

  • Housing
  • Brass, turned
  • Ball
  • Stainless steel AISI 420C, hardened

Type KU

  • Housing
  • Plastic, polyacetal (POM)
  • Operating temperature up to 50 °C
  • Blue
  • Ball
  • Stainless steel AISI 420C, hardened

Type KD

  • Housing
  • Plastic, polyacetal (POM)
  • Operating temperature up to 50 °C
  • Blue
  • Ball
  • Plastic, polyacetal (POM)
  • Operating temperature up to 50 °C
  • White

Pressure spring

Stainless steel AISI 631

Spring plungers GN 614 are used as detents as well as for push-on and push-off applications and ejectors.

A tolerance of H7 for the location hole of d1 is recommended.
