613-6-GK

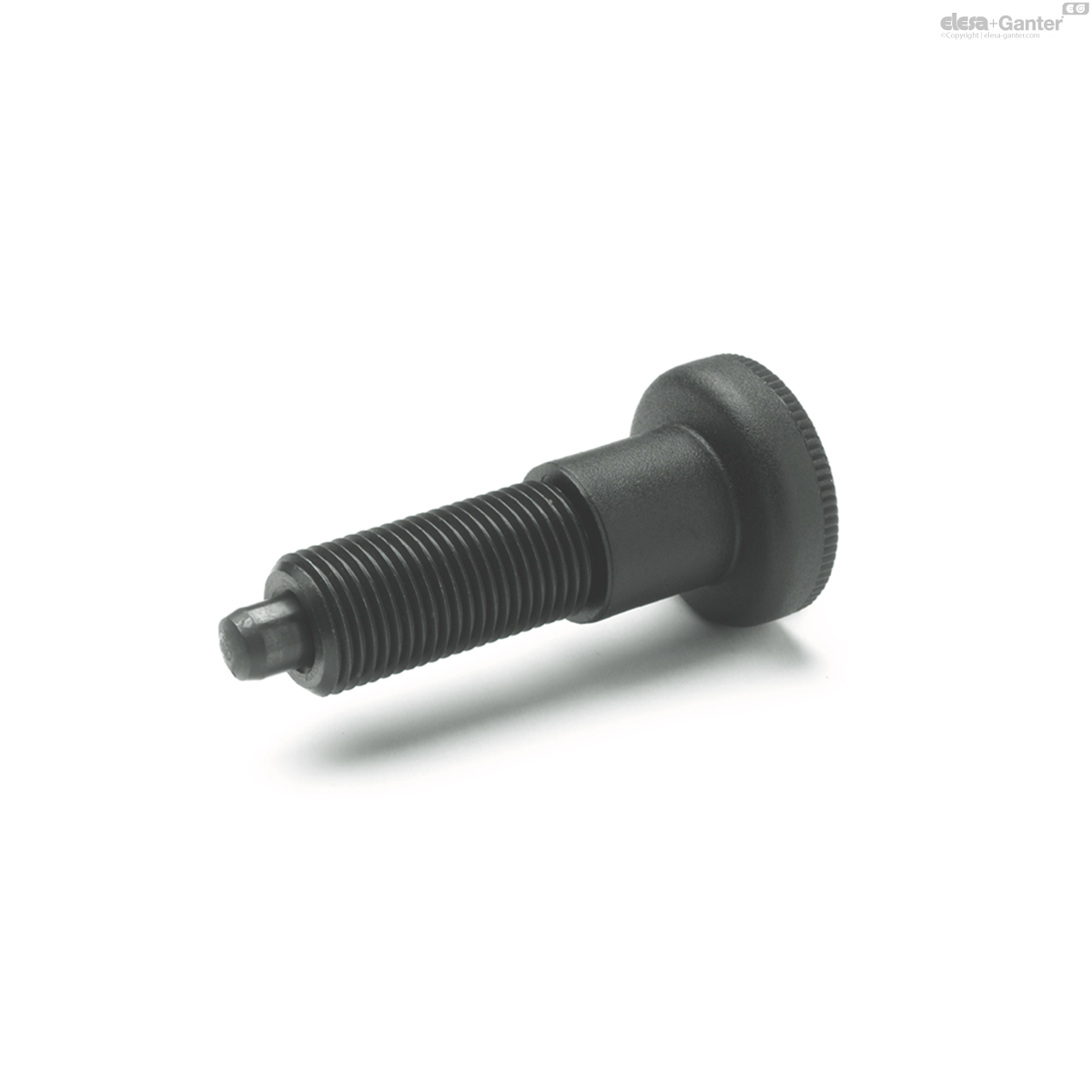

GN 613 Steel with Plastic knob
Eta: 1-2 weeks All sizes and variants of GN 613
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 613-6-GK
- d1 Pin -0.02/-0.05 Bore H7
- 6
- d2
- M 12 x 1.5
- d4
- M 6
- l2
- 6
- l3
- 26
- l4
- 10
- Spring load in N ≈
initial - 9
- Spring load in N ≈
end - 24
- Code no.
Screw driver - GN 613.1-6
- 32
Types
- Type A: with Plastic-Knob, without lock nut
- Type AK: with Plastic-Knob, with lock nut
- Type AN: with Stainless Steel-Knob, without lock nut
- Type AKN: with Stainless Steel-Knob, with lock nut
- Type G: with threaded rod, without lock nut
- Type GK: with threaded rod, with lock nut
Steel
- blackened
- Pin hardened
Stainless Steel AISI 303 NI
Pin chemically nickel plated
Knob Type A / AK
- Plastic (Polyamide PA)
- black, matt
- not removable
Knob Type AN / AKN
- Stainless Steel AISI 303
- not removable
Type G or GK of the GN 613 indexing plungers have been designed for applications where the indexing plunger is not operated with the standard knob.
The indexing plungers are designed such that the plunger set in the end position (spring is 'on block') can also absorb axial forces. For applications in which these forces are substantially above the tensile force applied by the operator (Type G), GN 817 indexing plungers are to be preferred.
A special screw driver GN 613.1 is available. Two slots are provided in the upper end of the body which are accessible with the knob in its retracted position.
