612.2-8-20-B GN 612.2 Cam action indexing plungers

612.2-8-20-B

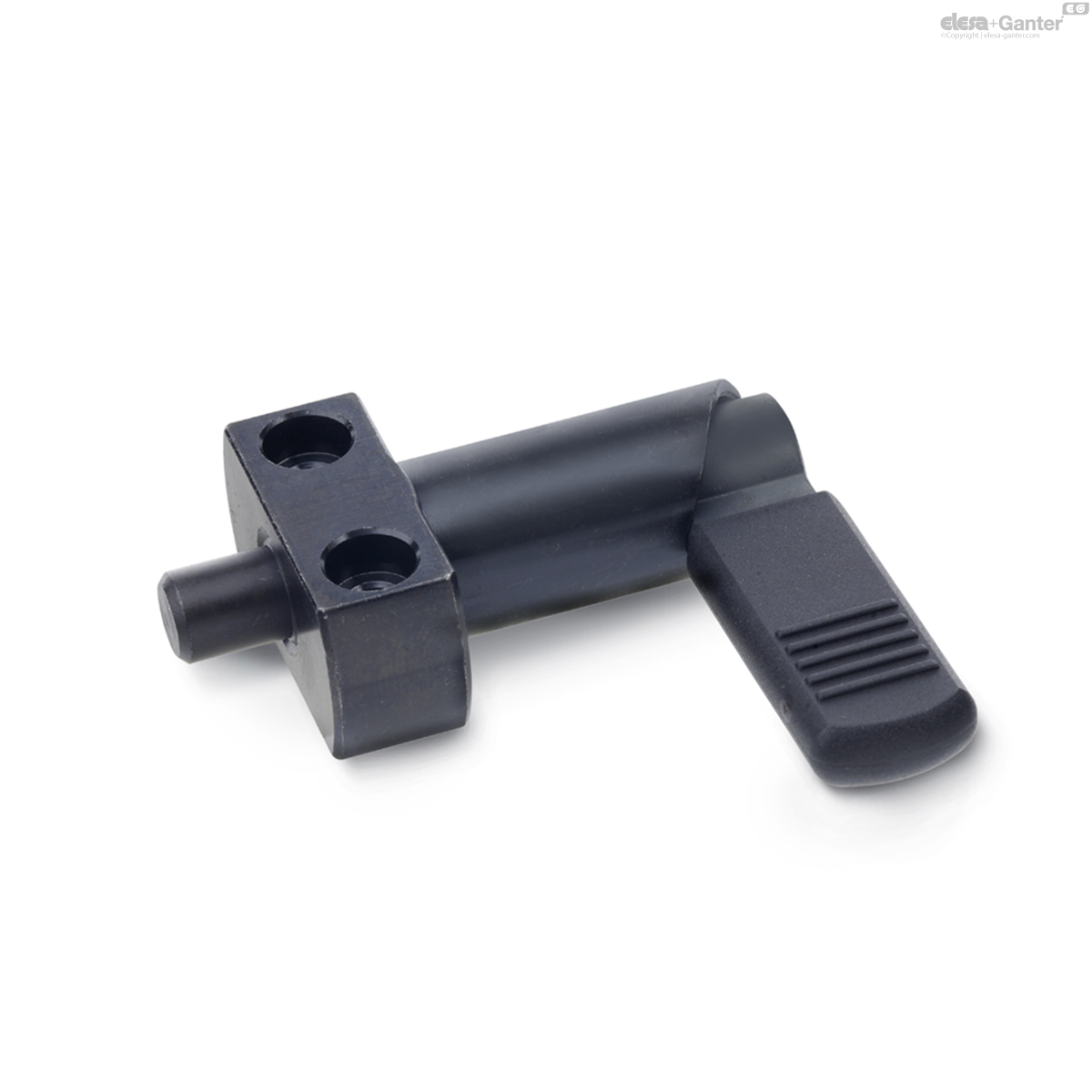

GN 612.2 Cam action indexing plungers

Guide steel, blackened
  • Icons/__logo__RoHS__.png
  • Icons/__logo__profile__.png

In stock All sizes and variants of GN 612.2

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 612.2-8-20-B
d1 Pin 0/-0.05

Bore
H7
8
d2
20
d3
40
h
20
k
22
l1
69
l2
12
l4
52
s
15
Spring load
in N ≈
initial
21
Spring load
in N ≈
end
58
170
612.2-8-20-B drawing
612.2-8-20-B drawing

Types

  • Type A: without plastic caps
  • Type B: with plastic caps

Steel

  • Blackened
  • Plunger pin nitrided

Cap

Plastic (Polyamide PA)

Black, matte

Cam action indexing plungers GN 612.2 are used in cases where the locking pin must not protude all the time. By rotating the lock through 180° the locking pin withdraws itself. A groove keeps the plunger in this position.
