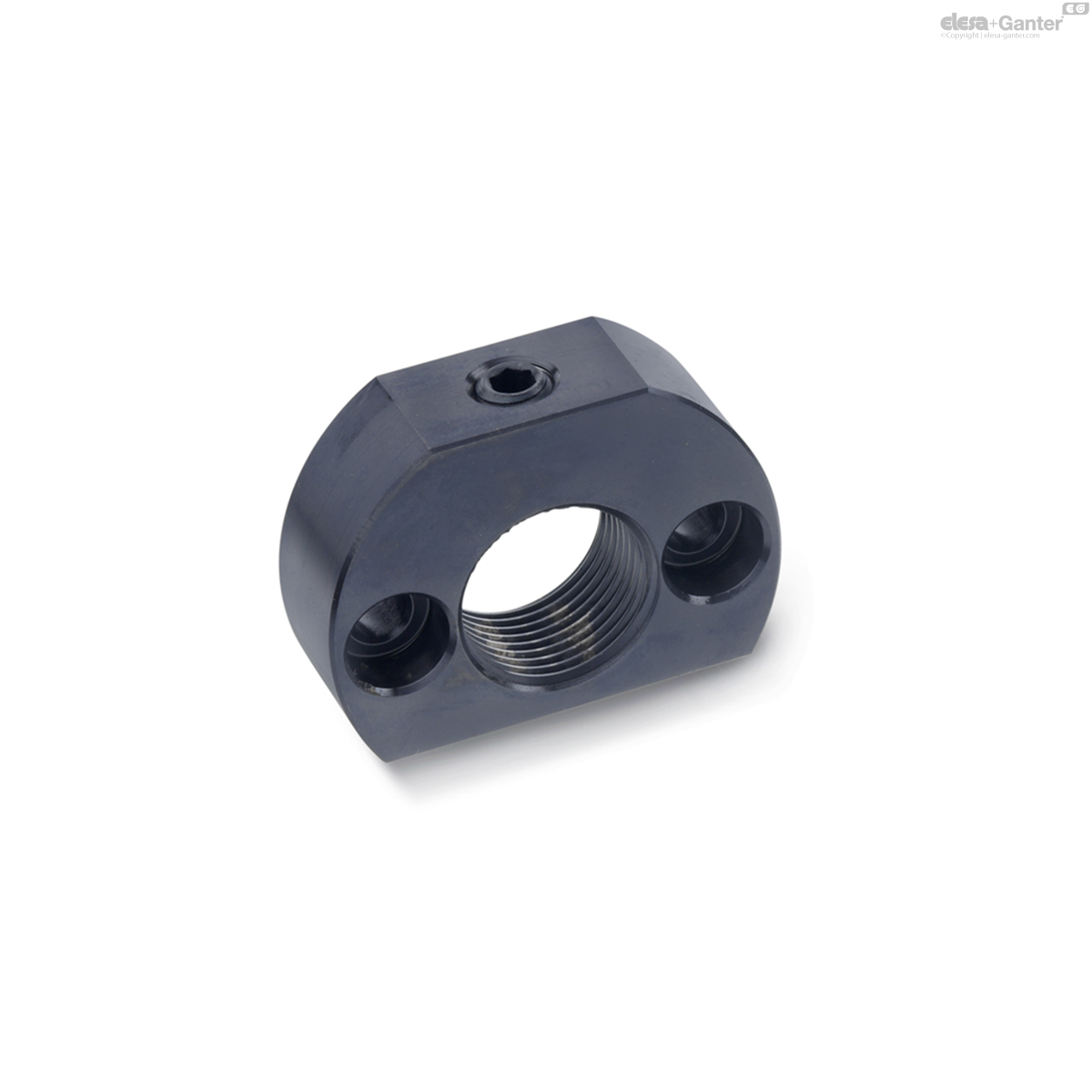

612.1-M16X1,5-A GN 612.1 Mounting blocks, Steel

612.1-M16X1,5-A

GN 612.1 Mounting blocks, Steel

Steel / Stainless Steel, for indexing plungers / cam action indexing plungers
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

In stock All sizes and variants of GN 612.1

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 612.1-M16x1,5-A
d1
M 16 x 1.5
d2
46
d3
M 8
d4
5.5
d5
16.2
k ±0.1
32
l1
33
l2 ≈
37
l3
13
s
15
t
3
122

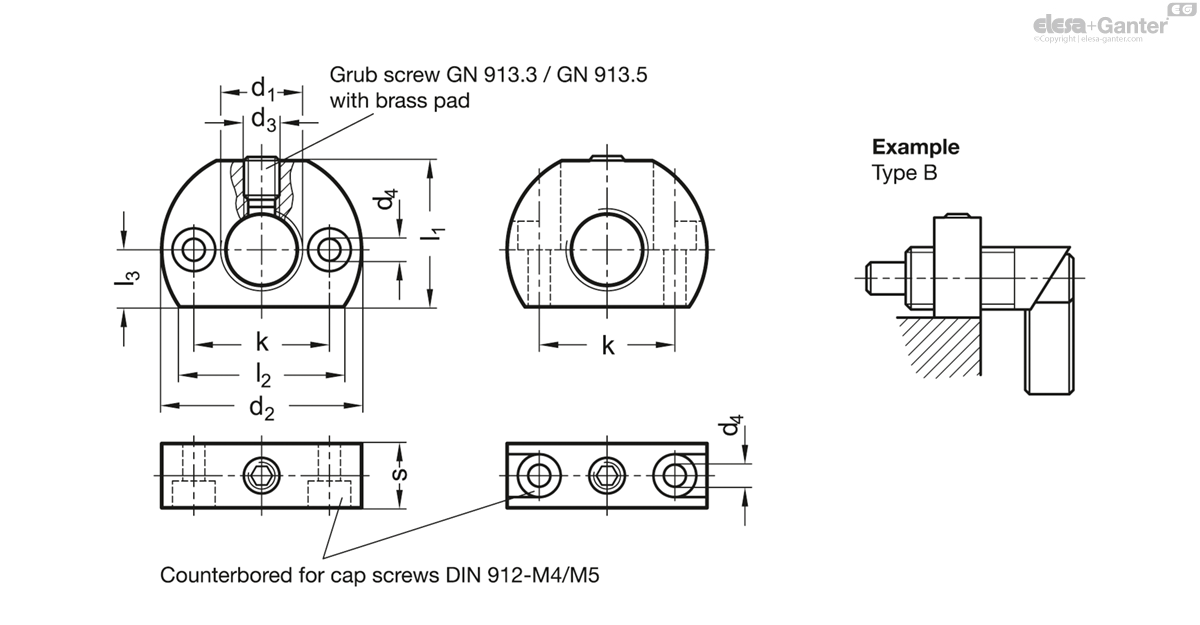

612.1-M16X1,5-A drawing

Types

  • Type A: fixing holes parallel to plunger
  • Type B: fixing holes vertical to plunger

Version in Steel

  • blackened

Version in Stainless Steel AISI 303 NI

Grub screw GN 913.5 with brass pad

Mounting blocks GN 612.1 broaden the mounting possibilities and are and added feature for the cam action indexing plungers GN 612  and cam action indexing plungers GN 712 / GN 712.1

To position the indexing pin of an indexing plunger or cam action indexing plunger, they can also hold GN 412.2 -positioning bushings.
