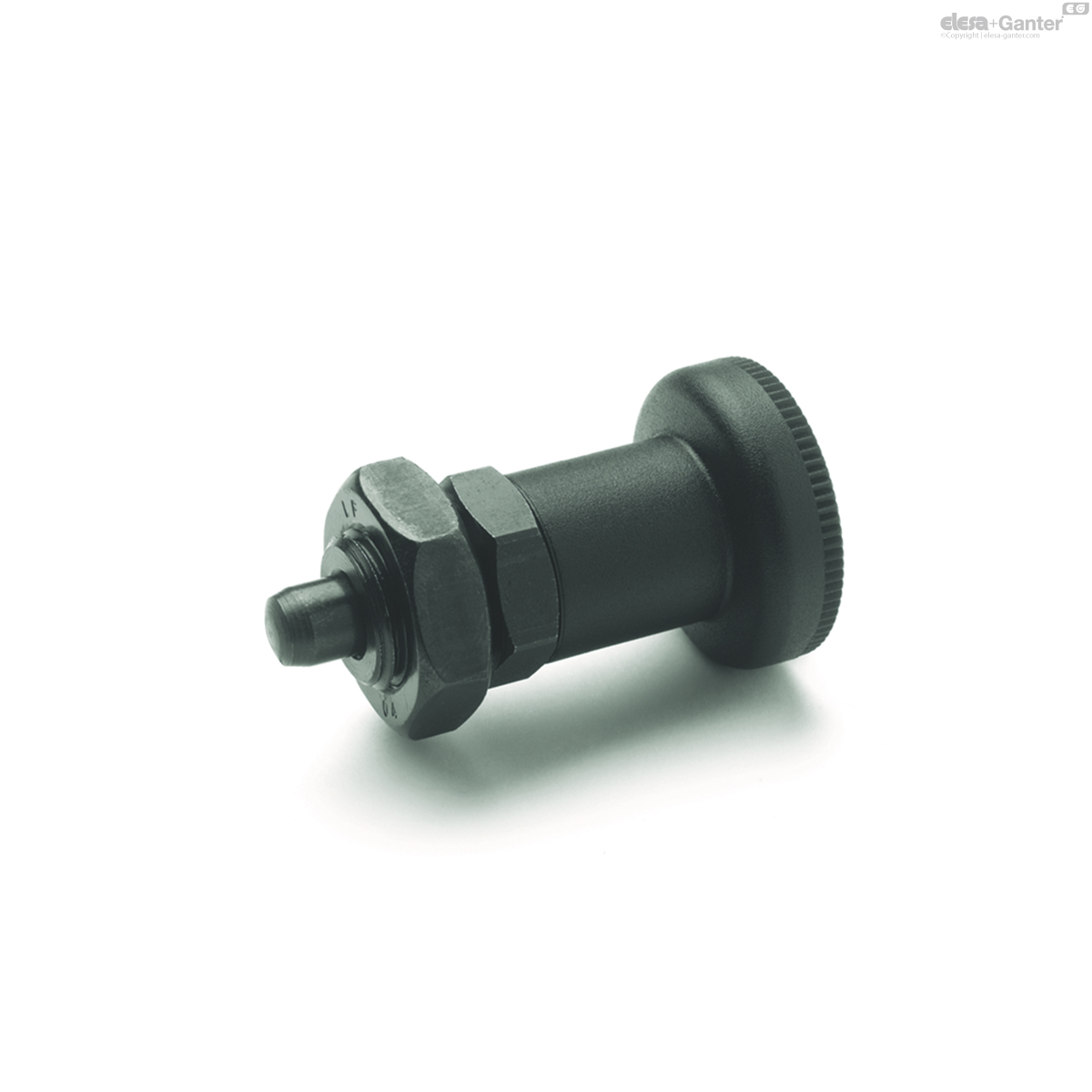

607-6-A-ST GN 607 Indexing plungers, Steel

607-6-A-ST

GN 607 Indexing plungers, Steel

Steel / Stainlees Steel, without rest position
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

In stock All sizes and variants of GN 607

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 607-6-A-ST
d1 Pin -0.02/-0.05 Bore H7
6
d2
M 12 x 1.5
d3
25
e ≈
19.6
l1
45
l2 ±0.5
6
l3 -0.15
10
l4
5
A/F
17
Spring load in N ≈
initial
11
Spring load in N ≈
end
28
Axial load in N
400
35

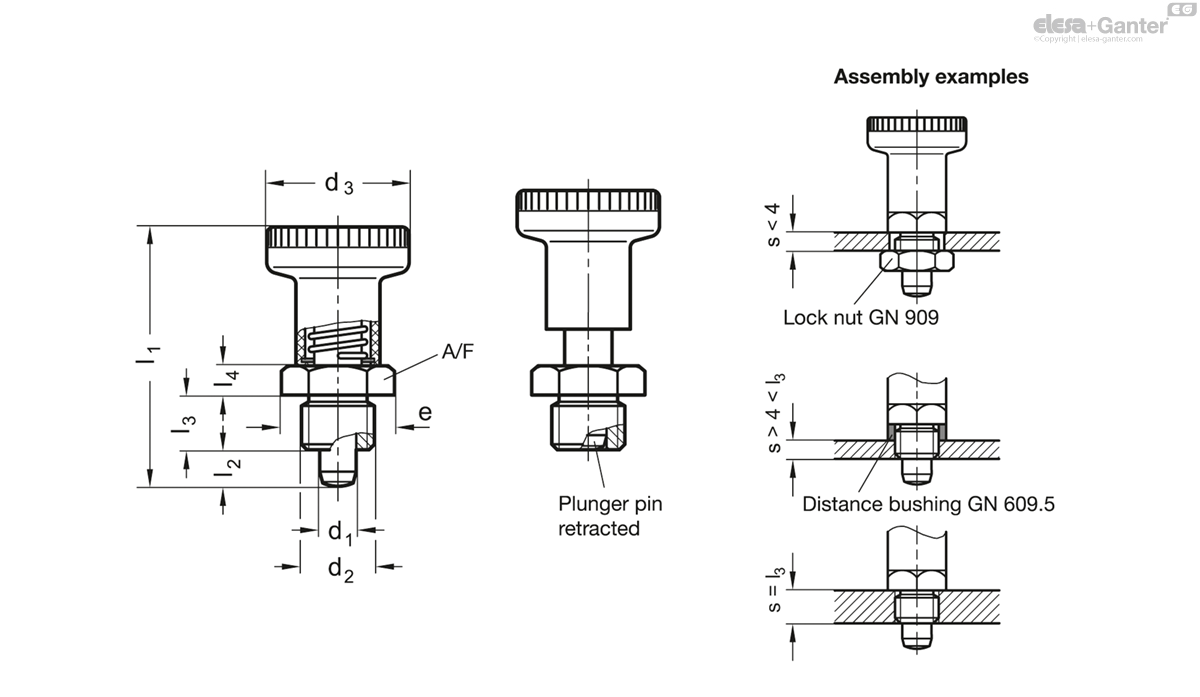

607-6-A-ST drawing

Types

  • Type A: without lock nut
  • Type AK: with lock nut

Version in Steel ST

  • blackened
  • Pin hardened

Version in Stainless Steel AISI 303 NI

Pin chemically nickel plated

Knob

Plastic (Polyamide PA)

  • black, matt
  • not removable

Indexing plungers GN 607 are distinguished for their small dimensions. The extremely low luck nuts GN 909 / GN 909.5 enlarge the mounting options.
