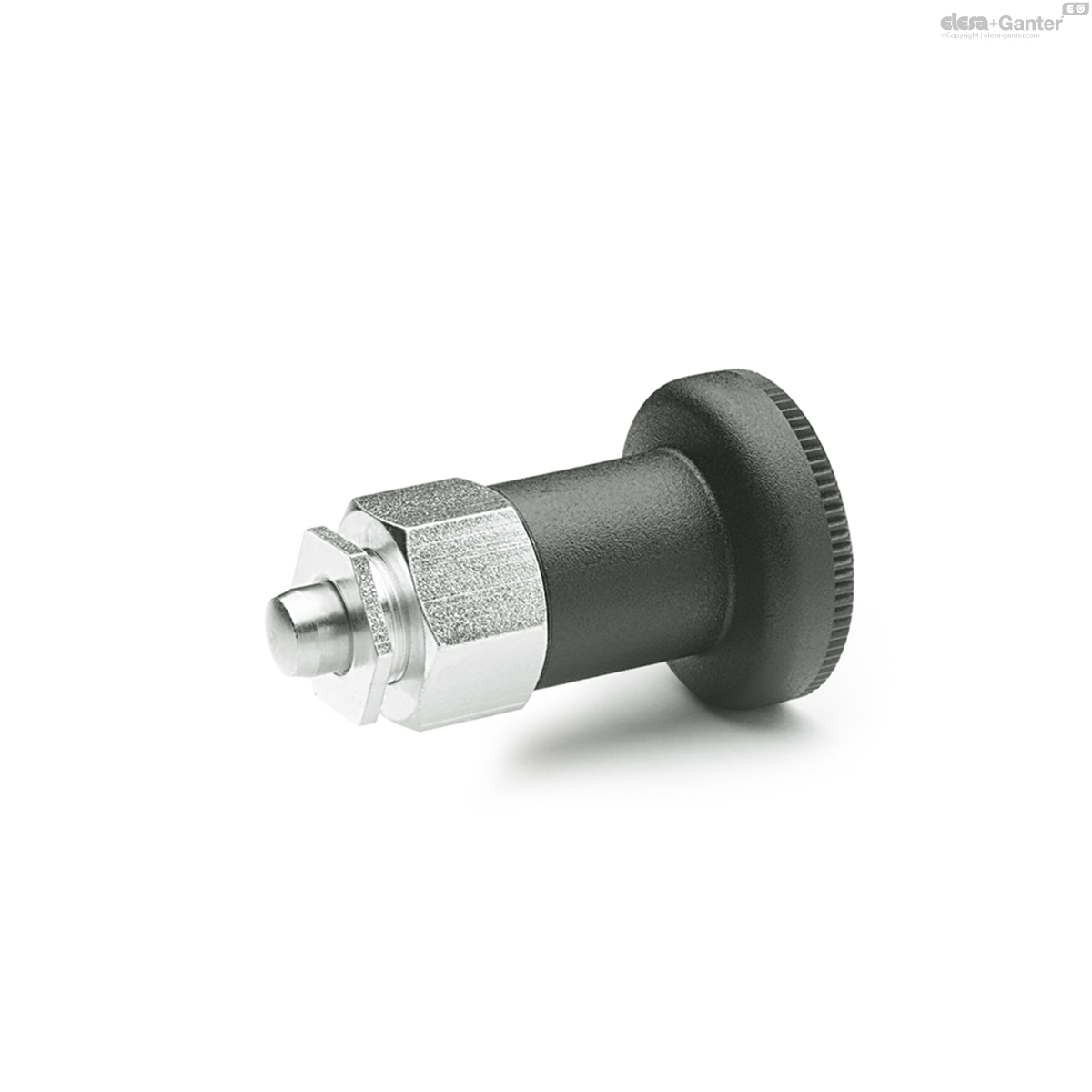

607.3-6-10,5-ST GN 607.3 Indexing plungers

607.3-6-10,5-ST

GN 607.3 Indexing plungers

for installation in thin walled equipment, with rest position
  • Icons/__logo__RoHS__.png

In stock All sizes and variants of GN 607.3

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 607.3-6-10,5-ST
d1 Pin -0.02/-0.04 Bore G7
6
d1 Pin -0.02/-0.05 Bore G7
6
d1 Pin -0.02/-0.05 Bore H7
6
l1
10.5
d2
25
d3
10
e
19.5
l2
34
l3
10
l4
6
s
3 … 5
A/F 1
17
A/F 2
14
Spring load in N ≈
initial
10
Spring load in N ≈
end
24
Axial load in N
400
39

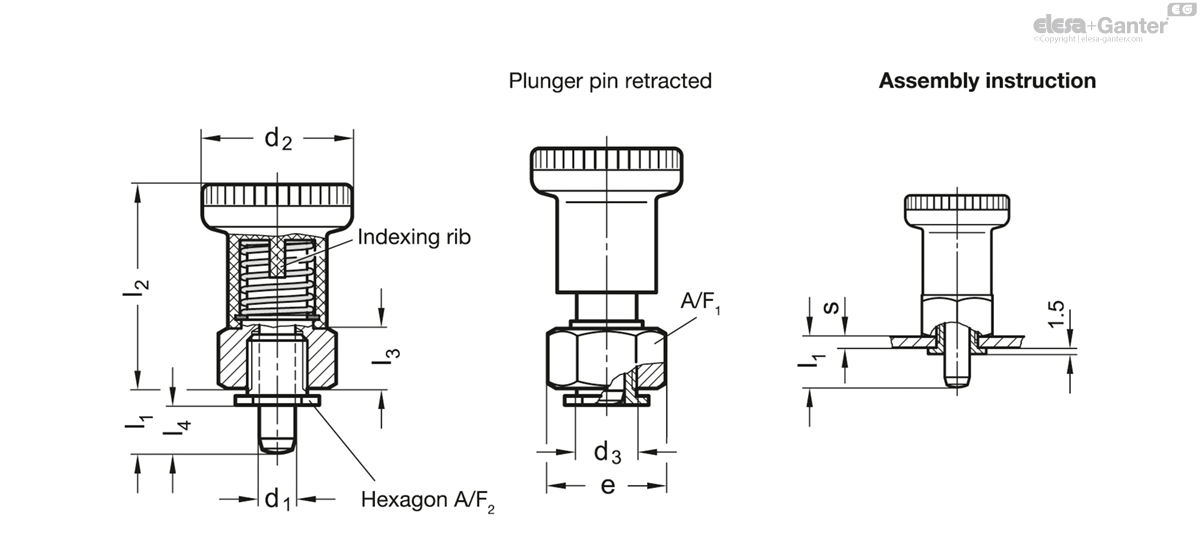

607.3-6-10,5-ST drawing

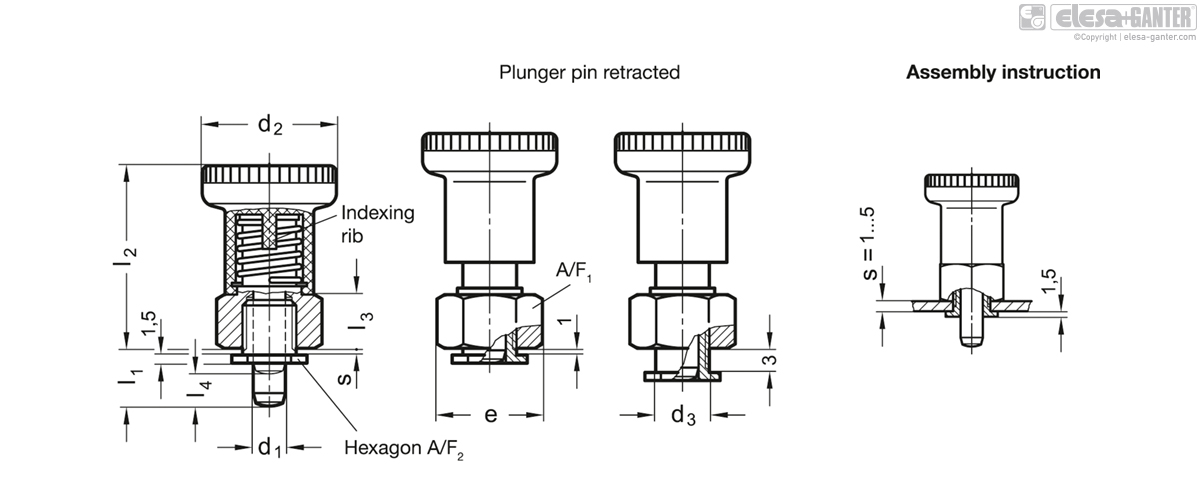

607.3-6-10,5-ST drawing

Guide Steel ST

zinc plated, blue passivated

Pin Stainless Steel AISI 303

chemically nickel plated

Knob Plastic (Polyamide PA)

  • black, matt
  • not removable

Indexing plungers GN 607.3 have been developed for installation in thin walled equipment.

It has to be taken into consideration that, depending on the mounting plate thickness 's', the protruding plunger length 'l1' and the position of the hexagon nut on its centre bush, the plunger nose might not always be fully retractable.

For design reasons the positional accuracy of this indexing plunger is not as precise as plunger GN 607 .

Indexing plungers with rest position are used for such applications where the plunger pin has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.

  • Double ring spanner GN 607.9 -SW14-SW16 (assembling aid)
