598-ST-23-M10

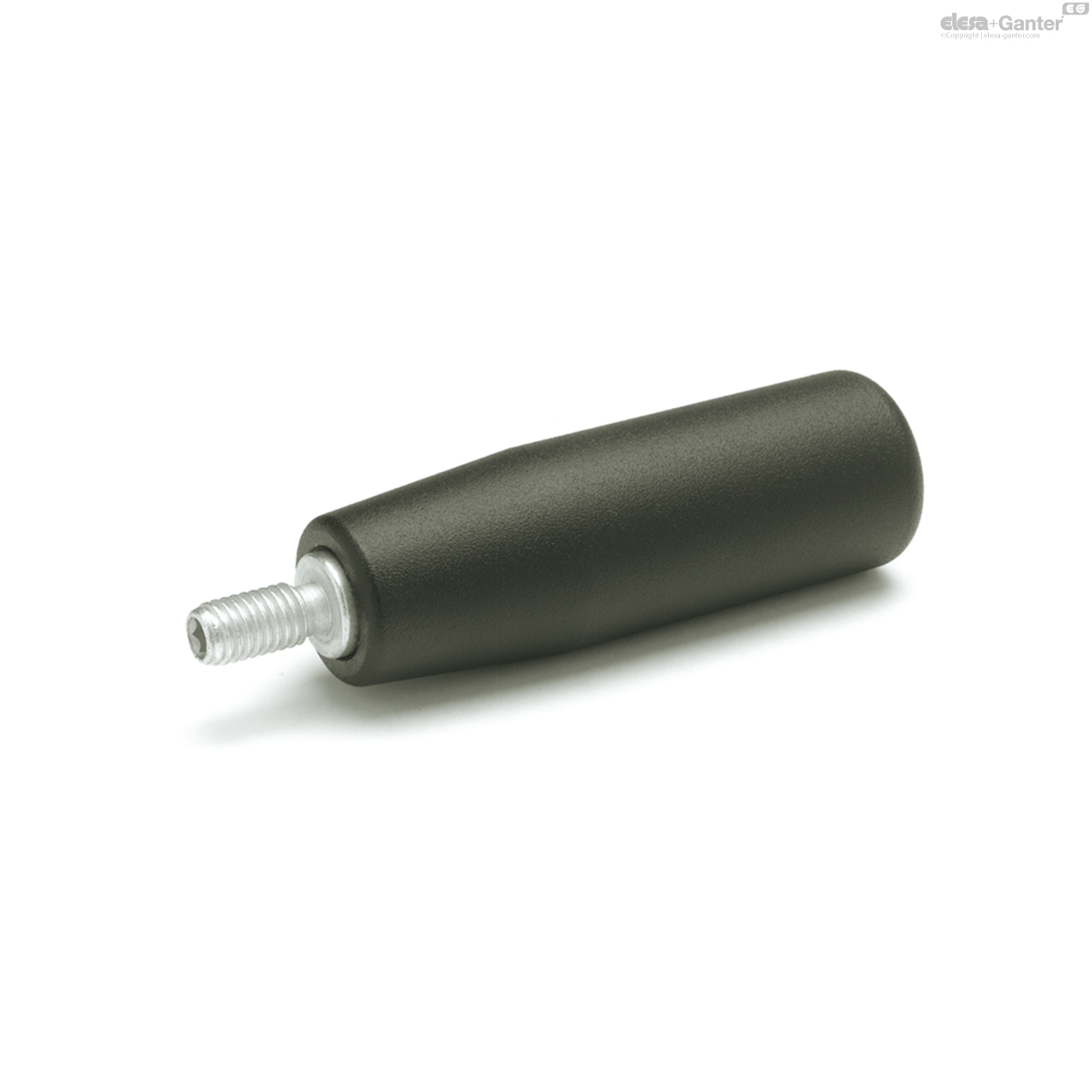

GN 598 Revolving Handles
Steel, Spindle Steel
Eta: 1-2 weeks All sizes and variants of GN 598
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet

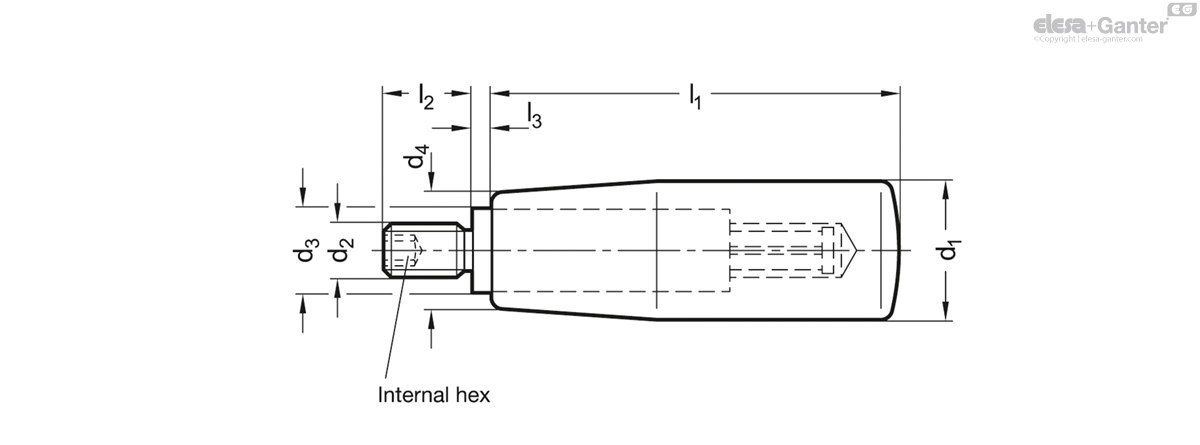

Technical data
- Catalogue
- GN 598-ST-23-M10
- d1
- 23
- d2
- M 10
- d3
- 13
- d4
- 19
- l1
- 65
- l2
- 14
- l3
- 2.5
- 190
Handle
Steel ST
Powder coated
Black, textured finish
Spindle
Steel
Zinc plated, blue passivated
Steel revolving handles GN 598 are mainly used on safety handwheels to increase imbalance and thus avoid free wheeling.
