558-135-B22 GN 558-B Without keyway

558-135-B22

GN 558-B Without keyway

Cast Iron
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 558

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 558-135-B22
Length l
135
d1 H7 bore
22
d2
42
h
32
b P9
6
t
23.7
823

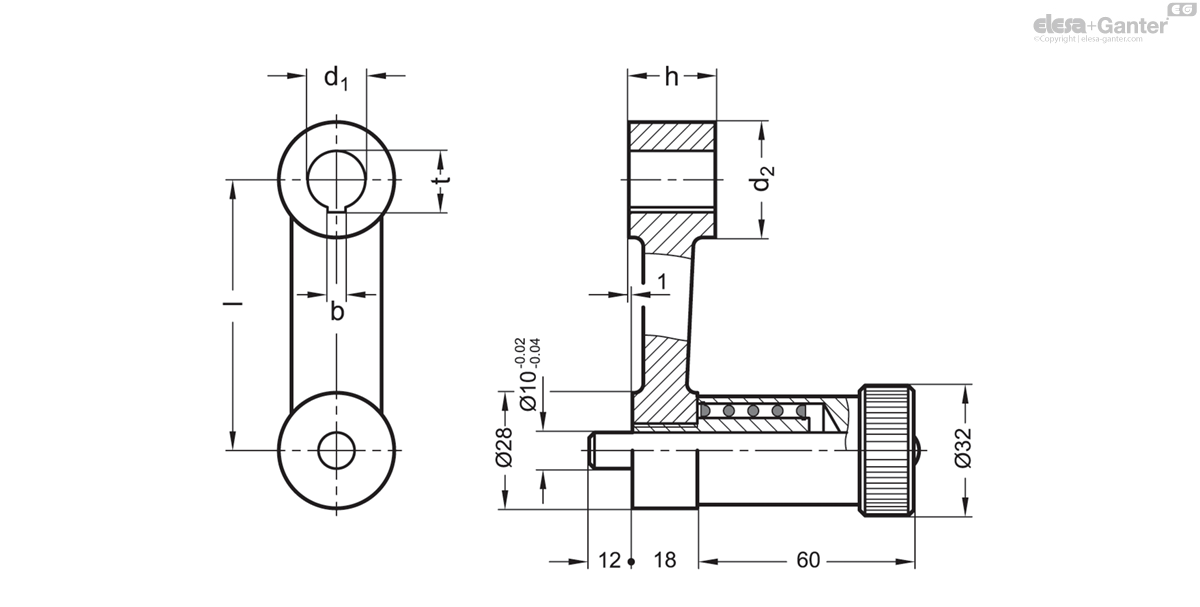

558-135-B22 drawing

Bore codes

  • Version B: Without keyway
  • Version K: With keyway DIN 6885-2 P9

Body

Cast iron (GGG)

  • Hub machined, flash
  • Ground, shot-blasted

Handle

Steel, blackened

Indexing pin

Steel, hardened

Indexing cranked handles GN 558 are for positioning mechanisms.

Other standard machine elements for positioning of spindles:

Indexing Mechanisms GN 200

Indexing Levers GN 215

Adjustable Knobs GN 700 (with Stepless Positioning)
