537-22-28-B GN 537 Oil level sight glasses

537-22-28-B GN 537 Oil level sight glasses

Aluminium / Perspex / without thread
All sizes and variants
  • g8030
  • RoHS

Expected delivery time 5-7 working days

Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 537-22-28-B
d1 Window glass
22
d2 Bore Ø
28
b min.
10
d3
35
d4
3
e ±0.1
30
h
6
l1
15
l2
4.5
Code no.
pin key
for installation
GN 537.1-30
weight
17

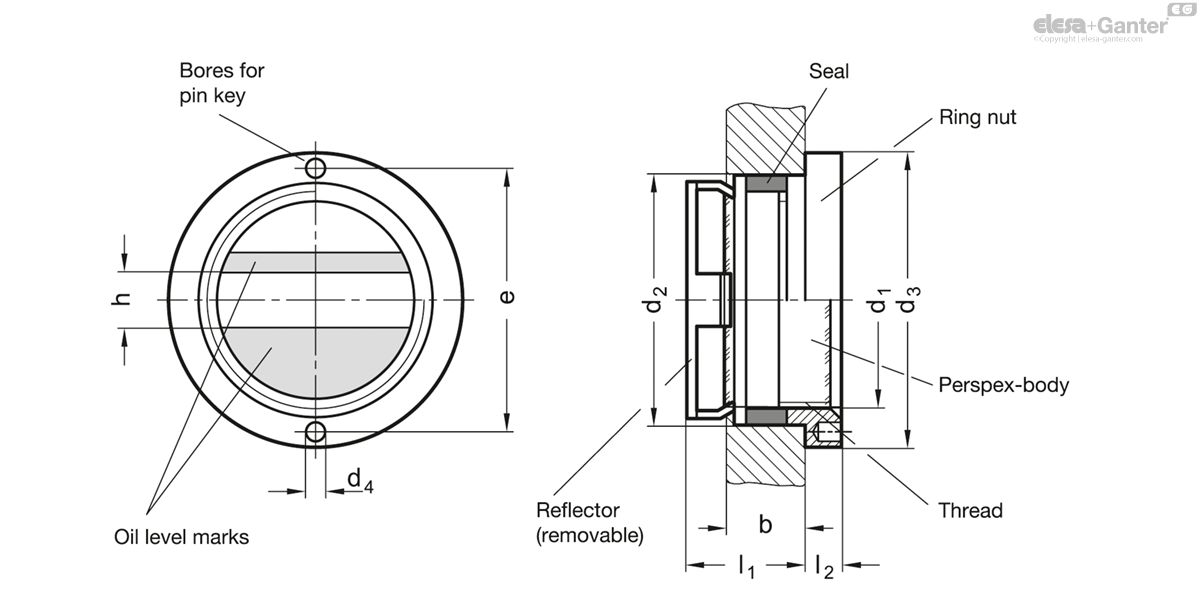

537-22-28-B drawing

Types

  • Type A: without oil level mark
  • Type B: with oil level mark

Ring nut

Aluminium

Sight glass

Perspex (PMMA)

temperature resistant up to 80 °C

Sealing ring

Rubber NBR (Perbunan)

Contrast screen

Plastic

white, with red oil level marks

This oil level glass GN 537 does not require a thread.

The oil level sight glass is inserted into the bore d2 to H11. By simply tightening the ring nut using the pin key the seal is pressed against the contact surface which, at the same time, will hold the sight glass in position. For removal reverse the procedure.

Their application is limited to non-pressurised or only slightly pressurised tanks.

  • Pin key for installation GN 537.1 (Code no. see table)
