5339.5-40-M8-E-MT GN 5339.5 Triangular Knobs

5339.5-40-M8-E-MT

GN 5339.5 Triangular Knobs

  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

In stock All sizes and variants of GN 5339.5

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 5339.5-40-M8-E-MT
d1
40
d2
M 8
d4
14
h1 ≈
26
h2 ≈
14
t1 min.
15
100

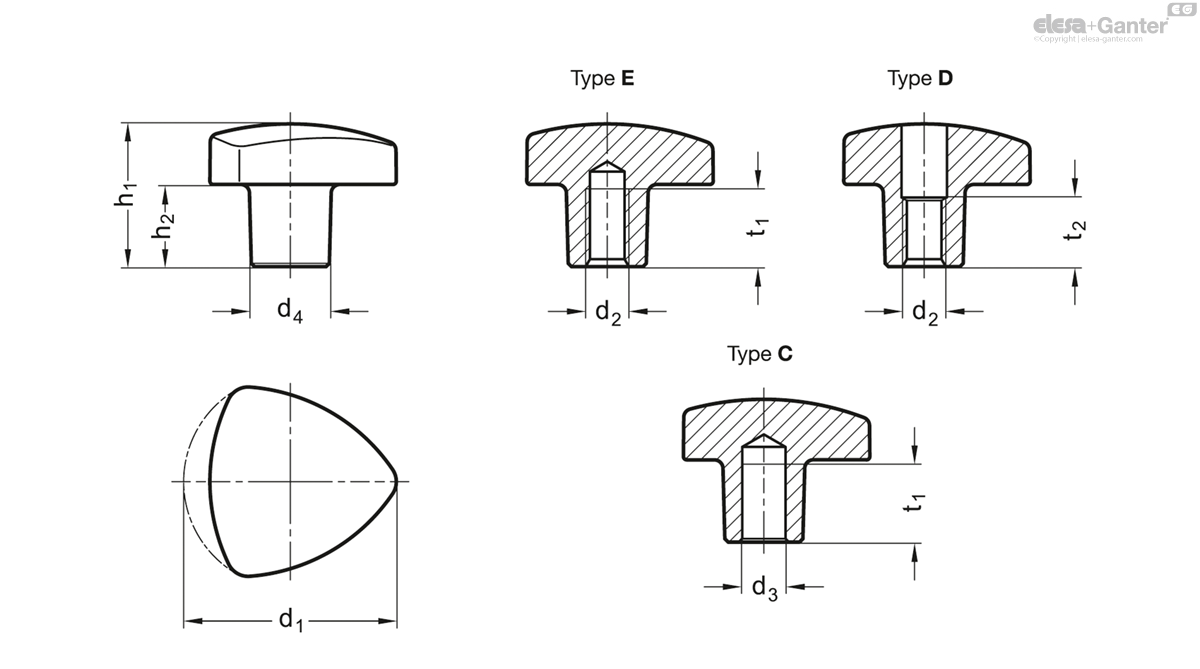

5339.5-40-M8-E-MT drawing

Types

  • Type E: with threaded blind bore
  • Type D: with threaded through bore
  • Type C: with plain blind bore H7

Stainless Steel precision casting

  • AISI CF-8
  • matt shot-blasted MT
  • highly polished PL (only type D and E)

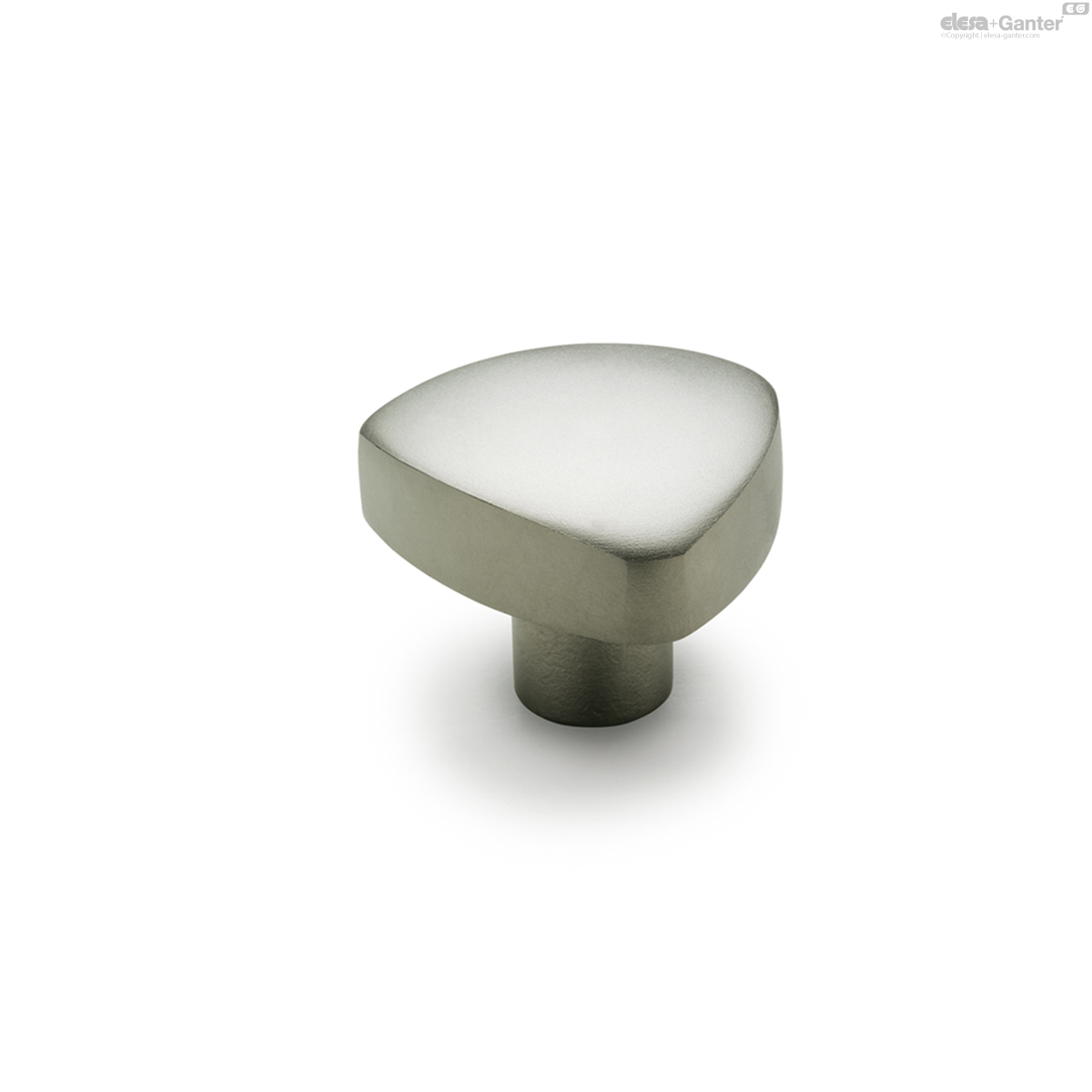

Stainless Steel-Triangular knobs GN 5339.5 have been specially designed for use on machinery in the food industry.

The smooth and enclosed areas as well as the corner radii comply with the requirements of hygiene standards.

Original ELESA-Design, manufactured in metal version under permission of ELESA s.p.a.
