513-M20X1,5-H-2
GN 513 Spring elements
Eta: 1-2 weeks All sizes and variants of GN 513
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 513-M20x1,5-H-2
- d1
- M 20 x 1.5
- d2
- 14.5
- d3
- M 6
- d4
- 11.4
- e
- 10
- l1
- 47
- l2
- 33
- l3
- 4
- l4
- 10
- r
- 7.2
- s1
- 9
- s2
- 12
- Spring load
in N ≈
initial - 65
- Spring load
in N ≈
end - 200
- 66

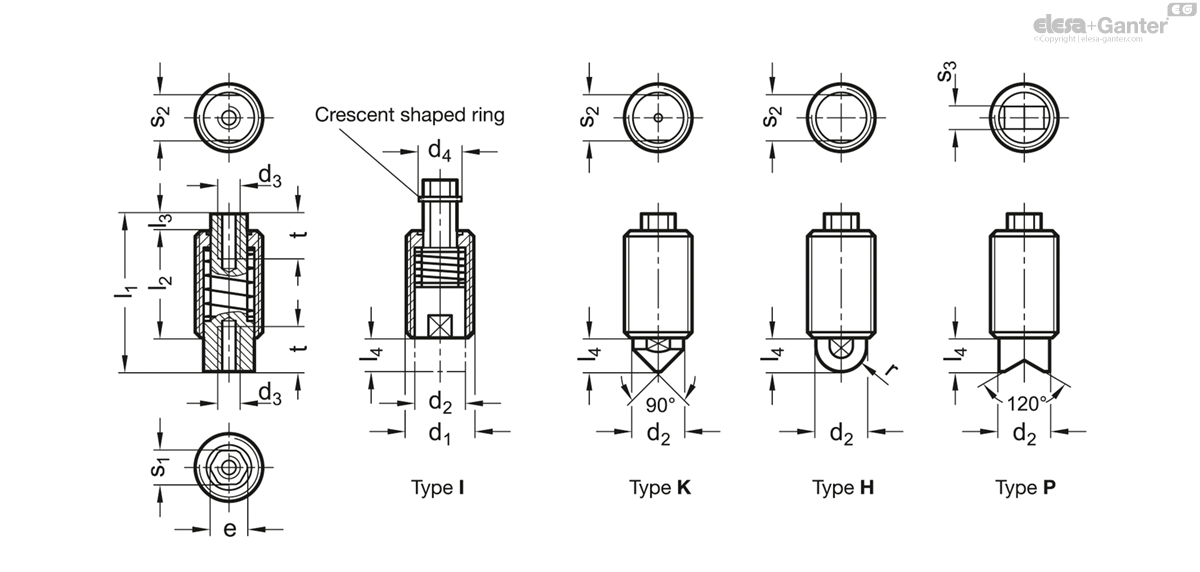

Types
- Type I: Female thread
- Type K: Pointed nose
- Type H: Semi-spherical, Steel
- Type P: Prism (120°)
Identification No.
- Version 1: standard spring load
- Version 2: high spring load
Steel
Threaded sleeve
zinc plated, blue passivated
Spring bolt
case hardened, blackened
Identification
standard spring load:
Crescent shaped ring
phosphated (anthracite)
high spring load:
Crescent shaped ring
zinc plated, blue passivated
Spring elements GN 513 are universal pressure elements used as detents, positioners or for clamping with spring pressure. The spring loaded nose can be used for a push-on or push-off operation. In addition the spring loaded nose cannot rotate.
At the pulling end the female thread will accept a pulling rod or an operating knob.
Type I with a female thread at the pushing end can be fitted with a special plunger nose.
The spring element can be screwed into a thread at the hexagon on the pulling end or the spanner flats at the pushing end of the plunger.
