508.1-8-M6 GN 508.1 Rhombus T-Nuts

508.1-8-M6

GN 508.1 Rhombus T-Nuts

  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 508.1

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 508.1-8-M6
a -0.3/-0.5
8
d
M 6
e -0.5
13
h
10
k -0.5
6
T-Slot width DIN 650
8
5

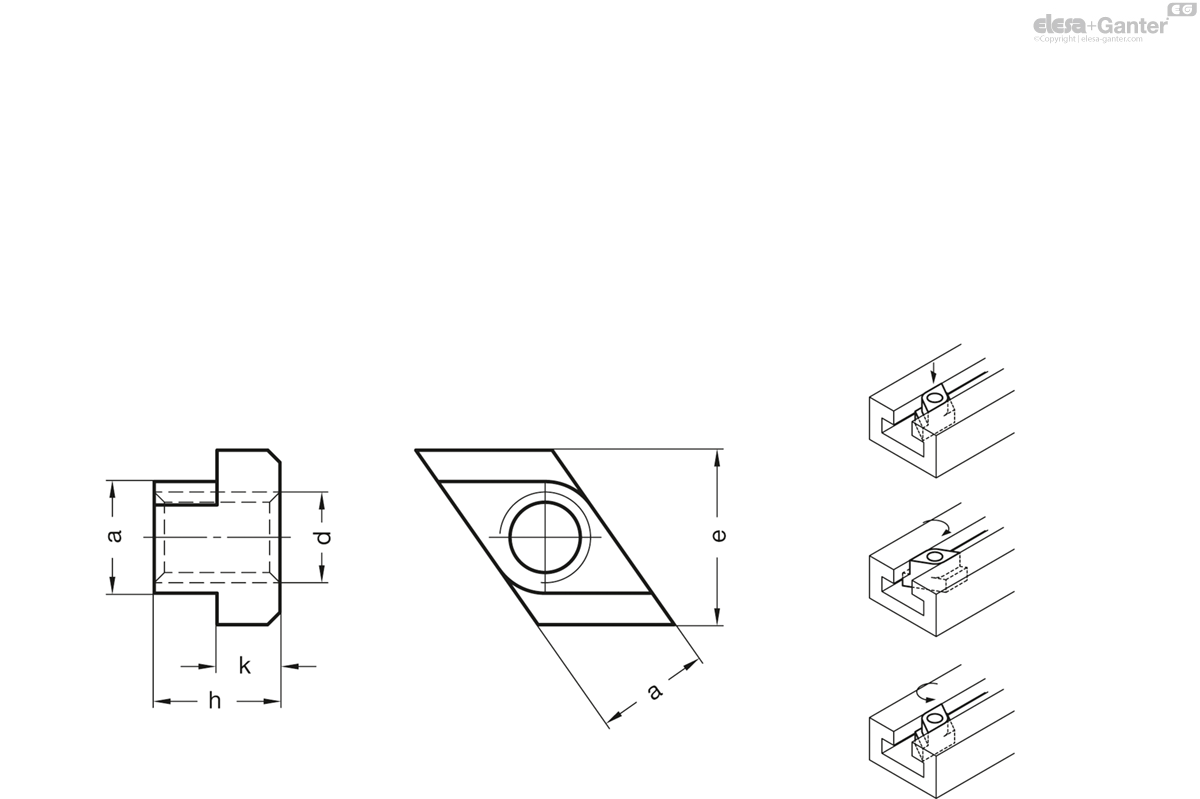

508.1-8-M6 drawing

Heat-treated steel

  • Tensile strength class 10
  • blackened

Rhombus T-Nuts GN 508.1 can be inserted vertically into the T-Slot.
