508.1-18-M16

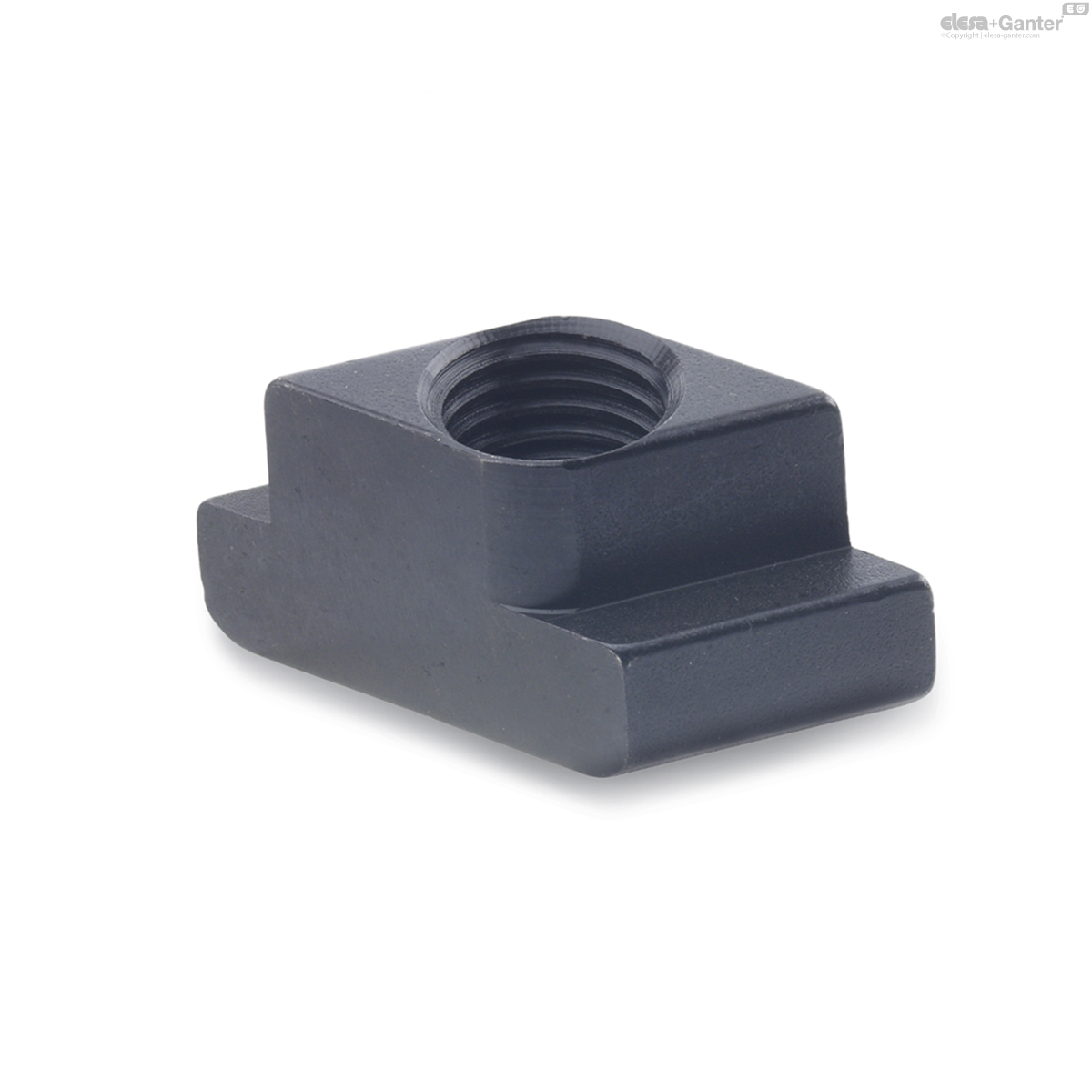

GN 508.1 Rhombus T-Nuts
In stock All sizes and variants of GN 508.1
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 508.1-18-M16
- a -0.3/-0.5
- 18
- d
- M 16
- e -0.5
- 28
- h
- 20
- k -0.5
- 10
- T-Slot width DIN 650
- 18
- 44
Heat-treated steel
- Tensile strength class 10
- blackened
Rhombus T-Nuts GN 508.1 can be inserted vertically into the T-Slot.
