471-80-V10 GN 471-S Square

471-80-V10

GN 471-S Square

Aluminum
  • Icons/__logo__RoHS__.png
  • Icons/__logo__IF__.png

Eta: 1-2 weeks All sizes and variants of GN 471

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 471-80-V10
Length l
80
s H11 Square
V 10
d2
23
d3
26
h1
24
h2
14
h3
14
h4 ≈
52.5
Ø Handle
21
89

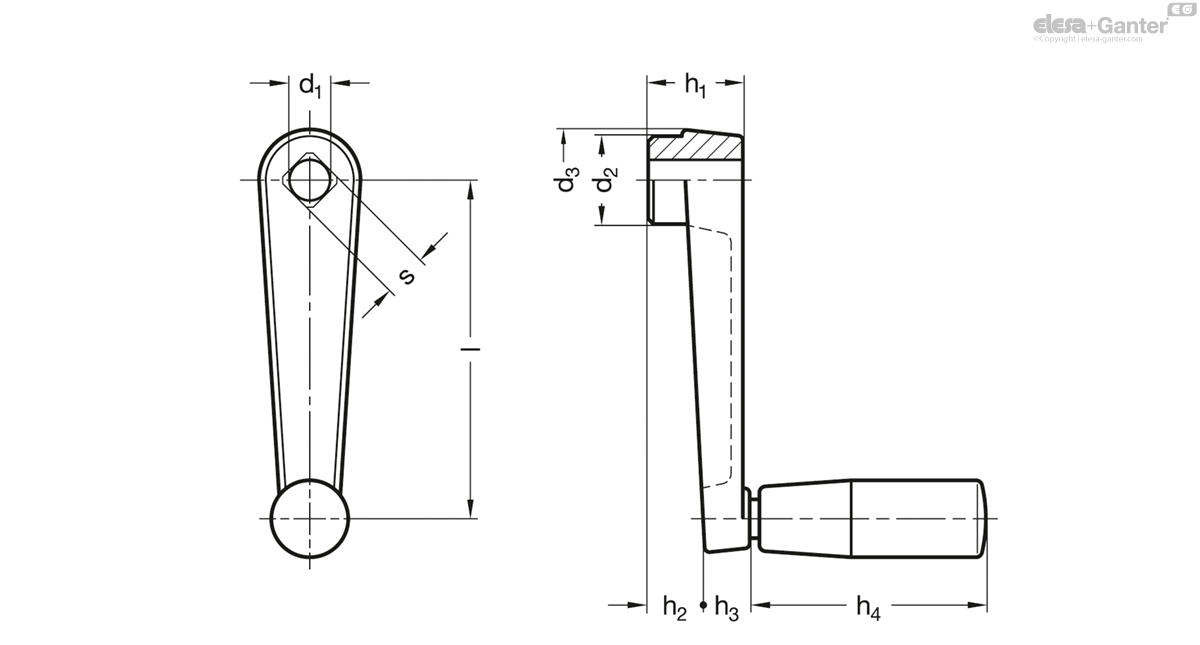

471-80-V10 drawing

Body

Aluminum

  • Powder coated
  • Black, textured finish
  • Contact face of hub machined

Revolving handles

Plastic, Polypropylen (PP)

  • Black, matte finish
  • Spindle steel
  • Zinc plated, blue passivated

Cranked handles GN 471 are used for making adjustments or driving mechanisms.

The crank movement is transmitted via the revolving cylindrical handle. The revolving handle body can be held firmly and securely while cranking.

Cranked handles can also be ordered with cross holes GN 110.
