471.3-100-B12 GN 471.3-B Bore

471.3-100-B12

GN 471.3-B Bore

Aluminum
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 471.3

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 471.3-100-B12
l
100
d1 H7 bore
B 12
d2
27
d3
30
h1
28
h2
17
h3
13
h4
19.5
h5 ≈
67.5
Ø Handle
23
160

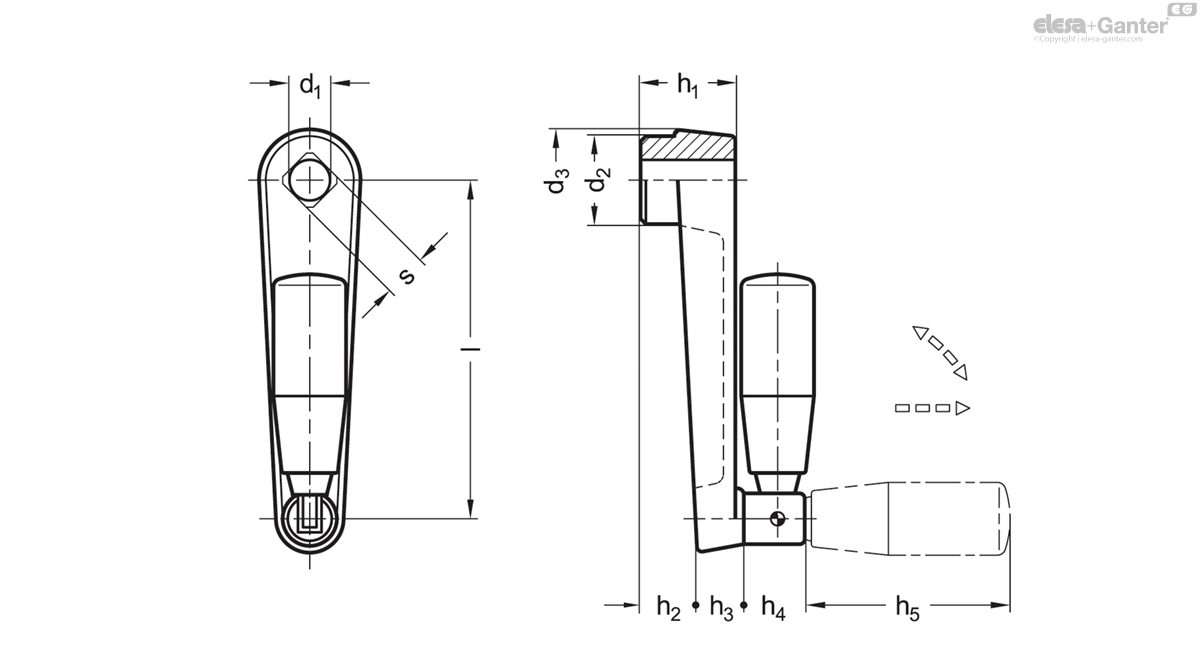

471.3-100-B12 drawing

Body

Aluminum

  • Powder coated
  • Black, textured finish
  • Contact face of hub machined

Retractable Handle GN 598.3

Plastic, Polyamide (PA)

  • Black, shiny finish
  • Retractable Mechanism
  • Steel, blackened

The handle of the cranked handles with retractable handle GN 471.3 is locked in a tapered bore in the operating position.

For tilting, the handle must first be pulled out of the taper in axial direction.

A pressure spring holds the handle in both end positions. When folded out, it automatically re-engages.

  • (Retractable Mechanism Stainless Steel)
