467-M6-NI DIN 467-NI Stainless Steel

467-M6-NI

DIN 467-NI Stainless Steel

Steel / Stainless Steel, Flat Type
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of DIN 467

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
DIN 467-M6-NI
d1
M 6
d2
24
d3
12
h
6
k
5
17

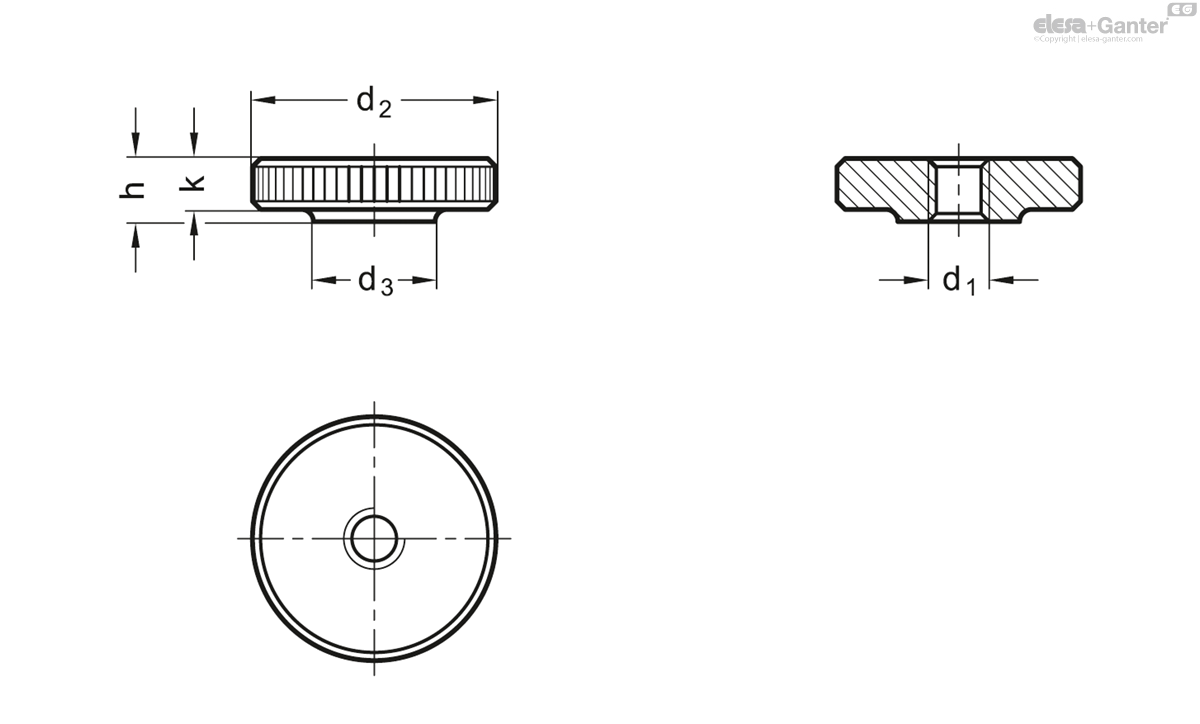

467-M6-NI drawing

Version in Steel

  • Property class 5
  • Visible face fine turned
  • Blackened
  • Zinc plated, blue passivated ZB

Version in Stainless steel

  • Stainless steel AISI 303 NI
  • Matte shot-blasted

Knurled nuts DIN 467 are suitable for universal use and can be tightened and loosened easily without tools. A nut with thread M12 is also available in addition to the types defined in the DIN standard.

  • Version in stainless steel (A4 quality)
