466-M12
DIN 466-ST Steel
Steel / Stainless Steel, High Type
In stock All sizes and variants of DIN 466
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet

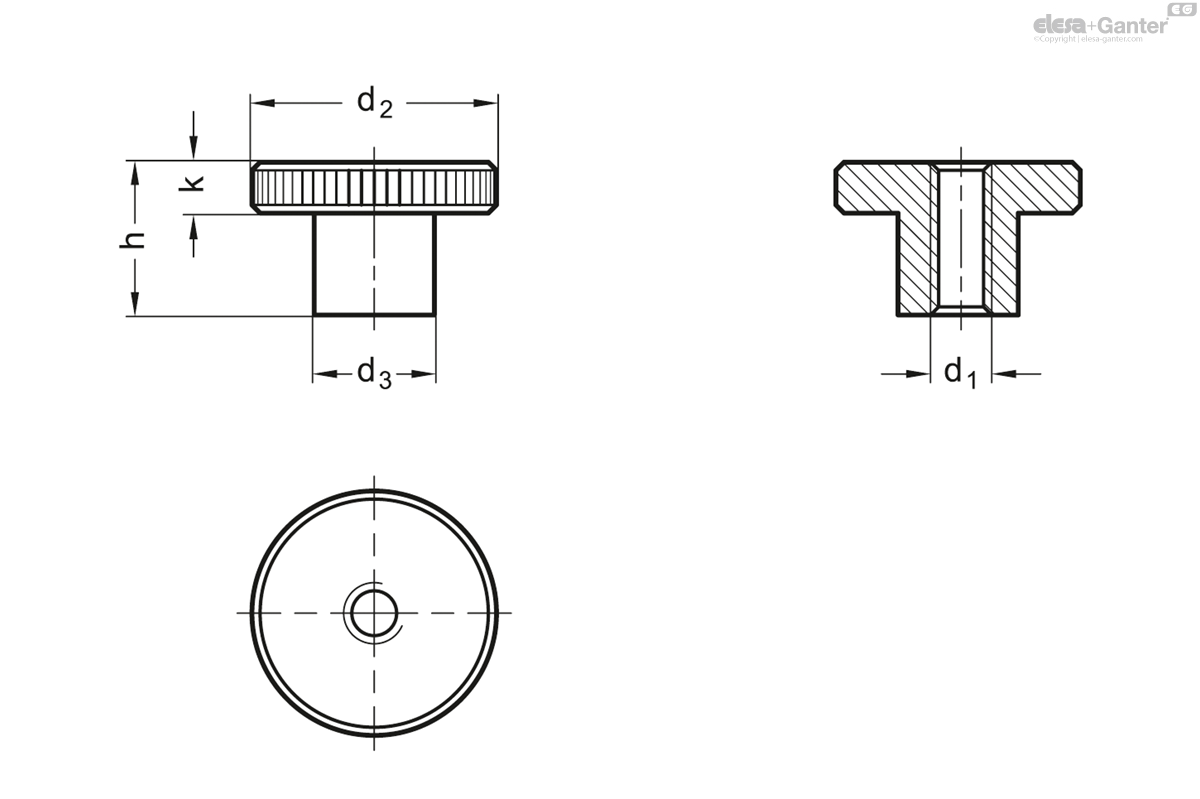

Technical data
- Catalogue
- DIN 466-M12
- d1
- M 12
- d2
- 40
- d3
- 22
- h
- 25
- k
- 10
- 120
Version in Steel
- Property class 5
- Visible face fine turned
- Blackened
- Zinc plated, blue passivated ZB
Version in Stainless Steel
- AISI 303 NI
- AISI 316L A4
- Matte shot-blasted
Knurled nuts DIN 466 are suitable for universal use and can be tightened and loosened easily without tools. A nut with thread M12 is also available in addition to the types defined in the DIN standard.
