444-M12-75 DIN 444 Steel

444-M12-75

DIN 444 Steel

Steel / Stainless Steel
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of DIN 444

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
DIN 444-M12-75
d1
M 12
l1
75
l2
40
d2 H7
12
d3 -0.3
25
s -0.15
14
d4
12
80

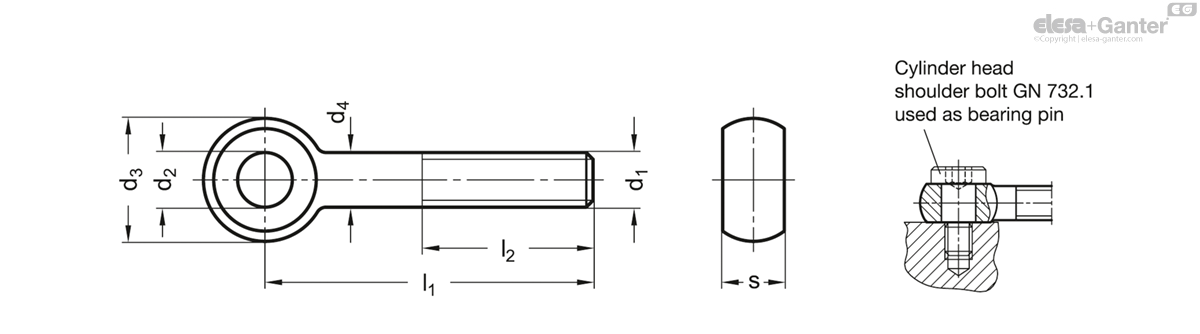

444-M12-75 drawing

Version in Steel

  • Tensile strength class 5.8
  • turned, thread rolled
  • blackened

Version in Stainless Steel AISI 303 NI

  • turned, thread rolled
  • matt shot-blasted

Precision type swing bolts DIN 444 are mainly used for jigs and fixtures.

For stocking purposes cylinder head shoulder bolts  GN 732.1 can be used for the sizes M6, M8, M10 and M12.
