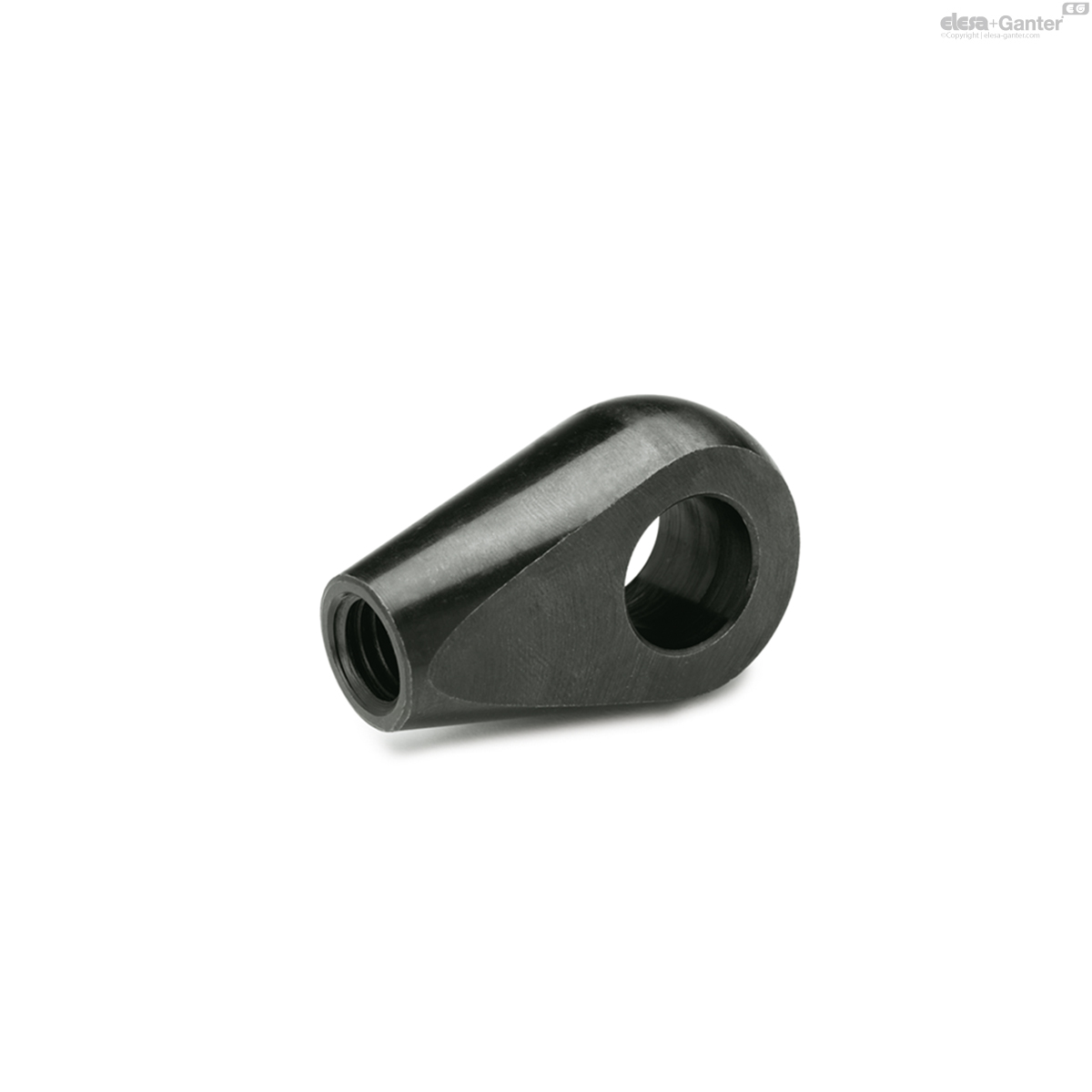

444.2-M10-12

In combination with grub screws i.e. DIN 913 or DIN 6379 and swing nuts GN 444.2  can be used together as swing bolts in varying lengths.

In addition, used with a cap screw DIN 912, a swivelling clamping screw can be produced.

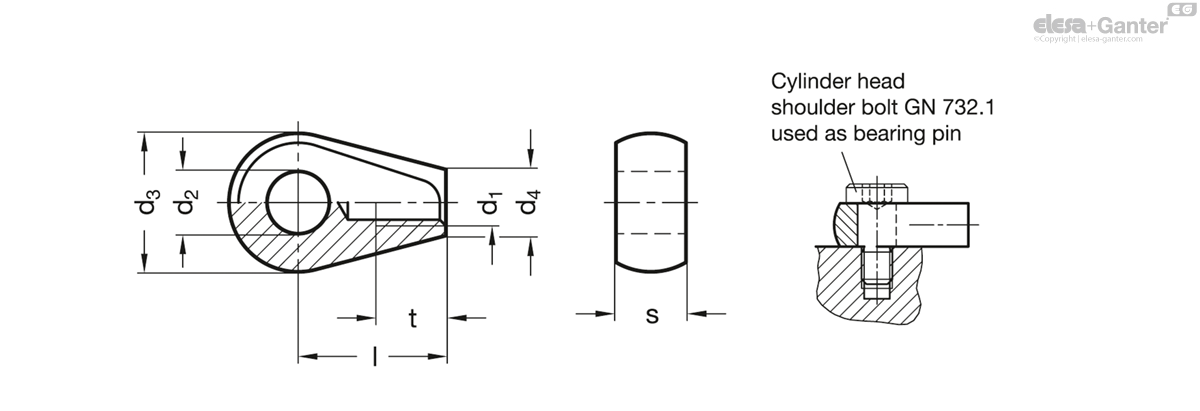

Dimensions d₂ ,d₃ and s are identical to DIN 444 .

For stocking purposes cylinder head shoulder bolts GN 732.1 can be used for the sizes M8, M10 and M12.
