431-25-M6-25 GN 431 Wing Screws

431-25-M6-25

GN 431 Wing Screws

  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 431

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 431-25-M6-25
d1
25
d2
M 6
l
25
d3
8
b
8
h
10
17

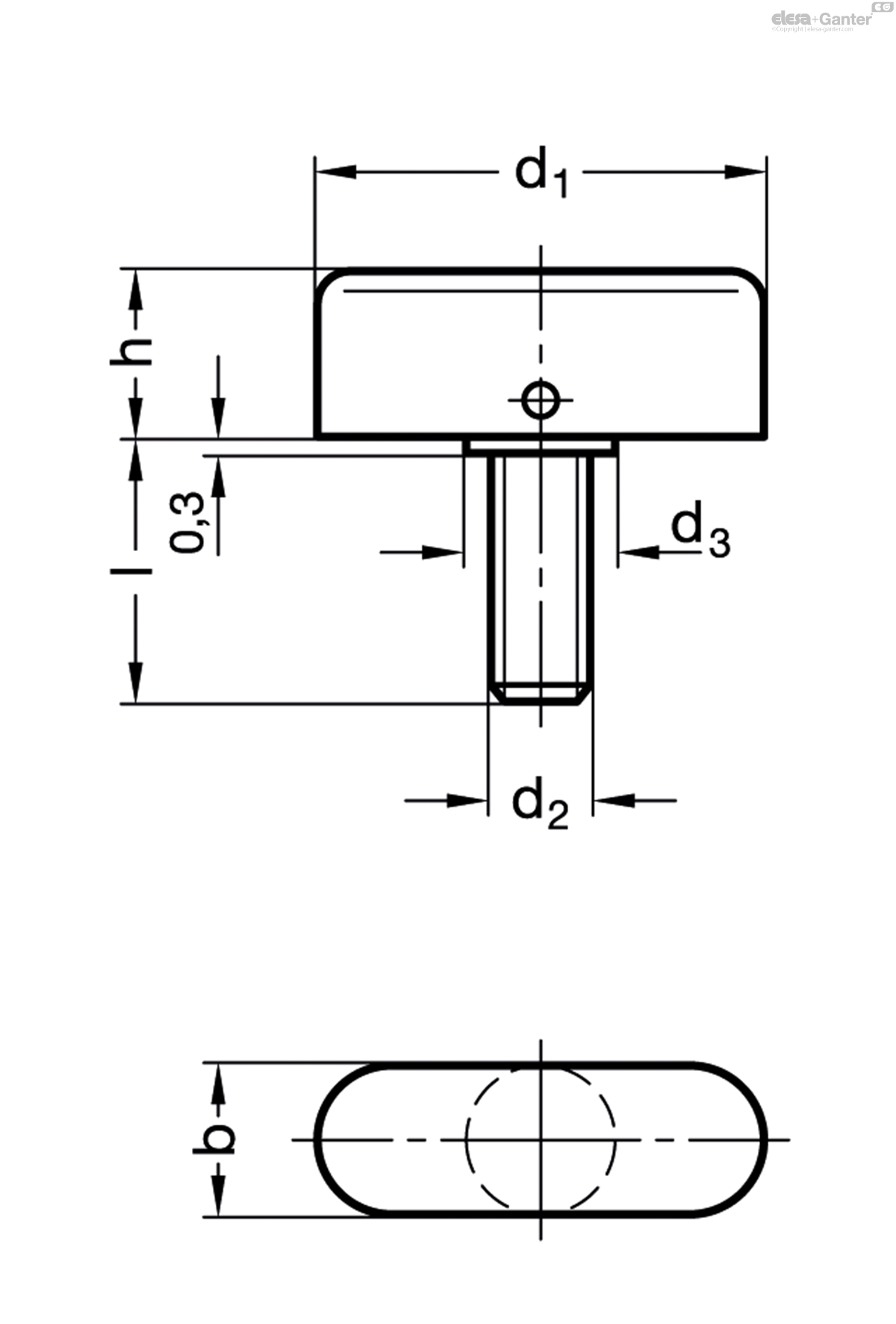

431-25-M6-25 drawing

Head

  • Stainless Steel AISI 316L (Sintered Steel)
  • matt shot-blasted

Threaded bolt

  • Stainless Steel AISI 304
  • matt shot-blasted
  • screwed in and secured by cross-dowel
