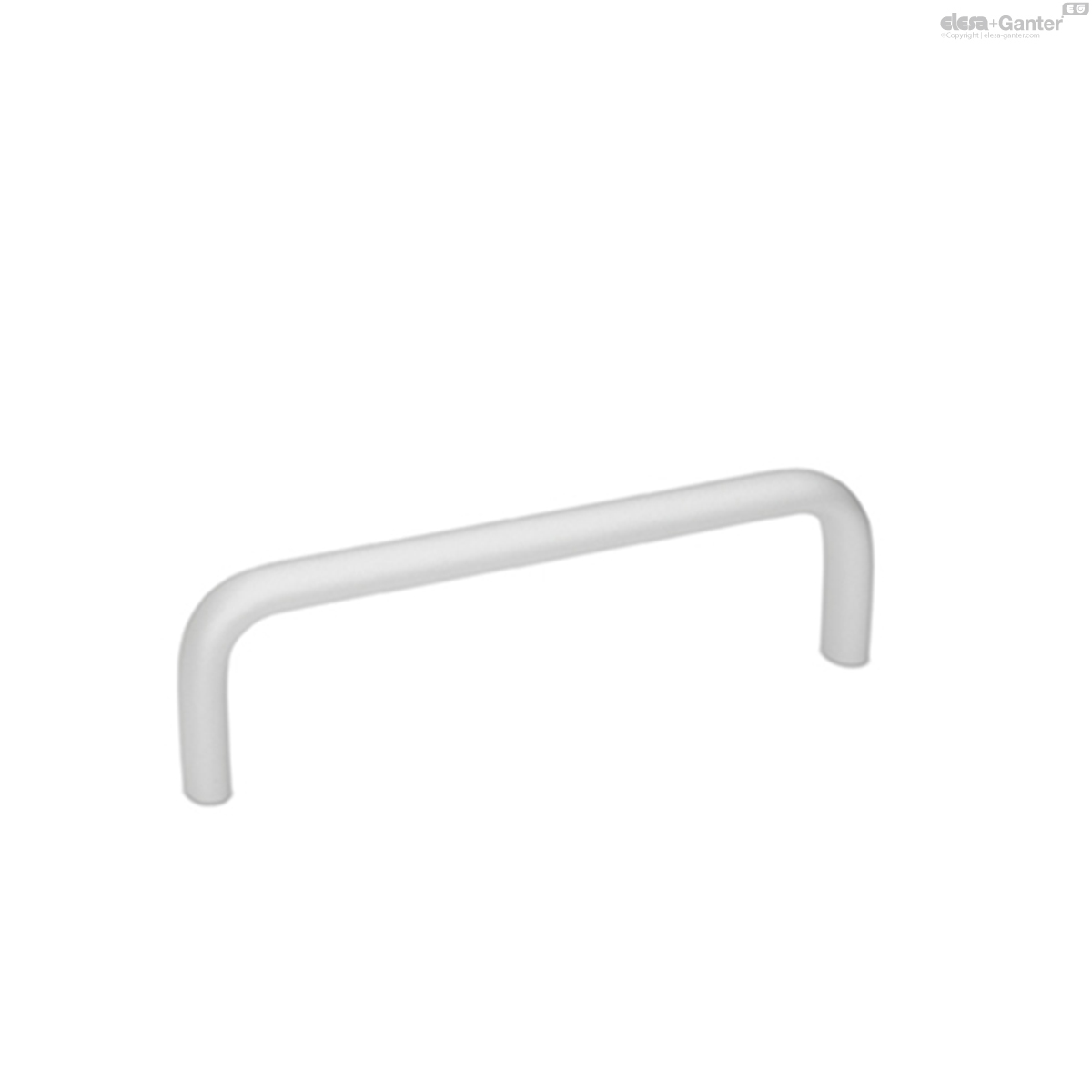

427-12-120-EL GN 427 Cabinet U-Handles

427-12-120-EL

GN 427 Cabinet U-Handles

Aluminum
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 427

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 427-12-120-EL
b
12
l ±0.25
120**
a
8
h
40
r
8
35

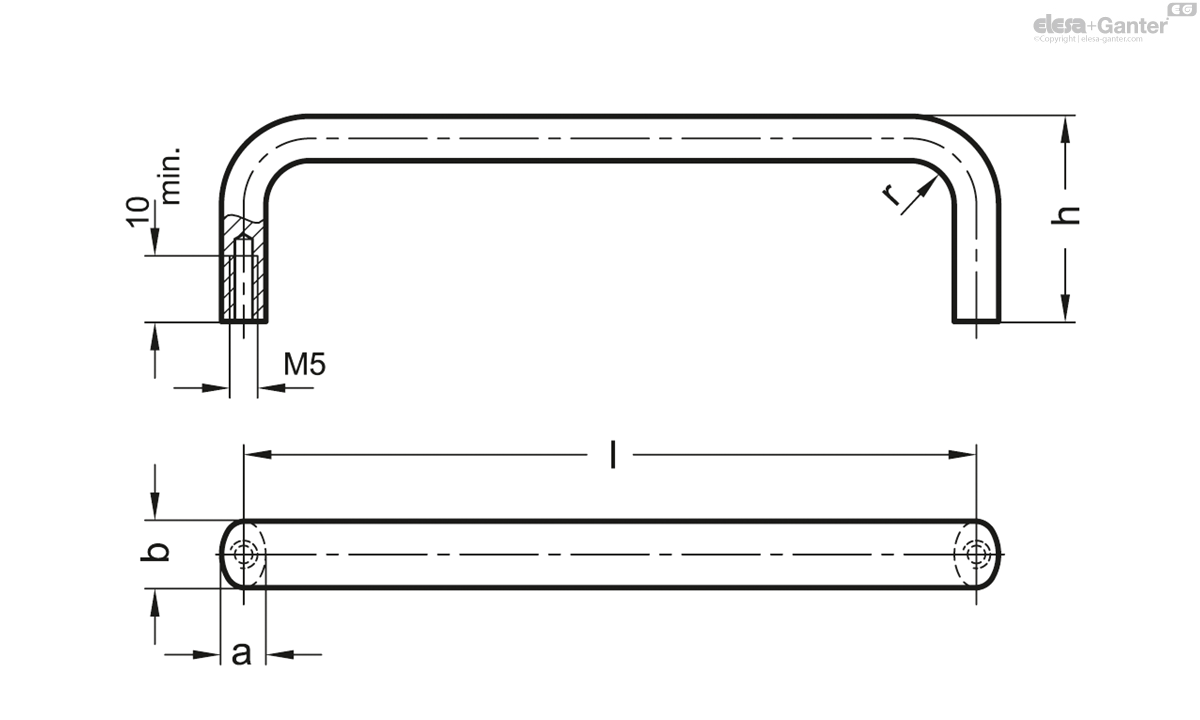

427-12-120-EL drawing
** suitable for 19“ rack and enclosure layout

Aluminium

plastic coated

black, RAL 9005, textured finish SW

silver, RAL 9006, textured finish SR

anodized, natural colour EL

Cabinet 'U' handles GN 427 are produced from profiled aluminum extrusions.

The manufacturing process (bending) allows the production of special lengths in relatively small quantities.
