346-20-M10 GN 346 Ball joint thrust pads

346-20-M10

GN 346 Ball joint thrust pads

  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 346

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 346-20-M10
d1
20
d2
M 10
l1 ≈
22
l2
8
t min.
11
A/F
15
Static load
in kN
7.5
32

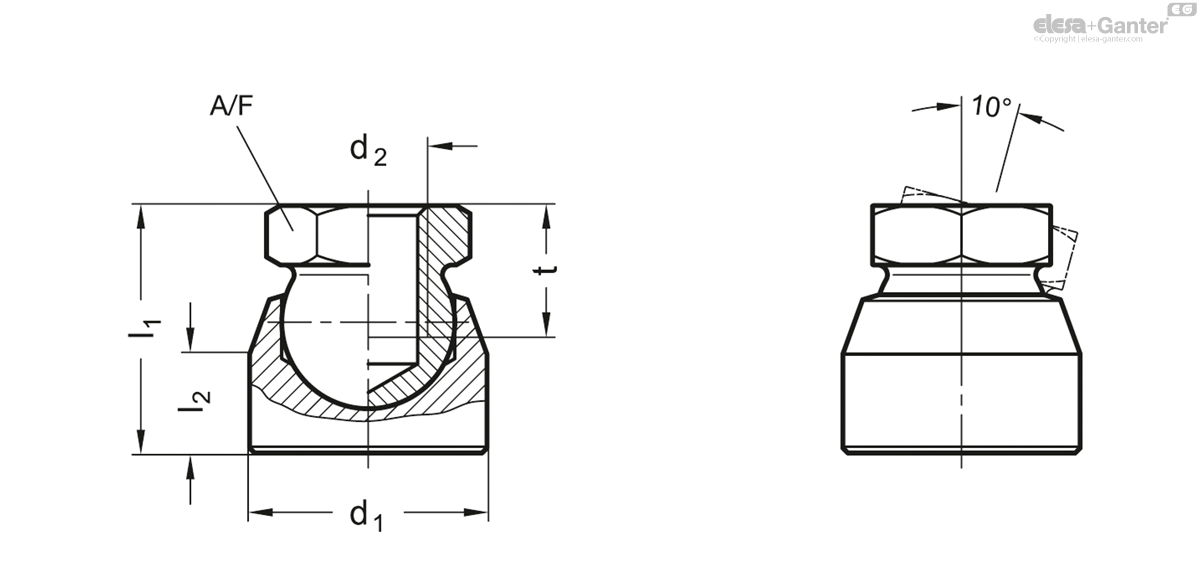

346-20-M10 drawing

Steel

  • Tensile strength class 5.8
  • zinc plated, blue passivated

Ball joint thrust pads GN 346 are in general used for transfer of clamping forces. They adjust themselves to uneven or non-parallel surfaces and clamp without twisting the clamped parts.

The values were arrived at by a series of tests whereby a limited number of ball joint pads were subjected for a limited time to a vertical static load to the pads.

At the values given in the table a permanent deformation of the ball is almost impossible.

Ball joint thrust pads GN 346 can also be used as levelling feet with a small foot diameter.
