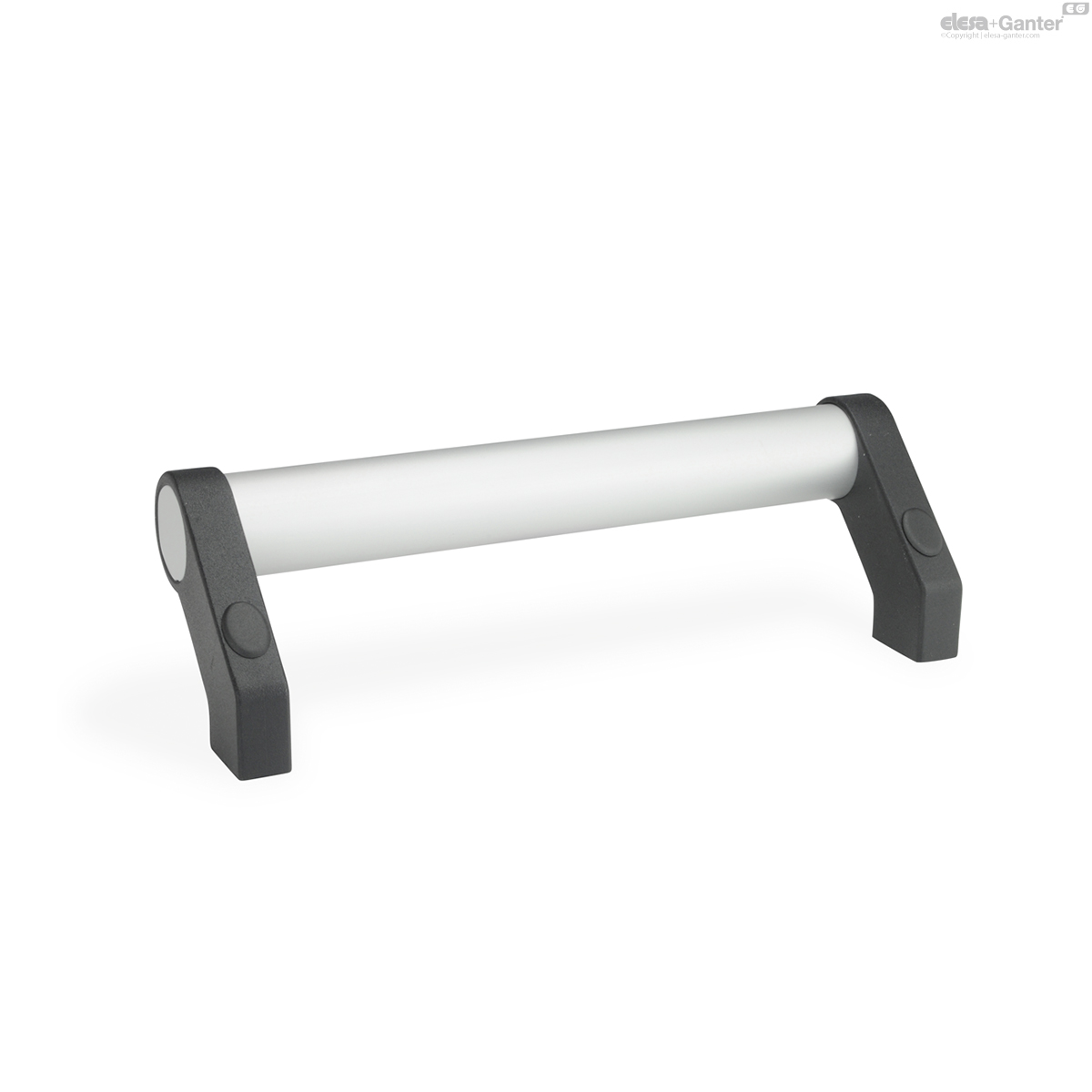

333-28-250-B-EL GN 333-B Mounting from the operator‘s side (only for d<sub>1</sub> = 28)

333-28-250-B-EL

GN 333-B Mounting from the operator‘s side (only for d<sub>1</sub> = 28)

Tube Aluminum, Legs Zinc Die Casting
  • Icons/__logo__RoHS__.png
  • Icons/__logo__profile__.png

Eta: 1-2 weeks All sizes and variants of GN 333

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 333-28-250-B-EL
d1
28
l ±0.25
250
b1
25
b2
14
b3
50
b4
66
h1
50
h2
66
440
333-28-250-B-EL drawing

Types

  • Type A: Mounting from the back (threaded blind bore)
  • Type B: Mounting from the operator's side (only for d1=28)

Handle tube

Aluminum, wall thickness 1.5 mm

  • Powder coated
  • Black RAL 9005, textured finish SW
  • Handle legs black
  • Anodized, natural color EL
  • Handle legs black
  • Anodized, natural color ES
  • Handle legs silver

Handle legs

Zinc die casting

Powder coated, textured finish

  • Black, RAL 9005 for SW / EL
  • Silver, RAL 9006 for ES

Cover

Plastic, light gray

Cover cap for type B

Plastic

  • Black for SW / EL
  • Light gray for ES

The handle tube of the GN 333 tubular handles can be screwed to the handle bases without further machining or processing, allowing special lengths to be realised easily.

A typical application area for tubular handles GN 333 are double-winged doors at machines or devices.

Further handle legs can be added for very long tubular handles. Individual handle legs for tubular handles Ø 28 (type A) are available under GN 333.8.
