319-AL-40-M10-C DIN 319-AL Aluminium

319-AL-40-M10-C

DIN 319-AL Aluminium

Plastic / Steel / Aluminum / Stainless Steel
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of DIN 319

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
DIN 319-AL-40-M10-C
d1
40
d2
M 10
d4 ≈
22
h ≈
37
t1 min.
18
t2 min.
22
80

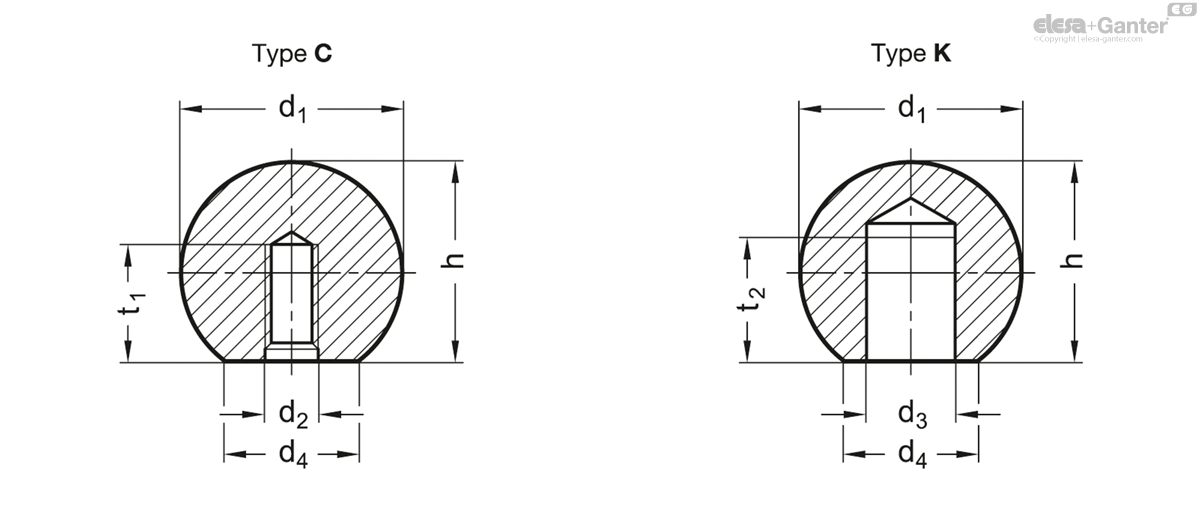

319-AL-40-M10-C drawing

Version in Plastic

Types

  • Type C: With tapped hole (no bushing)
  • Type E: With tapped bushing

Plastic KU

Duroplast (Phenolic PF)

  • Flash removed and polished finish
  • Black (standard color)
  • Red RT, similar RAL 3003: add RT on order code

Bushing (Type E)

  • Steel, zinc plated (standard version)
  • Brass MS add MS on order code (only in black version)

Plastic KT

Technopolymer (Polyamide PA)

  • Shock resistant
  • Black, matte finish (standard color)
  • Red RT, similar RAL 3003: add RT on order code

Bushing (Type E)

Steel, zinc plated

Version in Steel

Types

  • Type C: With tapped hole
  • Type K: With plain hole H7

Steel ST

Polished

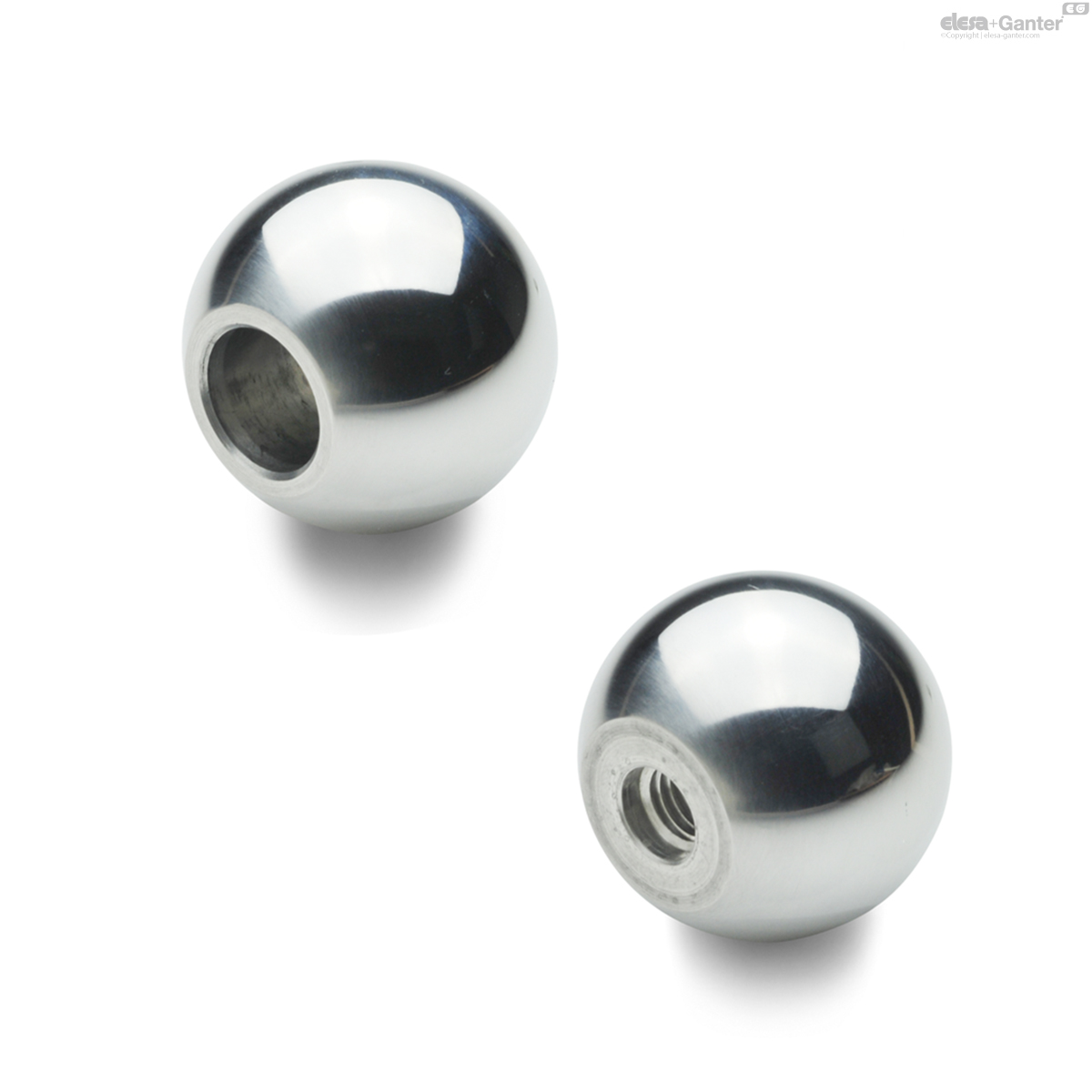

Version in Aluminium

Types

  • Type C: With tapped hole
  • Type K: With plain hole H7

Aluminium AL

Polished

Version in Stainless Steel

Types

  • Type C: With tapped hole
  • Type K: With plain hole H7

Stainless Steel AISI 303 NI

Matte shot-blasted

Version in Plastic (Press on type)

Types

  • Type L: With tolerance ring
  • Type M: With tapered bore

Type L

Plastic KU

Duroplast (Phenolic PF)

Black, shiny finish

Tolerance ring

Spring steel

Type M

Plastic KT

Technopolymer (Polyamide PA)

  • Shock resistant
  • Black, matte finish

When ball knobs DIN 319 (Press on type) type L and M are used the shaft does not require a thread.

During mounting, easy blows with a soft hammer are sufficient to drive the knob into place, the shaft end should be slightly rounded or chamfered (30°).

Before the assembly of the knobs, type L the tolerance ring is to be inserted into the drilling. Further it is to be noted that the button is put on perpendicular and / or axially parallel. Otherwise the knob may break.

Ball knobs, type M are a more economic solution.

Ball knobs DIN 319 in sizes 30 and 35, as well as various thread of type C and ball knobs made of technopolymer (KT) are not on the official DIN standard sheet.

Ball knobs DIN 319 made ​​of steel, aluminum and stainless steel are not on the official DIN standard sheet.

  • Red version
