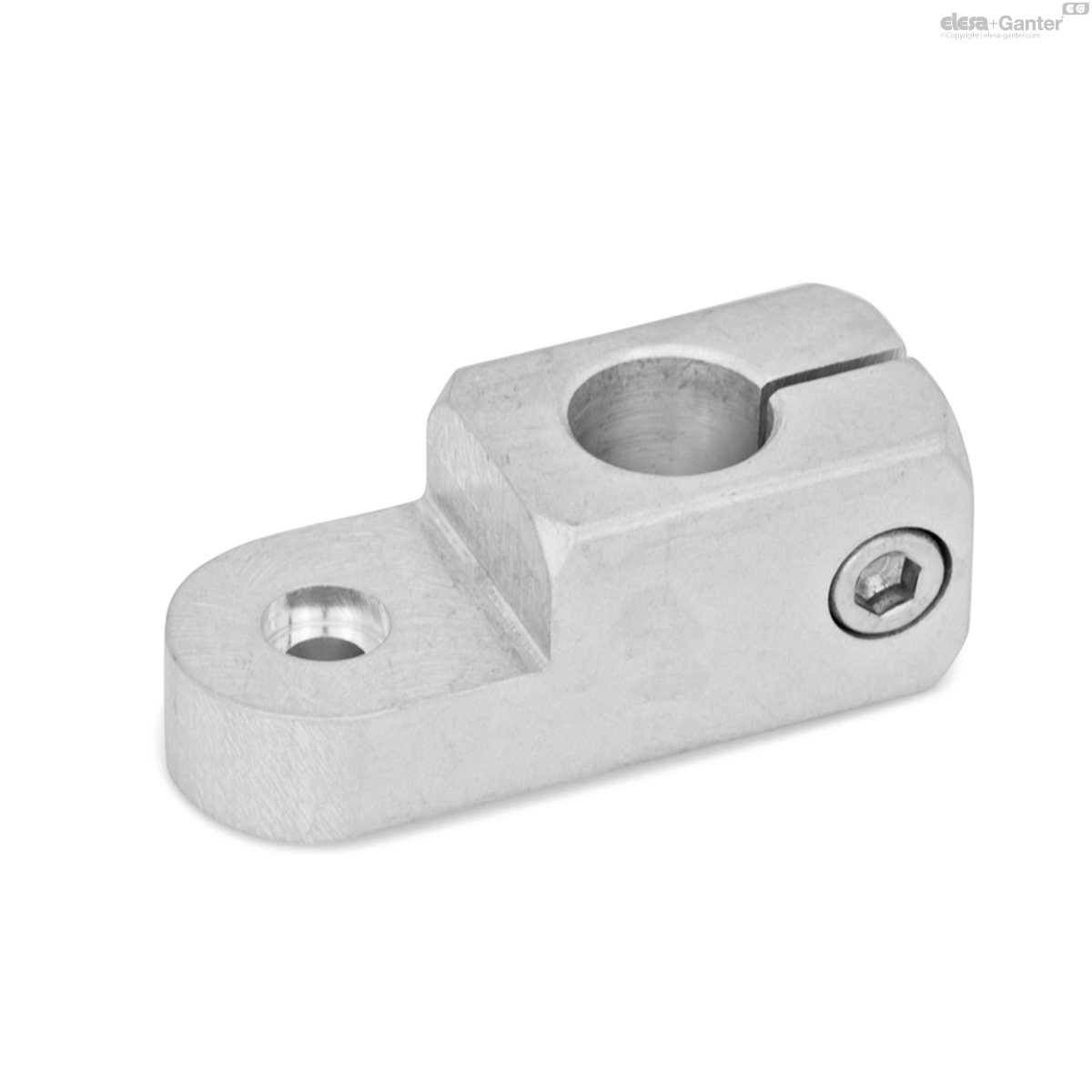

482-B8-16-P-MT GN 482 Swivel clamp mountings

482-B8-16-P-MT

GN 482 Swivel clamp mountings

Aluminium
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 482

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 482-B8-16-P-MT
d1
Bore for shaft tolerance h11
B 8
k
16
d2
7
d3
4.5
d4
M 4
l1
40
l2
32
l3
23
m
18.5
l4
8
Clamping kit for 3 Type S/K
GN 511.1-M4-16-S/K
Clamping kit for d4
GN 511-M4-16
19
482-B8-16-P-MT drawing

Types

  • Type Q: Clamping bore transverse to the swivel axis
  • Type P: Clamping bore parallel to the swivel axis

Aluminium

  • matt, slide ground MT
  • anodized black ELS

Cylinder head screws DIN 912

Stainless Steel AISI 304

Swivel clamp mountings GN 482 can be combined with T-Swivel clamp mountings GN 483 and attachment clamp mountings GN 484with the same k dimensions into swivel clamp mounting joints. Clamping kits GN 511.1 with screw (type S) and adjustable hand lever (type K) are available for this combination.

Also, the clamping screw d4 - which is a cylinder head screw with DIN 912 hexagonal recess in the standard design - can be replaced by a clamping kit  GN 511 .

The description for ordering is shown in the dimensional table.
