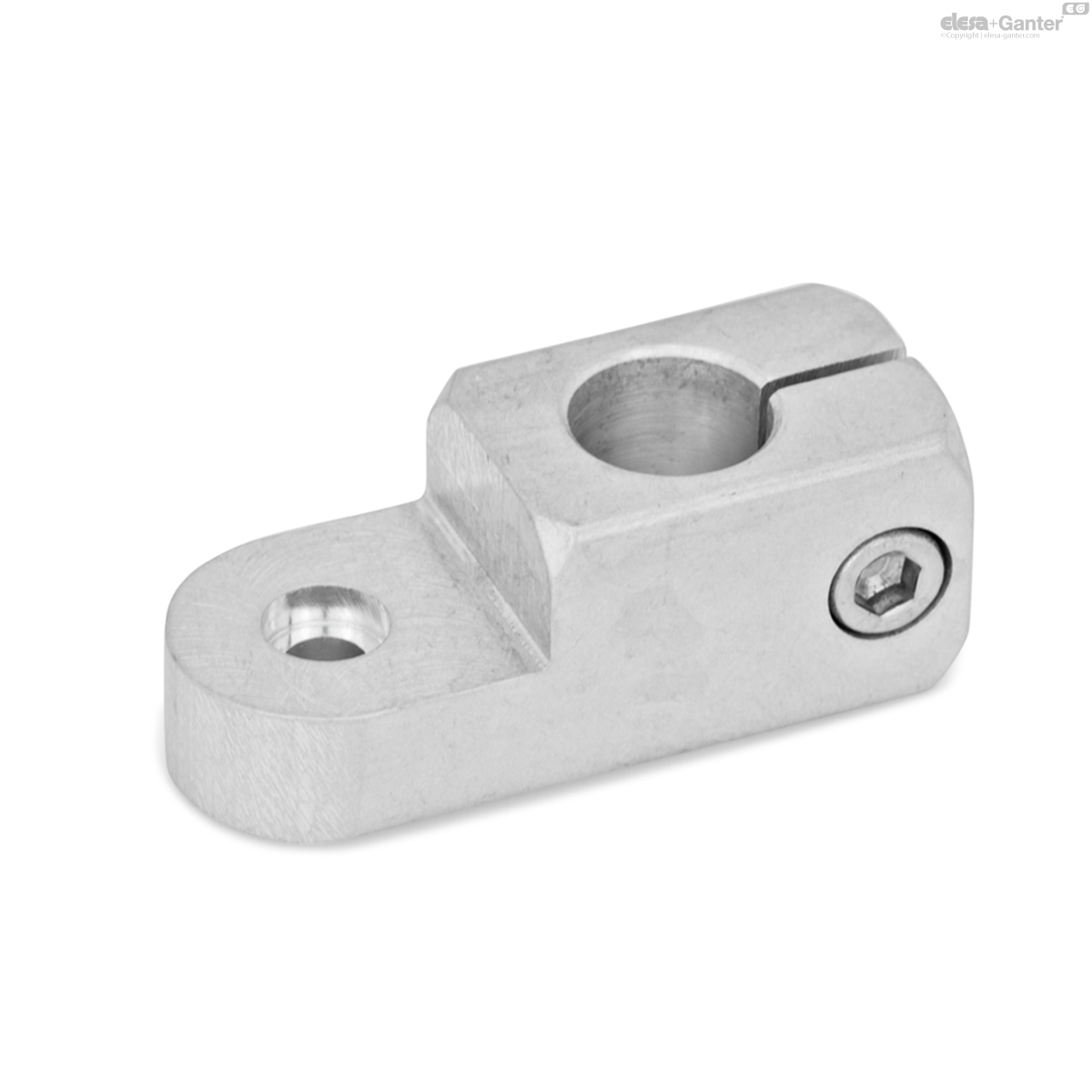

482-B10-20-Q-MT GN 482 Swivel clamp mountings

482-B10-20-Q-MT

GN 482 Swivel clamp mountings

Aluminium
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 482

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 482-B10-20-Q-MT
d1
Bore for shaft tolerance h11
B 10
k
20
d2
8.5
d3
5.5
d4
M 5
l1
50
l2
40
l3
29
m
23
l4
10
s
8
Clamping kit for 3 Type S/K
GN 511.1-M5-20-S/K
Clamping kit for d4
GN 511-M5-20
36
482-B10-20-Q-MT drawing

Types

  • Type Q: Clamping bore transverse to the swivel axis
  • Type P: Clamping bore parallel to the swivel axis

Aluminium

  • matt, slide ground MT
  • anodized black ELS

Cylinder head screws DIN 912

Stainless Steel AISI 304

Swivel clamp mountings GN 482 can be combined with T-Swivel clamp mountings GN 483 and attachment clamp mountings GN 484with the same k dimensions into swivel clamp mounting joints. Clamping kits GN 511.1 with screw (type S) and adjustable hand lever (type K) are available for this combination.

Also, the clamping screw d4 - which is a cylinder head screw with DIN 912 hexagonal recess in the standard design - can be replaced by a clamping kit  GN 511 .

The description for ordering is shown in the dimensional table.
